SOFTWARE ENGINEERING TECHNIQUES
Report on a conference sponsored by the
NATO SCIENCE COMMITTEE
Rome, Italy, 27th to 31st October 1969
Chairman: Professor P. Ercoli
Co-chairman: Professor Dr. F. L. Bauer
Editors: J. N.Buxton and B. Randell
April 1970 The present report is available from:
Scientic Affairs Division
NATO
Brussels 39
Belgium
Publishers:
NATO Science Committee
Printed in England at The Kynoch Press, Birmingham
Note for the current edition: The version of this report that you are reading was prepared by scan-
ning the original edition, conversion to text through OCR, and then reformatting. Every effort has
been made to do this as accurately as possible. However, it is almost certain that some errors have
crept in despite best efforts. One of the problems was that the OCR software used kept trying to
convert the original British spellings of words like ‘realise’ to the American spelling ‘realize’ and
made other stupid mistakes. Whenever the OCR program was unsure of a reading, it called it to
the attention of the operator, but there were a number of occasions in which it was sure, but wrong.
Not all of these instances are guaranteed to have been caught.
Although the editor tried to conform to the original presentation, certain changes were necessary,
such as pagination. In order that the original Table of Contents and Indices would not have to be
recalculated, an artifice was used. In the PDF version, the original page breaks are indicated in the
text thusly: 49 indicates that this is the point at which page 49 began in the original edition. If
two such indicators appear together, this shows that there was a blank page in the original.
The figures have been redrawn to improve legibility. The original size and scale was not changed.
In order to accommodate the new pagination, the figures may have been shifted slightly from their
position in the original document.
Finally, it should be noted that the effort required to produce the current edition was a tiny fraction
of the effort required for the original. The current editor therefore wants to express his apprecia-
tion to the original editors, John Buxton and Brian Randell, for producing this second volume of
NATO Conference Reports.
Robert M. McClure
Arizona 2001 CONTENTS
Preface .................................................................... 5
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
1 Theory and practice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
2 Software specification . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
2.1 SOFTWARE SPECIFICATION LANGUAGES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
2.2 SOFTWARE IMPLEMENTATION LANGUAGES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
3 Software quality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
3.1 CORRECTNESS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
3.1.1 Formal correctness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
3.1.2 Debugging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
3.1.2.1 On classical techniques . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
3.1.2.2 On on-line and off-line techniques . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
3.1.2.3 On automatic analysis methods . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25
3.2 PERFORMANCE MEASUREMENT AND IMPROVEMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
4 Software flexibility . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
4.1 PORTABILITY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
4.1.1 Denitions of the problem area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
4.1.2 Description of techniques . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
4.1.2.1 High level language support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
4.1.2.2 Bootstrap from the old system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
4.1.3 Summary of techniques . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29
4.1.4 On portability of data . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
4.1.5 On design for portability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
4.1.6 On writing portable software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
4.1.7 On effectiveness of portability in practice . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
4.1.8 On transfer of knowhow . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 33
4.2 ADAPTABILITY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 34
5 Large systems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
5.1 CASE HISTORIES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
5.1.1 A survey . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
5.1.2 Apollo programming support . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 43
5.1.3 The electronic switching system . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48
5.1.4 The “super programmer project” . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 50
5.2 THE SOURCES OF PROBLEMS IN LARGE SYSTEMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
5.3 SUPPORT SOFTWARE FOR LARGE SYSTEMS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 53
6 Software engineering education . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 61
7 Working papers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
7.1 LIST OF WORKING PAPERS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67
7.2 J. D. Aron: Estimating resources for large programming Systems . . . . . . . . . . . . . . . . . . . . . 68

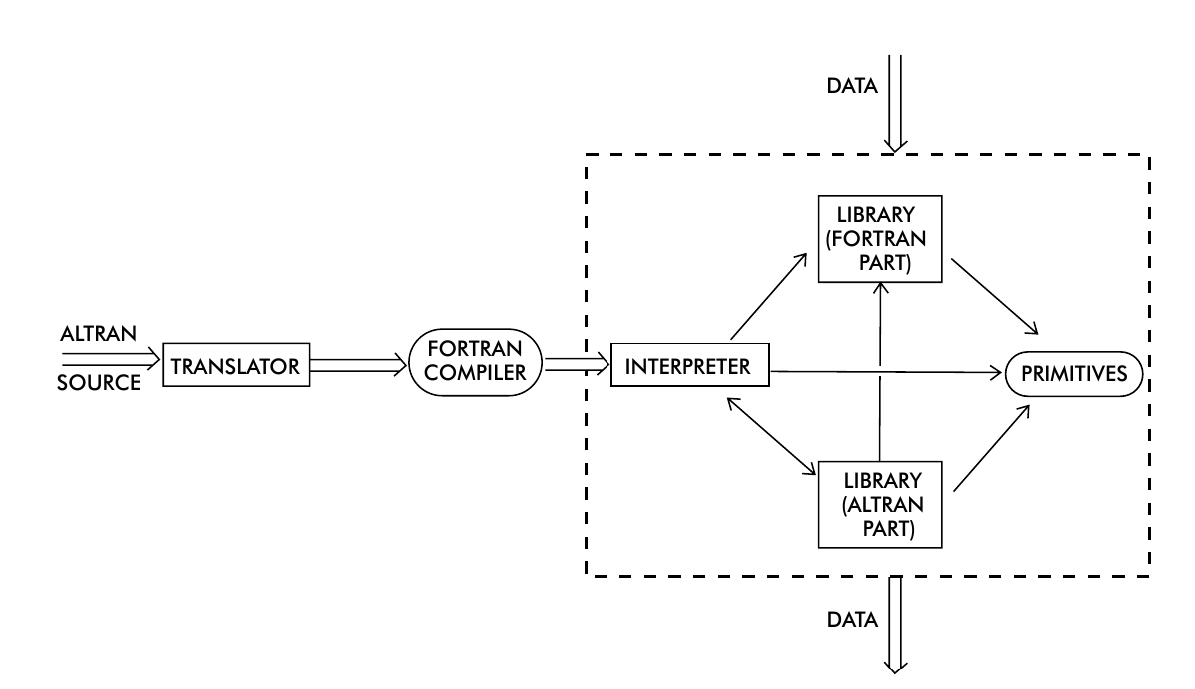

7.3 W. S. Brown: Software portability . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80
7.4 E. W. Dijkstra: Structured programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
7.5 A. D. Falkoff: Criteria for a system design language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88

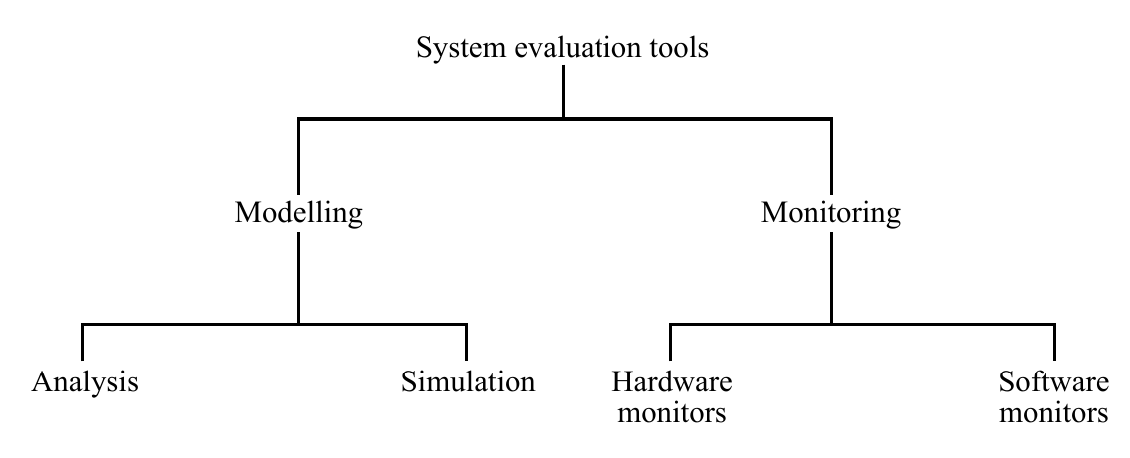

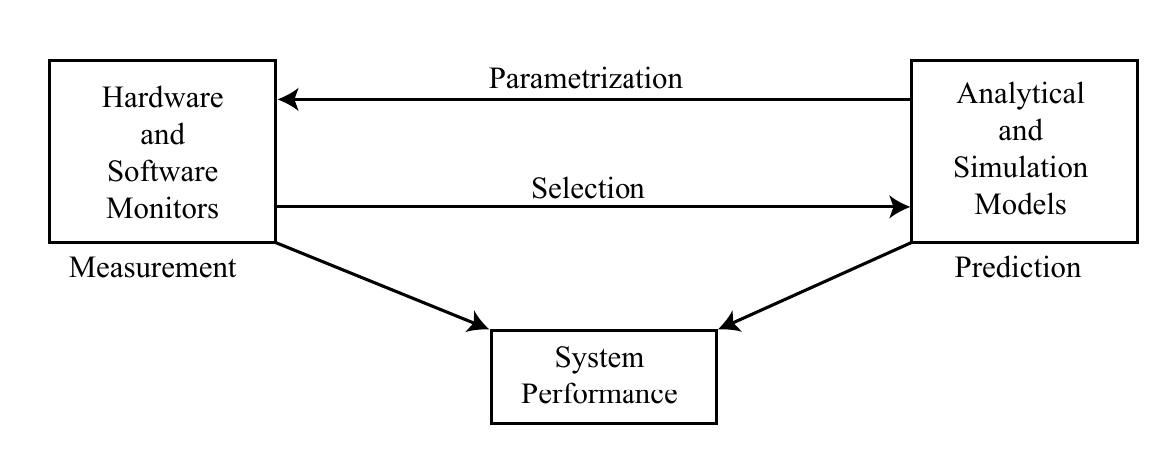

7.6 C. C. Gotlieb and G. H. McEwen: System evaluation tools . . . . . . . . . . . . . . . . . . . . . . . . . . 93
7.7 M. E. Hopkins: Computer aided software design . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
7.8 C. A. Lang: Languages for writing system programs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101

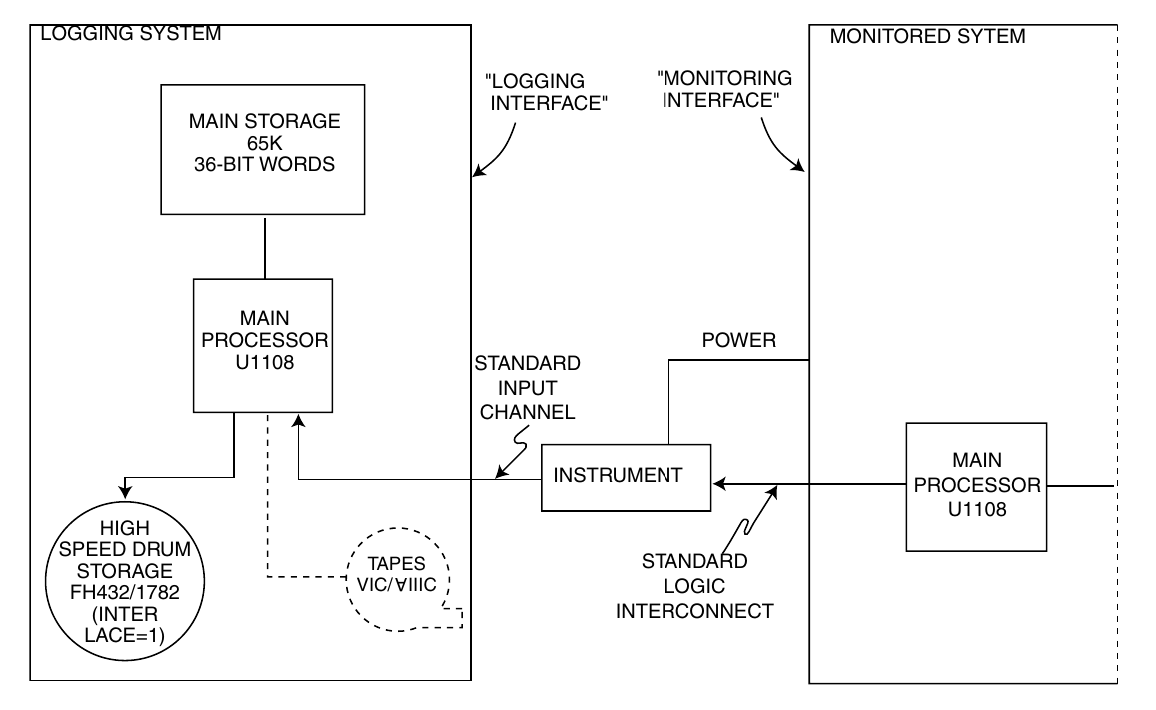

7.9 J. M. MacGowan, Jr..: UNIVAC 1108 instrumentation . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1064 CONTENTS
7.10 R. M. Needham: Software engineering techniques and operating system
design and production . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 111
7.11 R. M. Needham and J. D. Aron: Software engineering and computer
science . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
7.12 H. Schorr: Compiler writing techniques and problems . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
7.13 J. I. Schwartz: Analyzing large-scale system development . . . . . . . . . . . . . . . . . . . . . . . . . . 122
7.14 W. Teitelman: Toward a programming laboratory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137
7.15 W. Ulrich: Design of high reliability continuous operation systems . . . . . . . . . . . . . . . . . . . 149
Appendix 1 List of participants . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 164
Appendix 2 Addresses of welcome . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 159
Contributor Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 160
Subject Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161
NATO SOFTWARE ENGINEERING CONFERENCE 1969 PREFACE
A working conference on software engineering techniques, sponsored by the NATO Science Committee, was held
from the 27th to 31st October 1969, near Rome, Italy. The conference was intended as a direct sequel to the NATO
conference on software engineering held at Garmisch, Germany, from 7th to 11th October 1968. About sixty people
from eleven countries attended the meeting. A list of participants is provided in Appendix 1.
This report summarizes the discussions held at the conference and includes a selection from the more than 50 working
papers prepared by the conference participants. The report has been prepared in much the same manner as was used
for the report of the Garmisch conference, and which is described in the preface to that report.
Material from the working papers and from transcribed and edited discussions has been combined under specific head-
ings into sections 1 to 6 of this report. Lengthy working papers that have been selected for the report are reproduced
in section 7.
Two sessions at the conference, on the subject of the NATO Science Committee proposals for an International Institute
for Software Engineering, which were in the main nontechnical, have not been covered in this report.
The similarities of the structure of this report to that of its predecessor are to a certain extent superficial, owing to the
fact that the Rome conference turned out to be rather different in form from the Garmisch conference. The reasons
for this, and the effect that they have had on the report are discussed in the introduction. The opinions expressed in
the introduction are entirely the responsibility of the editors. In the rest of the report the editors have endeavoured to
restrict their role to that of selection and classification of material.
As with the Garmisch report, readers should keep in mind the fact that all those present at the meeting expressed their
views as individuals and in no sense as representatives of the organizations with which they are affiliated.
The actual work on the report was a joint undertaking by several people. The large amounts of typing and other office
chores were done by Miss Margaret Chamberlin and Miss Ann Laybourn. During the conference notes were taken by
Rod Ellis and Ian Hugo, who also operated the tape recorders, and by John Buxton and Brian Randell. The reviewing
and sorting of material for the report, and the final write-up were done by John Buxton and Brian Randell assisted
by Rod Ellis and Ian Hugo. The final version of the report was prepared by The Kynoch Press, using their computer
typesetting system (see Cox, N. S. M. and Heath, W. A.: ‘The integration of the publishing process with computer
manipulated data’. Paper presented to the Seminar on Automated Publishing Systems, 7–13th September 1969, Uni-
versity of Newcastle upon Tyne, Computer Typesetting Research Project), the preliminary text processing being done
using the Newcastle File Handling System (see the paper by Cox and Dews in: Cox, N. S. M. and Grose, M. W.
(editors): ‘Organization and handling of bibliographic records by computer’, 1967, Newcastle upon Tyne, Oriel Press
Ltd.). Keypunching of the text and the composition control codes was done by Ron White of The Kynoch Press as part
of a study undertaken with the support of the National Graphical Association. The computer time was 6 gener-
ously provided by Professor E. S. Page, Director of the Computing Laboratory of the University of Newcastle upon
Tyne. During the conference photocopying equipment was provided by the Dupleco Company.
One quotation from the discussion during the closing section of the conference seems appropriate to end this preface.
Randell: Writing this sort of report is like building a big software system. When you’ve done one you think you know
all the answers and when you start another you realize you don’t even know all the questions.
John Buxton
Brian Randell 7
INTRODUCTION
The Rome conference on software engineering techniques was intended as a direct sequel to the conference on soft-
ware engineering held in Garmisch, Germany, 7th to 11th October 1968. The Rome conference took on a form rather
different from that of the conference in Garmisch and hence the resemblance between this report and its predecessor
is somewhat superficial. The role played by the editors has changed and this change deserves explanation.
The Garmisch conference was notable for the range of interests and experience represented amongst its participants.
In fact the complete spectrum, from the inhabitants of ivory-towered academe to people who were right on the firing-
line, being involved in the direction of really large scale software projects, was well covered. The vast majority of these
participants found commonality in a widespread belief as to the extent and seriousness of the problems facing the area
of human endeavour which has, perhaps somewhat prematurely, been called “software engineering”. This enabled a
very productive series of discussions, in both plenary and informal parallel sessions, to take place. During these the
goal was to identify, classify, and discuss the problems, both technical and managerial, which face the various differ-
ent classes of software projects, up to and including the type of projects which can only be measured in man-millenia.
Also, the fact that the goal of the conference was to produce a report was always kept in mind. As a result, at the end
of the conference, the editors (Peter Naur and Brian Randell), had a comparatively clear idea of what the conference
participants hoped for from the report and a detailed initial draft of the structure that the report should have. The role
of the editors could therefore be largely restricted to that of selecting and classifying statements made by participants
in working papers or at the conference.
The intent of the organizers of the Rome conference was that it should be devoted to a more detailed study of technical
problems, rather than including also the managerial problems which figured so largely at Garmisch. However, once
again, a deliberate and successful attempt was made to attract an equally wide range of participants. The resulting
conference bore little resemblance to its predecessor. The sense of urgency in the face of common problems was not
so apparent as at Garmisch. Instead, a lack of communication between different sections of the participants became,
in the editors’ opinions at least, a dominant feature. Eventually the seriousness of this communication gap, and the
realization that it was but a reflection of the situation in the real world, caused the gap itself to become a major topic
of discussion. Just as the realization of the full magnitude of the software crisis was the main outcome of the meeting
at Garmisch, it seems to the editors that the realization of the significance and extent of the communication gap is the
most important outcome of the Rome conference.
In view of these happenings, it is hardly surprising that the editors received no clear brief from the conference as to the
structure and content of the report. It seemed to us that the most useful discussions centered around specific problem
areas in need of solution rather than specific techniques in search of problem areas. We have therefore structured the
report accordingly.
8
The problem areas into which we have classified the material are clearly neither all of the same importance, nor at
similar states of development, nor even completely independent of each other. Rather, they constitute, in our opinion,
a convenient classification of the discussions and the working material submitted.
Some of the material presented either in working papers or in discussion related directly to areas of the subject that
were extensively discussed at Garmisch, such as various managerial and organizational problems. In general this mate-
rial has not been included unless, in our view, it has substantially extended or thrown new light upon these areas.
Furthermore much working material concerned subjects which were not discussed at the conference. In the absence
of the guidance which such discussions would have given us, we chose in general not to include such material in this
report. The material submitted by the editors themselves was in fact rejected on these grounds. 9
1 THEORY AND PRACTICE
Most of the material in this section is collected from a discussion which was held on the last day of the conference
after many people had expressed the need for the conference to talk about, rather than just suffer from, the effects
of the communication gap.
Strachey: I want to talk about the relationship between theory and practice. This has been, to my mind, one of the
unspoken underlying themes of this meeting and has not been properly ventilated. I have heard with great inter-
est the descriptions of the very large program management schemes, and the programs that have been written
using these; and also I heard a view expressed last night that the people who were doing this felt that they
were invited here like a lot of monkeys to be looked at by the theoreticians. I have also heard people from
the more theoretical side who felt that they were equally isolated; they were here but not being allowed to say
anything. We have seen a document by Aron and Needham essentially about “Can computing science be of any
assistance to software engineering, or what can software engineering get out of computing science?” (see sec-
tion 7.11—Eds.) One can also ask the question the other way round: “What can computing science get out of
software engineering?”
This sort of debating point is not helpful. The truth of the matter is that we tend to look with doubt and suspicion
at the other side; whichever side of that particular barrier we are. On one side we say “Well, there’s nothing we
can get out of computing science: look at all this rubbish they are talking”. Or we stand on the other side and
look at the very large programs and we say “Goodness me; what rotten techniques they use and look: they all
fail!”
One of the most interesting things that has been shown at this conference is that these projects don’t all fail.
It has been shown that some of them have been quite astonishingly successful. I think we ought to remember
somebody or other’s law, which amounts to the fact that 95 per cent of everything is rubbish. You shouldn’t judge
the contributions of computing science to software engineering on the 95 per cent of computing science which
is rubbish. You shouldn’t judge software engineering, from the high altitude of pure theory, on the 95 per cent
of software engineering which is also rubbish. Let’s try and look at the good things from the other side and see
if we can’t in fact make a little bridge. Let’s see what the real difficulties are and whether we can do something
to assist.
It seems to me that one of the difficulties about computing science at the moment is that it can’t demonstrate any
of the things that it has in mind; it can’t demonstrate to the software engineering people on a sufficiently large
scale that what it is doing is of interest or importance to them. Take a very simple example with which I think
almost everybody in the small scale and more abstract way of thinking about programming would agree; that to
use recursive methods is undoubtedly an assistance. No self respecting programmer would dream of program-
ming in a language without recursion. Every large-scale complicated problem (and by large-scale, in this case, I
mean something that one person can do) is greatly aided by the use of recursive methods; I think there is no ques-
tion whatsoever that this is true 10 and it has been amply demonstrated by all sorts of individual program-
ming efforts. Now so far as I know recursive programming is not used in general in any large-scale software
system, with a few exceptions such as the Burroughs people. In fact the statement seems to be completely true
about all really large systems. They use methods which do not allow them to use recursion; I think the real
reason for this is that they haven’t thought seriously of doing it. They’ve been told to do it and they brush it away
apparently because it hasn’t got the right sort of software support or because their machine doesn’t do it easily
or because they don’t know about it. How can we convince people who are dealing with hundreds of program-
mers and millions of instructions that something as radical as changing the basic core of the way in which they
program is a good thing to do?
Clearly you can’t expect anybody to change a very large project completely in a direction like that merely
because you say it’s a good idea. This is obviously nonsense. On the other hand it’s equally impractical to ask
a university department or even a technical institution to mount a demonstration project of 500 man years; they
haven’t got the money and they wouldn’t know how to manage it anyhow. They have no managerial capabilities.8
Incidentally, we all know that many of the operating systems and specialist compilers and things that are written
in universities appear to be written with very little effort and in very little time compared with some of the com-
mercial ones. It is very important to realize that the result is still an amateur affair; it is not documented, it is not
maintained, it is not maintainable and when the man who wrote it goes away, it collapses. There is a very great
deal of difference between the amateur work which is done in the university and the professional work which is
done by people who have very large-scale things to do and have commercial responsibilities.
We need something in the way of a proving ground, halfway between the very large projects which must rely
on things that the managers already know how to use, and the more advanced techniques which we’re quite sure
are all right on a small scale but which we still have to develop on a somewhat larger scale. We need as it were
a pilot plant and until we can do something like this we shall not be able to introduce into software engineer-
ing the speed of development change which is necessary for it to keep up with the extremely rapidly develop-
ing theoretical advances in the subject. I don’t know how this ought to be done; a development pilot plant is
an expensive operation and cannot be done by universities alone. It could be done, I think, by a co-operative
effort between the manufacturers, who have the financial resources and the interest in very large systems, and
the research institutions. It does require a pilot plant which has to construct a really fairly sizeable thing; a one
man exercise redoing a job in a quarter of the time or tenth of the time or whatever is not good enough. You must
build a reasonably sized system where management problems will arise and can be demonstrated to be soluble
and where new techniques can be used by managers. You must have at least part of the real difficulty of the big
problems.
The thing that saddens me about the present situation is that there’s not much sign that the large engineering set-
ups have yet been able to change their basic techniques. They can change the peripheral stuff, the editing and
the documentation and things like this, but so far they haven’t changed the central core of what they are doing:
that is to say, the actual programming techniques. Right in the middle it is still, as somebody said the other day,
classical programming and classical mistakes. FORTRAN was a very good language when it started but that was
a long time ago; it’s at least half the 11 lifetime of this subject ago, and that is a long time. If in any other
kind of engineering you used techniques that were half the life time of the subject old, you would be very much
out of date.
Now I want to preach to people on the other side. It seems to me that the academics have been disgracefully
arrogant in neglecting and denying the existence of large problems. For years and years they refused to admit
that commercial data processing was a subject which had any intellectual interest at all. It was expressed in
horrible language: COBOL is, as most people would agree, a horrible language; it leads to dreadful things like
saying DIVIDE CAKE INTO 3 which means you get “three over the cake” and not “the cake over three”. In
fact commercial data processing had and still has very interesting problems about data structuring, which it had
to deal with and started dealing with long before the academic side of programming would have anything to do
with it. None of the early academic programming languages have data structures. The reason is that the academ-
ics just could not be bothered to look at this large, important area.
I think the same thing is true about very large, complicated programs; it seems to be quite clear that the large
software engineering exercises introduce new and important ideas which we must acknowledge. For instance,
how are we going to organize programs intellectually, which are so large that they can’t be comprehended by
one man? This is a very important problem. It’s clear to me, or at least I think it’s clear to me, that the only
hope of doing this is by arranging these very large programs in hierarchical ways. It’s extremely important that
we should begin on the theoretical task of trying to understand how to mould messy, difficult and inconvenient
objects into hierarchical structures. Another principle that comes from study of large engineering projects is
that a great deal of the effort must be spent in dealing with malfunctions of some sort: program malfunctions,
machine malfunctions or operator malfunctions.
These are things that are awkward to get into an elegant mathematical framework. Nevertheless we must some-
how or other form a conceptual framework in which we can talk about these things in a clean and comprehen-
sible way. I think we’ve got a lot to learn here; I don’t know how to do it, I’m just beginning to think about it
and I think it’s very exciting.
Aron: Part of the gap that has been mentioned here between computer science and software engineering is the recog-
nition that many software engineering projects start and proceed without the planned utilization of scientific
NATO SOFTWARE ENGINEERING CONFERENCE 1969 9
methods. The fact is that if we look back we can see that many things were done wrong, but they were done
wrong by people who thought they were doing the right thing.
Ross: What does a manager look for in a technique before he adopts it?
Aron: If he is engaged in an operational rather than an experimental project, he will insist that the technique is thor-
oughly tested; it must be shown to be reliable and shown to have performance parameters that are suitable. He
acts on his own experience. He will adopt what you tell him only to the extent that you can demonstrate it to
him.
Needham: How big does a project have to be to be a useful pilot project? It clearly can’t be 500 men for five years;
that’s not a pilot project, it’s a project. It clearly isn’t a matter of one man for one year, because this is precisely
what we say isn’t good enough. Can we say what kind or size of pilot project, which would be done according
to the best principles that 12 computer scientists could devise, would look in some way acceptable to people
who are in the really large-scale business, and would stand a chance of being imitated or developed? If we had
some answer we might be able to go away and do such a pilot project.
Feldman: MULTICS!
Ulrich: What is the difference between a pilot project, and an actual project?
Galler: One important difference is that there be no predetermined time limit specified by marketing people.
During the discussion a rather different analysis of the situation was proposed by Sharp.
Sharp: I think that we have something in addition to software engineering: something that we have talked about in
small ways but which should be brought out into the open and have attention focused on it. This is the subject
of software architecture. Architecture is different from engineering.
As an example of what I mean, take a look at OS/360. Parts of OS/360 are extremely well coded. Parts of OS, if
you go into it in detail, have used all the techniques and all the ideas which we have agreed are good program-
ming practice. The reason that OS is an amorphous lump of program is that it had no architect. Its design was
delegated to a series of groups of engineers, each of whom had to invent their own architecture. And when these
lumps were nailed together they did not produce a smooth and beautiful piece of software.
I believe that a lot of what we construe as being theory and practice is in fact architecture and engineering; you
can have theoretical or practical architects: you can have theoretical or practical engineers. I don’t believe for
instance that the majority of what Dijkstra does is theory—I believe that in time we will probably refer to the
“Dijkstra School of Architecture”.
What happens is that specifications of software are regarded as functional specifications. We only talk about
what it is we want the program to do. It is my belief that anybody who is responsible for the implementation of a
piece of software must specify more than this. He must specify the design, the form; and within that framework
programmers or engineers must create something. No engineer or programmer, no programming tools, are going
to help us, or help the software business, to make up for a lousy design. Control, management, education and all
the other goodies that we have talked about are important; but the implementation people must understand what
the architect had in mind.
Probably a lot of people have experience of seeing good software, an individual piece of software which is good.
And if you examine why it is good, you will probably find that the designer, who may or may not have been the
implementer as well, fully understood what he wanted to do and he created the shape. Some of the people who
can create shape can’t implement and the reverse is equally true. The trouble is that in industry, particularly in
the large manufacturing empires, little or no regard is being paid to architecture.
NATO SOFTWARE ENGINEERING CONFERENCE 196910
An alternative to the “pilot project” proposal was put forward d by David.
David: It has been suggested that demonstration systems or systems 13 experiments are a good approach to solving
the problems of large systems. But in many instances, I think, just the sheer size and cost of a demonstration
and the difculty of measurement and of generalization of the results prevents a convincing demonstration; it
certainly prevents the conduct of a properly controlled experiment in many cases.
Another possibility for aiding technology transfer lies in studying in detail actual ongoing production efforts. I
think a great deal of information on the influence of new methods on production can be gained by a bona fide
analysis of project performance. A combination of that kind of hard information with selected experiments and
demonstrations might be much more effective than either alone.
There is a great deal of uncertainty about the influence of new production techniques on cost, manpower and
time, etc. This uncertainty, I think, rests on a profound lack of evidence and hard data about real cases. Tech-
niques which are said to be the same succeed in some cases and they fail in others. That’s no surprise to anybody
but the crucial factors which actually contribute to the success or failure have not been successfully identified.
They certainly have not been established quantitatively, even approximately. It is clear too, that many factors are
involved in success and failure: many more than the discussions at various meetings or post-mortem papers after
the end of a project would seem to imply.
Dijkstra I would like to comment on the distinction that has been made between practical and theoretical people. I
must stress that I feel this distinction to be obsolete, worn out, inadequate and fruitless. It is just no good, if you
want to do anything reasonable, to think that you can work with such simple notions. Its inadequacy, amongst
other things, is shown by the fact that I absolutely refuse to regard myself as either impractical or not theoreti-
cal.
David expressed the idea that “We can make case studies in industry, and then you can study the results. You
can do these analyses.” A probable effect of the distinction is that if such a study is made, the output of it can be
regarded as theory and therefore ignored. What is actually happening, I am afraid, is that we all tell each other
and ourselves that software engineering techniques should be improved considerably, because there is a crisis.
But there are a few boundary conditions which apparently have to be satisfied. I will list them for you:
1 We may not change our thinking habits.
2 We may not change our programming tools.
3 We may not change our hardware.
4 We may not change our tasks.
5 We may not change the organizational set-up in which the work has to be done.
Now under these five immutable boundary conditions, we have to try to improve matters. This is utterly ridicu-
lous. Thank you. (Applause)
Randell: There is a well known English saying, which is relevant to this discussion about pilot projects. The saying is
as follows: “There’s none so blind as them that won’t see”. A pilot project will never be convincing to somebody
who doesn’t want to be convinced. A problem out in the real world will never be a problem to a theoretician who
doesn’t want to look at it. Blindness goes both ways. If you have people who are completely stuck in their own
ways, whether these are ways of running large projects without regard for possible new techniques, or whether
these are ways of concentrating all research into areas of ever smaller relevance or 14 importance, almost no
technique that I know of is going to get these two types of people to communicate. A pilot project will just be
something stuck in between them. It will be a Panmunjon with no way to it, from either side. You have to have
good will. You have to have means for people to find out that what the others talk is occasionally sense. This
conference may occasionally have done a little bit of that. I wish it had done a lot more. It has indicated what a
terrible gulf we so stupidly have made for ourselves.
NATO SOFTWARE ENGINEERING CONFERENCE 1969 11
15
2 SOFTWARE SPECIFICATION
The various problems concerned with obtaining a specication of a system, which would serve as the foundation
of the subsequent system implementation, were debated at length. Much of the discussion arose in response to the
following short working paper:
Seegmüller: (from “Definition of systems”) “The following is a brief description of possible steps in which the defini-
tion of a system and the specification of an implementation of it might be achieved.
By a ‘system’ we understand a mechanism that is able to execute all of the functions given by its external inter-
face.
1 Irrespective of hardware considerations, write in an informal way a list of all of the desired external func-
tions and objects.
2 Put down performance limits for these functions.
3 Make a first guess whether there is a ‘support system’ (hardware or software system) which is likely to be
capable of meeting the requirements listed under 1 and 2. If the answer is no, then redesign under 1 and/or
2 or build a new support system.
4 Describe in an informal way an abstract machine (representing the system) which accepts invocations of
all functions listed under 1 and can handle representations of the objects listed under 1. If the result is
unsatisfactory, then go to 1.
5 Formalize the description of the abstract machine (e.g. by means of the Vienna definition method), remove
possible contradictions and minimize the complexity of the abstract machine during this step. If the result
is unsatisfactory, then go to 4.
6 Use a software specification language (SSL) in order to define a first breakdown of the implementation of
the abstract machine into program modules. Put down performance and size limits on these modules.
7 Use the resulting SSL statements in order to simulate the behaviour of these modules under the assump-
tion of certain workload and support system characteristics. If the result is unsatisfactory, then redesign
under 6 and repeat 7.
8 Refine the breakdown into modules.
9 Simulate the behaviour. If satisfactory, then go to 11.
10 Change the refinement. Go to 9.
11 If the level of detail is unsatisfactory, then go to 8.
12 Take the last refinement as implementation specification.”
Engeli: I think that this outline works well for small systems, where it is essentially unnecessary, but does not work,
other than in exceptional cases, for large systems.
Oestreicher: No matter how precisely you try to specify a system, once you have built it you find it isn’t exactly what
is wanted. In real life, an outline like Seegmüller’s must contain at all stages the possibility of returning to step
1.
Scalzi: My experience is with OS/360, and I agree with the criticisms of Seegmüller’s implication that one must obtain
a fully defined specification 16 before starting implementation. We have been building a growing system
since 1966. By denition our design requirements are open-ended and our goal is to maintain a compatible
interface to the user over a period of years.
NATO SOFTWARE ENGINEERING CONFERENCE 196912 2.1 SOFTWARE SPECIFICATION LANGUAGES
The discussion was in fact quite lengthy and tended in part to duplicate what had been said at Garmisch. However,
several extended comments, describing experience of large system projects were made and are reported in section
5. There was much interesting discussion on the requirements of languages that could be used for specifying and/or
implementing systems; this is reported below.
2.1 Software specification languages
The rst discussion concerned the question of whether there need be a difference between languages used for
specifying and for implementing software.
Seegmüller: I assume that a software specification language must be different from one that is suitable for implementa-
tion. I think that the Vienna Method is a most promising technique for formally specifying what the external
behaviour is to be. It has been used so far for giving a formal definition of several programming languages, but
there are now some attempts under way to apply it to operating systems.
Lowry: I think a major reason for a divergence between languages for these two purposes is the lack of sufficiently
powerful optimization techniques.
Lucas: There is an important difference between a fully executable specification of a system and what we have done at
Vienna. For example, the state of our abstract PL/1 machine has to be indeterminate where PL/1 does not specify
a meaning to an action, or specifies only constraints. The axiomatic part of our scheme is an important part, and
it is just not executable in any traditional sense.
Feldman: (from “Towards automatic programming”) “The first problem one faces when trying to automate the writ-
ing of programs is this: how is one to say what is required without writing some kind of program? Workers
in Artificial Intelligence have long faced this problem of process description and state descriptions. A state
description for the function square root (Z) might be:
The X such that X×X=Z
A process description for the same function might be an ALGOL program to carry out Newton’s method for the
solution. The state description above is much simpler than any process description, though this is not always the
case. It is easier to describe how to take the derivative of a polynomial than to specify a set of properties that a
derivative must have. Similarly, the syntax of a programming language is given more clearly by a grammar than
by a set of conditions for wellformedness.”
A different viewpoint was expressed by Falkoff, who thought that there was basically room for two languages: one
being English or some other natural language and the other being a formal programming language. A paper by
Falkoff on this subject, using examples from APL, is reproduced in section 7.5.
17
Perlis: In the past several years I have had periodic contacts lain with the APL people and I find that they are very
much like both ardent Catholics and communists in that, when they get to certain topics, all discussions must
be in their framework, otherwise no contact can be made. I wish to expose this as a virtue and not as a vice.
There are several reasons why a COBOL compiler can be written in six months using APL as a specification
language, as described by Ian Sharp. There is of course the fact that the APL primitives are very rich. However,
there is something deeper than that, which is very important for software engineering. The APL people see all
programming activities in terms of APL. When you talk about a table, they think in terms of APL algorithms
for accessing and maintaining a table. Life is greatly simplified for them by virtue of the fact that all program-
ming questions are recast into the framework of a language that they can carry around in their skulls. I have also
observed this in the past with LISP programmers and it has been very important for them.
NATO SOFTWARE ENGINEERING CONFERENCE 1969 2.2 SOFTWARE IMPLEMENTATION LANGUAGES 13
Falkoff: What Perlis was saying is in part that, since we have finite skulls, we have to have reasonably concise repre-
sentations of processes.
A related subject, which was never discussed at length but which was briey referred to many times during the
conference, concerned the interrelationships between program and data.
Schwartz: In my experience on large systems, we have pictured the systems as a flow of data. On these projects we
have people whose sole job is to develop and to change and re-do table specifications. Wherever possible we try
to have programming languages which divorce the data definition from the actual procedures. That happened to
be the philosophy behind JOVIAL, which has been used for some number of these systems. Experimenting with
the data flow specification forces an understanding as to what is going on in a system.
Randell: I am reluctant to draw a definite line between the concepts of program and data. One of the nice things about
SIMULA is that the concept of process definition in some sense includes, as special cases, procedure and data
structure definitions.
Further discussion related to this topic, but primarily concerning questions of program portability, is given in sec-
tion 4.1.4. A working paper by Hopkins which is concerned with the central part played by data ow and table
structures in determining system performance is given in full in section 7. 7.
2.2 Software implementation languages
Not surprisingly, there was a certain amount of discussion on programming languages at the conference.
Wirth: It might be thought quite remarkable what proportion of the submitted working material was on the subject of
programming language development, although the conference is on software engineering. But in fact languages
form our thinking habits and, are our daily tools, and I think it is fair to say that many of the problems plaguing
the world of software are more or less directly attributable to the rather poor present state of language develop-
ment.
18
One of the major points of discussion was the relationship between efciency and naturalness of expression permit-
ted by a programming language.
Wirth: The main objection to languages which are as distant from the actual computer hardware as the Galler and
Perlis proposals, or APL, is that they are usually not very efficient. At the other end of the spectrum there are
languages which reflect properties of the machine, so that you can get very efficient programs. I have produced
languages belonging to each end of the spectrum. In the distant past I produced EULER, which proved to be
an interesting academic exercise, and more recently, PL/360, which is nowadays quite widely used. Now if we
are to talk about software engineering, we should talk about languages which have relevance to the reality of
practical system development. A good engineering approach is to find a compromise which is as close to the
machine as possible, while remaining machine independent.
Dijkstra: I would like to make a comment on Niklaus Wirth’s story. I would like to point out that he starts from a tacit
assumption which I wouldn’t like to let pass unchallenged. His tacit assumption is that elegance or convenience
on the one hand, and efficiency on the other hand, cannot go hand in hand ... I just don’t believe it, and I would
like to point out that from the point of view of Niklaus Wirth, his assumption is just a belief. If I have any interest
in computing science at all it is based on my firm belief that very often the most attractive solution is the most
efficient one.
NATO SOFTWARE ENGINEERING CONFERENCE 196914 2.2 SOFTWARE IMPLEMENTATION LANGUAGES
Feldman: (from “Towards automatic programming”) “The search for more natural programming languages need not
necessarily lead to less machine efficiency. The level of description found natural by people is often a natural
one for code economization; the inclusion of extraneous detail proves a hardship to both man and machine.”
Lampson: It seems to me that it is somewhat confusing to talk about PL/360 as a high level language. PL/360 is an
assembler and that’s worth bearing in mind. Many of the issues which arise in trying to decide whether some
language which is not an assembler, such as MOL/940, is desirable or not, simply don’t arise in connection with
PL/360.
Falkoff: I would like to suggest a slight change in point of view, namely: that efficiency goes down as machines
become more and more user independent. There is apparently a gap between the way people would like to think,
and the way machines do things. To call this gap machine independence and put the onus on the user strikes me
as looking at it backwards.
A fairly extensive discussion of the pros and cons of various languages which were designed for writing systems is
given by Lang, in a paper which is given in full in section 7.8. At the conference he made the following plea.
Lang: It is an unfortunate fact that so many many systems are still written in assembly language. The perfect machine
independent system writing language that we would like to have does not exist yet. On the other hand it is well
within our present capability to design a simple machine dependent system writing language for any machine,
and to write an efficient compiler 19 for it. We should make use of this capability. Further, a few machine
independent system writing languages do exist, which deserve more use.
Buxton: I wish to respond to Charles Lang’s plea for people to use simple programming languages more widely. This
is a field which interests me because I have been gently growing one of these languages in my own backyard for
the last four or five years, and by and large it’s no better and no worse than any other such language, but it doesn’t
come into wide use other than with programmers in my own department. I think there is a quite subtle and
rather fundamental reason for this. If you publish this sort of simple systems programming language, a system
programmer will not use it because it is simple. He looks at it and says “This is so simple that I can design one
of these myself this afternoon, so I’ll dash one off and write a compiler in a week or two, rather than bother with
somebody else’s”. It turns out that language design even of apparently trivial looking languages is a formidably
difficult intellectual task—to do it right is very hard indeed. And unless he happens to be genuinely expert in
language design he will end up with having produced a mess; a tiny mess, but nevertheless a mess. This psycho-
logical phenomenon prevents the use of other people’s, sanitarily designed, systems programming languages.
NATO SOFTWARE ENGINEERING CONFERENCE 1969 15
20
3 SOFTWARE QUALITY
The subject of software production and quality was covered in a broad sense at Garmisch. The purpose of this
meeting was to concentrate in particular on the technical problems of software; having got a specication, the next
problem is to produce a product which is in some sense of high quality. We have separated this section into two
main areas; correctness of the product in performing the specied task (3.1) and its performance efciency (3.2).
The magnitude of the problem is indicated by the following quotations.
Hopkins: We face a fantastic problem in big systems. For instance, in OS/360 we have about 1000 errors each release
and this number seems reasonably constant. Now why do we have these errors? Does this number relate in some
way with the real number of errors in the system? It has been suggested that error reports come in at a rate con-
nected with the system update release cycle; initially people don’t report errors because of too many problems
and towards the end of a release nobody reports errors as the new release will present a whole new problem. It
is also suggested that the number of errors is directly linked to the number of field systems engineers. What sort
of errors are made on large systems? What is the error rate in various modules? For instance, is it much higher in
supervisor modules? Who makes the errors, new programmers or experienced ones? How long do errors stay in
the system? These are very difficult, unanswered problems. There is also another theory: IBM have a large stock
of new facilities back in Poughkeepsie waiting to be added to OS. Whenever the bug rate falls below 1000 per
release, which seems to be about the user toleration level, they put in a few more facilities which has the effect
of keeping the bug rate constant.
Schorr: It is not quite right that the rate is constant; it seems in fact to be slowly increasing!
3.1 Correctness
Section 3.1 is further subdivided into 3.1.1 on Formal Correctness (or, how to prevent bugs from ever arising) and
3.1.2 on Debugging Techniques (or, how to catch them when you have got them.)
3.1.1 Formal Correctness
Wirth: (from “The programming language PASCAL and its design criteria”) “I believe that the art of computer pro-
gramming is based on a relatively small number of fundamental concepts. It became clear during the devel-
opment of PASCAL that most of these concepts are already present in mathematics in some form, usually
surrounded by a terminology different from the one used by programmers. It is necessary to demonstrate this
duality in the expression of concepts and to make the mathematician’s knowledge of handling structures avail-
able to programmers. This knowledge 21 will be particularly useful for the development of techniques for
program verication, i.e. for proving the correctness of programs. In fact, the idea of program verication has
inuenced the design of PASCAL considerably. Several commonly used features of other languages have been
deliberately omitted from PASCAL, because they appear to be too sophisticated for presently known methods of
proof. It became clear that those features which are least tractable to proof techniques are exactly the ones which
are most difcult to dene rigorously and which in practice present the most dangerous sources of programming
error.”
Feldman: (from “Towards automatic programming”) “This question, correctness of programs, has been studied for
some time and a number of significant results are being produced. One technique is to attach predicates to vari-
ous parts of the program, the last one of which describes the desired result. Although there is no adequate survey
of this material as yet, London has produced a comprehensive bibliography.” (London R. L. ‘Bibliography on
proving the correctness of computer programs’, Tech. Rep. No. 64, Computer Science Dept., University of Wis-
consin, June 1969.)
NATO SOFTWARE ENGINEERING CONFERENCE 196916 3.1 CORRECTNESS
Hoare: One can construct convincing proofs quite readily of the ultimate futility of exhaustive testing of a program
and even of testing by sampling. So how can one proceed? The role of testing, in theory, is to establish the base
propositions of an inductive proof. You should convince yourself, or other people, as firmly as possible that if
the program works a certain number of times on specified data, then it will always work on any data. This can be
done by an inductive approach to the proof. Testing of the base cases could sometimes be automated. At present,
this is mainly theory; note that the tests have to be designed at the same time as the program and the associated
proof is a vital part of the documentation. This area of theoretical work seems to show a possibility of practical
results, though proving correctness is a laborious and expensive process. Perhaps it is not a luxury for certain
crucial areas of a program.
Perlis: Much of program complexity is spurious and a number of test cases properly studied will exhaust the testing
problem. The problem is to isolate the right test cases, not to prove the algorithm, for that follows after the choice
of the proper test cases.
Dijkstra: Testing shows the presence, not the absence of bugs.
Lucas gave a brief summary of the Vienna method (see P. Lucas and K Walk: “On the formal description of
PL/1” Annual Review in Automatic Programming, Vol. 6). He gave an example of an application of the Vienna
method, which revealed an error in the mechanism for dynamic storage allocation of AUTOMATIC variables in the
F-level PL/I compiler (see P. Lucas: “Two constructive realizations of the block concept and their equivalence”
TR 25.085; also W. Hanahpl: “A proof of correctness of the reference mechanism to automatic variables in the
F-Compiler” LN 25.3.048; both of which are available from the IBM Vienna Laboratory).
Lucas: The error was not found by the compiler writers; it was not found by product test and it would not easily have
been found by any random tests. I am quite convinced that making this proof was cheaper than the discussions
I have heard among highly-paid people on whether or not this allocation mechanism would cover the general
case.
22
Galler: I think this relates to a common mathematical experience; when you cannot prove a theorem very often the
sticking-point is the source of the counter-example.
Llewellyn: How often in practice do these obscure errors turn up?
Lucas: Nobody knows how often these cases turn up; that is just the point. A compiler writer is not a prophet of all
computer users. Secondly, even if only one user meets the error it causes him a real problem and it causes a full
system update mechanism to go into action. Even for only one such case, it is cheaper to make the proof than
mend the bug.
Galler: Engineers use the “worst case” approach to testing. Has this been done in software?
Lucas: I can’t see any possibility of specifying worst cases in this kind of field.
Reynolds: The difficulty with obscure bugs is that the probability of their appearance increases with time and with
wider use.
Dijkstra described some basic features of his work over the past several years on the problem of making program-
ming an order of magnitude easier and more effective. This is described in full in his working paper in section 7.4.
Perlis: Do you think the methods you have developed can be taught to those programmers who have always coded
first and justified last?
Dijkstra: No one survives early education without some scars. In my experience, the intellectually degrading influence
of some educational processes is a serious bar to clear thinking. It is a requirement for my applicants that they
have no knowledge of FORTRAN. I am not being facetious.
NATO SOFTWARE ENGINEERING CONFERENCE 1969 3.1 SOFTWARE CORRECTNESS 17
Falkoff: How do you describe a set of computations precisely and completely without using a program in some lan-
guage?
Dijkstra: The most basic aspects are, on the one hand, what a routine does for you and, on the other hand, how it works.
My point is that on no level of abstraction are both of these aspects simultaneously of relevance if the routine is
not recursive. These aspects can therefore be clearly separated.
Bauer: I agree entirely with Dijkstra; some current languages are doing considerable harm in the educational process;
one can’t help mentioning PL/1 here.
Randell: And ALGOL 68.
Bemer: I agree with Dijkstra on the value of elegance and simplicity in one’s thought processes and in programming.
I agree also on the difficulty of retraining people out of old habits and I wonder what percentage of the total
programming population he would like to retrain?
Dijkstra: One hundred and ten per cent!
23
Lang: You describe some intellectual tools which you say have increased your own programming efficiency about five
times. Have you been able to transmit these to your colleagues with a similar effect?
Dijkstra: Yes.
3.1.2 Debugging
This important topic occurred many times in discussion during the week The working paper by Teitelman (given
in section 7.14) is particularly relevant and much discussion centred round the work; in particular, on the relative
advantages of on-line versus off-line debugging and on the distinction between debugging within individual mod-
ules and testing the total status of large systems. The latter distinction was expressed by Aron.
Aron: We are discussing two different things. One is debugging: the term we use for an individual finding errors in
his own work within the design he created. The other is testing: the term applies to identifying and resolving
problems that arise in the system as a whole rather than in individual components. Testing is done by groups, as
an individual programmer lacks the total knowledge needed to test large sections of the system. The emphasis
on testing should never be on individual modules and as long as system testing is confused with debugging we
can expect test plans to be incomplete.
The paper by Needham given in section 7.10 is also relevant to the subject. Comment which, in the editors’ opinion,
relates specically to that area dened by Aron as “testing” will be found in section 5.
3.1.2.1 On classical techniques
Brown: There are two classical techniques: the snapshot during execution and the core dump after the program has
died.
Hopkins: Programmers call their errors “bugs” to preserve their sanity; that number of “mistakes” would not be psy-
chologically acceptable!
I think that the higher level the language used in programming the better. This was clearly understood by Shake-
speare who was against assembly language coding:
“Bloody instructions which being learned, return to plague the inventor” (Macbeth).
Programming languages should have structure. The user must be helped to write in a proper style which will
improve the standard of the resulting program. Machines don’t have side effects; neither should languages.
Dijkstra: I would like to applaud Hopkins’ remarks!
NATO SOFTWARE ENGINEERING CONFERENCE 196918 3.1 SOFTWARE CORRECTNESS
Oestreicher: One has to remember the need to test exhaustively all conditions which might arise; things which seem
locally impossible may well happen due to global effects. Testing for impossible errors is a fact of life.
Lampson: There is sufficient know-how available by now to make it possible to design a machine that would make the
writing of reliable programs easier. Does anyone know of a manufacturer seriously doing this?
24
Mention was made of work by John Iliffe and of Burroughs equipment. An entirely different, but equally ‘classical’,
technique was described by Burkinshaw.
Burkinshaw: Get some intelligent ignoramus to read through your documentation and try the system; he will find
many “holes” where essential information has been omitted. Unfortunately intelligent people don’t stay ignorant
too long, so ignorance becomes a rather precious resource. Suitable late entrants to the project are sometimes
useful here.
3.1.2.2 On on-line and off-line debugging techniques
Wirth: I would like to discuss the trend towards conversationality in our tools. There has been, since the advance of
timesharing and on-line consoles, a very hectic trend towards development of systems which allow the interac-
tive development of programs. Now this is certainly nice in a way, but it has its dangers, and I am particularly
wary of them because this conversational usage has not only gained acceptance among software engineers but
also in universities where students are trained in programming. My worry is that the facility of quick response
leads to sloppy working habits and, since the students are going to be our future software engineers, this might
be rather detrimental to the field as a whole.
Perlis: I hold the opposite belief: that conversational techniques aid and abet systems programming and improve the
programmer. Better use can be made of the support software used in systems work with full interactive contact;
and system programmers require to be on-line. By its very nature, programming is done by development. Lan-
guages like ALGOL don’t allow this; the program modules have each to be written in one fell swoop. People
don’t think like that; conversational systems permit programmers to work from the top down and to compute
even with incomplete specifications.
Galler: Electric toothbrushes provide an interesting analogy. Like conversational systems they were regarded with
great suspicion when new. However, it turns out that people using them have less dental caries just because the
electric toothbrush is a better tool.
Teitelman: I agree with Perlis. My own experience with conversational systems is that rather than leading to sloppier
use, if anything they promote a more efficient, systematic approach to debugging and testing. The fast response
encourages users to checkout their programs thoroughly, e.g. run the program again after making a fix to see if
the symptoms really go away. On the other hand, when system response is slow due to overloading, users get
frustrated and try to second-guess their programs and then they get sloppy.
Ross: If you are worried about sloppiness on-line, make your users pay real money; this helps!
Needham: In dealing with systems of such complexity that the man fixing a bug doesn’t understand too much of the
system, you must avoid making it too easy. If it is too easy to walk up to a console and put in a fix you run the
risk that it will be locally right but globally wrong.
25
3.1.2.3 On automatic analysis methods
Lowry: I will start with a strong statement of opinion. I think that ANY significant advance in the programming art is
sure to involve very extensive automated analyses of programs.
— If you want better debugging of programs, then the computer must analyze the programs and find the
bugs.
NATO SOFTWARE ENGINEERING CONFERENCE 1969 3.2 PERFORMANCE MEASUREMENT 19
— If you want efficient code then the computer must analyze programs and restructure them from a simple
flexible form to a highly stressed efficient form.
— If you want briefer, more natural programming languages then the computer must analyze the programs
to provide accurate contextual interpretations of the new forms or expressions.
— If you want better documentation then the computer must analyze the programs to produce abstract repre-
sentations of the programs from a variety of points of view.
— If you want programs which adapt easily to changing environments then the computer must analyze the
programs to perform the adaptations—perhaps working from separate environmental descriptions—so
that old code may be more effectively reused.
— If you want to decompile (or decouple) code to a less committed form then the computer must analyze the
code very thoroughly (or psychoanalyze it as Perlis suggests).
— If you want more informal conversational computing then the computer must analyze the code to insert
implicit constructs and recognize and query irregularities.
Now I know that some of you are currently developing or applying techniques for analyzing program struc-
ture—but I think it is mostly nibbling at the periphery. To those others who are trying to make a significant
contribution to the programming art in a way that does not involve extensive automated analyses of programs,
I would suggest that you perhaps climb a tree—or seek some other solitude—and consider whether you have a
chance.
Doing thorough analyses of programs is a big job. I don’t think you can just diddle at it. It requires that you use
a programming language which is susceptible to analysis. I think other programming languages will head either
for the junk pile or to the repair shop for an overhaul, or they will not be effective tools for the production of
large programs.
The main point I wish to make is that the analyses required to obtain the benefits I described are closely related
and the more of these benefits we attempt to obtain in a single context, the more effectively all of them can be
accomplished.
Perlis: What properties of language are important in the context of the need for thorough automatic analysis of pro-
grams? It seems to me that some languages may not be susceptible to analysis; can you give some examples?
Lowry: Assembler languages are very intractable. APL and PL/1 have some difficulties in flow analysis but these can
be cured fairly easily. FORTRAN is easier to analyse.
Teitelman: However clever the analysis program is it doesn’t know what the user really wants. One needs a snapshot
of the right words and the only way to do this is by on-line debugging with the programmer present.
26
3.2 Performance measurement and improvement
The subject of software performance was covered in some detail at Garmisch and so relatively little material was
presented at this conference. Papers were presented on a summary of system evaluation tools (by Gotlieb and
McEwan) and on 1108 hardware instrumentation (by MacGowan). These are given in sections 7.6 and 7.9 respec-
tively; for editorial reasons, the latter is given in part only.
Bauer: On a large dual processor system we studied recently we used hardware monitors for two purposes. One was to
see what the hardware was doing and as a result we could reconfigure the hardware quite extensively. This gave
us better performance and we could send much of the hardware back to the manufacturers. An additional benefit
we found later was that the application programmers could make good use of the detailed hardware traces. They
found it easy to correlate the traces with different parts of their programs; they then redesigned their programs
and improved performance quite considerably.
NATO SOFTWARE ENGINEERING CONFERENCE 196920 3.2 PERFORMANCE MEASUREMENT
Schorr: An interesting thing to try is using measurements on existing systems to extrapolate to new systems. This turns
out to be very difficult. One problem is that programmers adapt readily to the machinery available and it is hard
to tell whether you are measuring the characteristics of the hardware or of the user’s adaptability.
Teitelman: Timesharing systems need to provide aids to measurement for user programs. Obvious things are access to
a real time clock and a computation time clock so the user can hand tune his program. Our system has several
facilities like this which are widely used.
Ross: Firstly, every computer should have a finely divided clock which is accessible to programs. Secondly, in the
early days one had audio signals and store displays with which humans could recognize patterns in many ways
and derive a great deal of valuable run time information. We still need such tools. Thirdly, is it possible to
categorize in a handbook the useful things one needs to measure?
Galler: The ACM SIGOPS group is working on this problem.
Aron: One purpose of measurement is to tune up a program you expect to run often enough to warrant the expense of
tuning. The second purpose is to evaluate a changing configuration. This is much harder to do; a designer faces
a complex topological problem in trying to estimate the effectiveness of a range of configurations which he is
considering. It is difficult at present to see what measurements would most assist.
Needham: Systematic techniques for measurement are only appropriate in some cases, such as when a system is doing
a fixed job. It doesn’t help in the changing behaviour patterns of the average big job shop.
Gotlieb: I disagree; I think that even in a university shop these user patterns have more consistency than you might
think. This is exactly why we want measurement: to resolve such differences of opinion!
Galler: We have taken many statistics recently and find our users’ 27 behaviour surprisingly consistent. The statis-
tics are shown to the users and are very helpful in enabling them to get more out of the system. Whatever is
useful to the systems programmer should be made available, in general, to the user who needs similar tools.
Randell: Unless your multi-access system is large it is debatable whether there is enough statistical averaging for the
measurements to be useful. There is a different problem: is an individual user to be allowed to improve his own
utilization to the direct detriment of others? Preferably not! Avoiding this situation should be a design aim and
until it is achieved maybe he is better off without the tools which would allow the problem to break out.
Ercoli: Computers and software are service systems of much complexity. Average measurements are difficult but
the analytical tools are both inadequate for the study of this kind of system and often not familiar to software
engineers.
Sharp: Scheduling multiprogramming systems is one of the least understood areas in the subject; with machines like
ILLIAC IV coming along the situation will get worse. This alone seems to me to justify measurement; without
some statistical evidence one cannot design. How, for instance, do IBM do it?
Schorr: Statistics are usually so biased by local conditions that in practice they are seldom of much real use.
NATO SOFTWARE ENGINEERING CONFERENCE 1969 21
28
4 SOFTWARE FLEXIBILITY
The material under this heading has been classied under two somewhat arbitrary subheadings: Portability and
Adaptability.
Adaptability is concerned with enabling a given system to grow and change, as discussed for example by Warshall.
A related problem is that of moving an existing large system without taking it out of service, as discussed by Hop-
kins. Portability is the more restricted problem area of moving a specic system from one environment to another.
4.1 Portability
4.1.1 Definitions of the problem area
Perlis: Portability is the property of a system which permits it to be mapped from one environment to a different
environment; adaptability concerns the alteration of a system to fit the needs of a user without necessarily chang-
ing it from one machine to another.
On the definition of the terms “system” and “environment” I should like to make the following comment. There
is a layering, like an onion, that cascades from out to in. The interface between any two layers is always charac-
terized by a language and indeed if one does not have a language one does not have an interface. A system is
constructed on an inner environment and prescribes an outer environment for the user.
Dijkstra: A very tiny both linguistic and educational remark concerning terminology we use. Please don’t use the term
“onion shaped,” and I’ll tell you exactly why. Because you’re talking about something that is essentially a linear
layer. When I was at MIT I heard people talking about protection rings and it turned out that as soon as you
started talking about it they had to jump to the blackboard and make rings using a two dimensional representa-
tion for an essentially one dimensional hierarchy. If you now introduce the term “onion” you’ll appeal to a three
dimensional picture of essentially a one dimensional structure and it might clutter up your thinking, because
there might be another dimension to be added to it. So please, no onion.
4.1.2 Description of techniques
Perlis: Technically we are concerned with the investigation and production of support on new machines sufficient to
accept systems transported from old machines. Systems need support and should be adjustable and tunable if
the new support turns out to be not too good.
The examples presented to illustrate portable systems were discussed under these headings, classied by the type
of support to be provided in the new environment.
29
4.1.2.1 High level language support
This assumes a common high level language between the old and new machines. See the working paper by W. S.
Brown on the ALTRAN system in section 73.
Reynolds: A language can be unsuitable in two ways; if it is not sufficiently concise then that can be overcome by
macros but if it does not effectively allow you to write the program or represent the data at all then macros will
not get you out of trouble.
NATO SOFTWARE ENGINEERING CONFERENCE 196922 4.1 PORTABILITY
Brown: Macros are used to overcome the inability to express target machine characteristics in a FORTRAN program.
Limitations with regard to data representation are got round by using primitives.
Perlis: The representation of any kind of data as integers in an array can be done if you have enough primitives
around.
4.1.2.2 Bootstrap from the old system
Ross described the AED system developed by the MIT Computer Aided Design Project over the last several years.
We summarize the presentation here.
Ross: AED-0 is based on ALGOL 60 with data structures and other extensions. Its compiler is mainly written in itself
(95 per cent) and was designed with portability as one of the aims.Portability can never be both complete and
efficient and it is therefore best to tune up critical modules after the move to get an efficient result. This tuning
can to some extent be automated. The transfer is carried out by a complex bootstrapping approach including a
stage of “half-bootstrapping” in which code for the new machine is generated on the old one.
Strachey: Martin Richards’ BCPL was transferred from MIT to the KDF9 at Oxford as two decks of cards and
some scruffy notes. It was got running in about a week. The entire compiler is in BCPL and is designed to be
machine independent. The support system, including I/O is in assembly code. The code generator was rewritten
in ALGOL to provide an initial means of generating code.
4.1.3 Summary of techniques
Feldman: When one goes from one machine to another there’ll be a large set of environmental specifications: the size
of a word and the kinds of direct access, peripheral and tape storage and various other things of this sort. This
caused Stan Brown, for example, a reasonable amount of difficulty in parameterizing his system in such a way
that all the pertinent parameters could be incorporated. Another thing is the transportability of data. Now, of
course, with a small piece of data that isn’t a large problem. If, however, there are large elaborate data files that
are segmented in such a way as to be compatible with certain strategies because of certain direct access devices
and one goes to another system in which the devices are entirely different and one has to entirely restructure the
files, then that is a very large problem. The data itself must be entirely restructured.
Two other points. Firstly, once a program has been moved it becomes part 30 of the support for the other
programs to be moved. Secondly, not only does a portable system have to have its support specied but it is very
important that the program that is about to be moved is written in such a way that it can tolerate less than perfect
support. If one expects a certain exact support in order to move a program, one is going to be hard pressed.
The program itself should be modiable to make up for imperfections in the support of the target system. Fur-
thermore, this exibility will always be important in the second process, which is getting a system to run well.
Assuming that one has got it running somehow, you can always get it to run much better by making changes
in the way it goes about its business. So this exibility in the way the program itself is written is necessary in
order to move it in case the support is not perfect. This is what happened with the BCPL example; there was an
ALGOL compiler on the target machine and BCPL was written in a sufciently transparent way for the code
generating rules to be written in ALGOL and put on the machine quickly. The text that was implemented was
not identical to the text that was sent.
4.1.4 On portability of data
Bemer: (from “Straightening out programming languages”) “John Haanstra has said that compatibility is not a goal,
but rather a property which enables the goal of data and program portability to be achieved. I have my own
lemma that ‘if the data is not transferable, the program cannot be transferable’. It is quite evident now that the
separate divisions of COBOL facilitate program portability. However, we can and must do more for COBOL
along this line and, more importantly, carry it to the other programming languages, both procedure and prob-
lem oriented. Let us concentrate on the distinction that information can be obtained only when one knows the
NATO SOFTWARE ENGINEERING CONFERENCE 1969 4.1 PORTABILITY 23
conventions of data representation. This brings to mind a curious sequence of events, actually, a cycle. The
name CODASYL (the coinage of which was my small contribution) incorporates ‘data’. When we started the
standardizing bodies, we got a little fancier and said ‘Computers and Information Processing’. With the marriage
to communication and data bases, the plain facts are that we will process data and, incidentally, some informa-
tion. Computer based systems can move data around from place to place, put it away, find it again on the basis
of its packaging, and (as in the case of cryptography, for example) perform transformation upon the data, all
of those absolutely independent of the information content.’ Data is our raw material. Software and hardware
are only tools for manipulation. In some way the higher level languages, in the vacuum of not knowing enough
about data structure, have achieved a disproportionate importance and a warped direction; one direction per
language, in fact. Indeed, if I have a process to perform upon data, I may choose one of several information
procedure languages. Conversely, more than one user of the same data should be allowed to operate upon that
data by various information procedure languages.”
4.1.5 On design for portability
Perlis: In a system such as Brown’s, the assembler and linking loader are as important as the FORTRAN compiler. I
suggest some principles to characterize the design of portable systems:
1 Every output can be an input. (Closure)
2 There is a set of properties that one can define to characterize a “block”, and the coupling between
blocks.
31
3 Then blocks may be gathered together so as to produce a new collection more intensely coupled than the
originals.
4 This gathering process is subject to ever finer decomposition, i.e., it may operate within blocks, and inter-
ruption in the sense that it is a sequential process with memory—prior gatherings may be utilized in sub-
sequent gatherings.
5 Naturally all gatherings may be named (identified).
6 Furthermore there is a set of properties called parameterization rules, which permit weak coupling (“cou-
pling at a distance”).
Then the problem is:
1 How to characterize blocks.
2 How to characterize permitted coupling.
3 How to characterize degrees of coupling, including parameterization rules.
4 How to characterize the sequential machine (control, operations and memory) which accomplishes the
“gathering” task. A new component, scheduling and resource allocation, is introduced when segmenting
and parallel execution is possible. This is the new dimension introduced within operating systems.
One final point is that it is well worth looking at the work on “Generalized Programming” by Holt and Turan-
ski.
Dijkstra: (from “Structured Programming”) “Any large program will exist during its lifetime in a multitude of differ-
ent versions, so that in composing a large program we are not so much concerned with a single program, but with
a whole family of related programs, containing alternative programs for the same job and/or similar programs
for similar jobs. A program therefore should be conceived and understood as a member of a family; it should be
so structured out of components that various members of this family, sharing components, do not only share the
correctness demonstration of the shared components but also of the shared substructure.”
4.1.6 On writing portable software
Lampson: What can we do to help the man writing portable software not to make mistakes?
NATO SOFTWARE ENGINEERING CONFERENCE 196924 4.1 PORTABILITY
Ross: Educate him. (Laughter) There is no other way. We should note that a simple system can indeed be transferred
in a few days but bootstrapping a complex system cannot be made simple.
Lampson: The major problem is avoiding doing things that are machine dependent; for example, on word length. It
does not seem unreasonable to hope that in the future one might have languages that will discourage one from
writing this sort of thing and compilers that will detect when you have done it.
Brown: We have two tools of great value in writing portable software. One is a compiler which enforces the use of
our subset of FORTRAN. The other is the mere existence of the macro facilities, which encourage the writing of
clean code—by this I mean avoiding things like equivalence through mismatched COMMON statements.
Ross: A new word length is not a problem; utilizing new resources in a complex system is a major task.
32
Perlis: It seems to me that the first solution that one can see to this question of not making mistakes (premature bind-
ings) is the recognition of a class of functions where only one function existed before. For example: a system
programmer develops a system for a computer with one register, the accumulator, and wishes to map the system
on to something like the PDP10 or the IBM S/360 where there are multiple registers, without losing efficiency.
Clearly he should have designed the system so that the number of registers utilized was a variable; so that the
number of registers of a particular machine may be a parameter when the system is mapped on to the machine.
Now if he doesn’t allow for the possibility that a single-register machine is a special case of n-register machines
then portability is going to require a major rewrite of the system. How you anticipate possible machine designs,
the logical design of machine systems, nobody I think can really say. So I think that you’re always going to have
to backtrack when transporting a system, but in backtracking the way to do it is to recognize that, in situations
in which you have (say) two data points instead of one, the value “two” is still only a special case. Some of the
things are obvious, such as machine core size, because we know that all machines don’t have the same number
of machine words. The number of registers is now obvious. I guess people are now saying that parallelism is
obvious but take a machine like the ILLIAC IV where you have an arbitrary number of accumulators all of
which work in parallel. In this case we’re not talking just about (small) parallelism in data transfers. How could
someone building a system in, say 1960, anticipate that the ILLIAC IVs might be setting the tone for a whole
new line of machines in the 1970s? So I think that there’s probably going to be a limited time range when we
won’t be making silly mistakes that make portability difficult. Beyond that limited time range we’ll find we’ve
made some disastrous mistakes.
Strachey: I want to come back to this business of how can we help people to make systems, write systems, in such a
way that they can be transportable. It’s not entirely a question of not putting in features that we haven’t thought
of—not putting in the right number of registers or something like that. I think one of the chief difficulties is that
the general standard of programming is extremely low. Now this is a thing which I know Dijkstra’s been talking
about and this is actually what Doug Ross was saying. I think that I would like to suggest again, that the general
standards of programming and the way in which people are taught to program is abominable. They are over and
over again taught to make puns; to do shifts instead of multiplying when they mean multiplying; to multiply
when they mean shifts; to confuse bit patterns and numbers and generally to say one thing when they actually
mean something quite different. Now this is the standard way of writing a program and they take great pleasure
in doing so—”isn’t it wonderful? It saves a quarter of a microsecond somewhere every other month” Now I think
we will not get a proper standard of programming, we will not make it possible to have a subject of software
engineering until we can have some proper professional standards about how to write programs; and this has to
be done by teaching people right at the beginning how to write programs properly. I don’t know that we know
how to do this yet but I think we should make a very serious effort to do so and I think one of the things we ought
to do perhaps at this conference is to make a great point about trying to improve the standards of programming
in general. I’m sure that one of the first things to do about this is to say what you mean and not to say something
quite different.
33
Perlis: I think it is inevitable that people program, and will continue to program, poorly. Training will not substantially
improve matters. Using subsets of language doesn’t help because people always step outside the subset. We have
to learn to live with it.
NATO SOFTWARE ENGINEERING CONFERENCE 1969 25
4.1.7 On effectiveness of portability in practice
Brown: A sufficiently radical change of hardware, e.g. the move to highly parallel multiprocessing, may render the
algorithms themselves obsolete so that even if portability is achieved, the new hardware may be used hopelessly
inefficiently.
Feldman: If you are using a system very hard and pushing it to its limits, you cannot expect that system to be por-
table.
Poole: It seems to me that inefficient software on a machine is better than none at all.
Feldman: (from “Towards automatic programming”) “The idea of extending a language through macro expansion is
appealing and is certainly useful for minor syntactic changes. The problem is that to add a significantly new
construct to a language with reasonable efficiency, one must change the compiler in nontrivial ways. The solu-
tion is to write compilers so that they may be altered without undue pain. Several translator writing systems
make this possible. Alternatively one could write a clean compiler in a base language and extend the compiler
when needed. Our understanding of compiler writing is reaching the point where it should be possible to design
extensible compilers. This is a topic that deserves considerably more attention.”
In connection with this topic, see the paper by Schorr, reproduced in section 7.12.
4.1.8 On transfer of know-how
Ross: We have never yet set foot in a user’s premises to help put the AED system in. Furthermore, users are able to
write systems they can bootstrap to new machines with little help from us. But knowing how to achieve a full
bootstrap of the AED system itself is quite another thing. We can’t tell people how to do that yet.
Brown: We hope to solve this problem by putting in a lot of effort on documentation and system support software.
Buxton: I want to make one or two slightly cynical remarks on the subject of portability.
Since I’ve recently left the ivory towers of industry and returned to the sordid commercial life of running a
university department, I feel a little cynical as a result. My impression is that we’ve been treated to an estimable
and very interesting review of good, solid, working, successful techniques for transporting software around the
place. On looking back, it occurs to me that some of these techniques really have been around for years—I can
recall, no doubt most of us can, early bootstrapping between machines being done in the late ‘fifties. An interest-
ing question, which occurs to me then is to wonder: why isn’t portable software with us? So I ask myself the
34 following questions. Firstly: who wants it? The answer is the users. Secondly: who has to produce it?
The answer is the system designers—it seems very sensible to say that if you really want portable software
you must design your software system with that aim in view from the ground upwards. Now, why is this not
done? The answer here is, I suggest, that the system designers by and large reside in the manufacturers who
actually produce the vast majority of software used by the average user. This software is not portable because
the manufacturers do not regard it as in their best interests to have portable software. This is why we haven’t got
any. The portable software we have is, in the main, produced by users who are also systems designers, working
in mainly academic environments. The only places where it tends to go into general commercial use is in fact
in the bureau business. The business of a manufacturer is to get his clients and then to keep them and this he
does by a process known as “Free competition in the open market”. This is implemented by taking the clients
he’s managed to get and then totally insulating them from all other possible external inuences. This is done by
a process known as education. If this process is successful then with any luck his clients will see only his future
range of machines. Portable software would be a disaster because they might be able to take useful application
programs elsewhere. What a manufacturer might conceivably want is software that is portable on to his new
range of machines, when he’s thought of it, and only on to that new range, not any other machines.
NATO SOFTWARE ENGINEERING CONFERENCE 196926 4.2 ADAPTABILITY
4.2 Adaptability
One of the major contributions on the subject of adaptability was given in a talk by Warshall, who made refer-
ence to a report entitled “The Representation of Algorithms” available from Applied Data Research, 450 Seventh
Avenue, New York, N.Y. 10001, U.S.A.
Warshall: When discussing portability we saw three examples that I regard as sensitive and competent applications of
a conventional technology for moving programs. I would like to talk about the philosophical picture of portabil-
ity that underlies that conventional technology. I claim that technology rests very critically upon the fact that the
targets between which portability is occurring are very similar in structure. In any of these systems or in any
system which facilitates transport, what is being transported is, ultimately, descriptions by people of computa-
tional processes. People describe problems in some kind of language. It is a characteristic of languages which
describe computational processes that they are a mixture of two things. First of all they implicitly define the
mapping which you are trying to perform by executing the process. Second of all they define a certain intended
allocation of resource to accomplish that mapping. If you are dealing with two more or less similar machines as
targets for translation of your language, the trick throughout the conventional technology is to attempt to strip
out of the linguistic form exactly those representational commitments which have to do with the differences
between the two machines. If, for example, one machine has an instruction which does floating-point multiply
and another machine does not, you raise the language level and you do not permit the language you write in to
dispose in detail of this level of resource. The language speaks about “floating-multiply” and the translation is
different in the two systems; in one case it is to a unitary operation and in the other to some kind of subroutine
call.
35
To every part of the expression of the mathematical process in the “higher level language”, there corresponds a
structure downstairs in each of the targets. It is true of the conventional technology that the two programs in the
two targets always look very similar to each other for that reason. They both reflect the structure of the program
description in the higher language, and by higher level here, I do not mean more closely connected with the
problem: I mean containing fewer details of resource commitment.
What happens when the target machines or the target environments become very dissimilar? Then two programs
to express an identical mathematical function, for instance, on the two targets would look quite different from
each other. For example, if you imagine an information retrieval system on a machine which has a couple of
tapes for secondary storage, then the program will look like an enormous contortion to avoid dead rewind time.
Now a program to perform the same function on a machine with random access storage would be written in an
entirely different way. In effect, when the target machines for your translation become more and more dissimilar
and you have to strip out more and more representational commitments from the linguistic form, you always end
up in the same trap. The linguistic form you are working with when you get through is so far away from either of
the targets, in that you have made no representational decisions worth talking about, that the software’s problem
of mapping down is epic in its proportions. For example, you might write all programs as though you had infinite
memory and then let some automatic device worry entirely about storage strategy and resource strategy. That’s
certainly a harder job for the software than the job it has now.
The only way that we know out of this trap is to take the two dissimilar equipments and make them look similar.
That is to say, we introduce a layer of software on top of either of the machines or both of them and regard these
simplified machines, defined by the interposing software, as the real machines we are mapping to. They are
more similar, the maps become more plausible, but of course you have introduced some degree of inefficiency;
inevitably, because you are now regarding as atomic units things that are really combinations of atomic units,
and solutions that involve breaking them up are no longer available to you. I claim we are already in the situation
of dealing with targets that are in fact so dissimilar that a conventional approach to transport forces us to choose
between an absurdly difficult compiling problem on the one hand and impossible inefficiency on the other. I
think that is the reason why the conventional approach has shown no fruit at all when dealing with, for example
the use of secondary storage as a resource.
NATO SOFTWARE ENGINEERING CONFERENCE 1969 4.2 ADAPTABILITY 27
I would like to say next that I am not claiming that you will ever reach a situation where the two target machines
are so dissimilar there exists no language “high enough” to permit mapping down to both of them. I am merely
asserting that if that language ends up looking like a Gödel numbering system for programs, I am not sure it
is a useful logical construct for us, or even for mathematicians. Incidentally I would like also to say that it is
not clear that such a “higher level language”, if the target machines are sufficiently dissimilar, has very much
to do with a suitable language for human beings to write in. “Higher level” here really means “less committed
representationally” and has nothing to do with closeness to natural expression of problems. This is a confusion
of issues which I think is found throughout our literature.
Having said that there are intrinsic limitations in conventional methodology, one might ask whether there is
any alternative. I claim there is an alternative, although I certainly can’t prove it is the right one, and I 36
would like to give you an example of what I mean. This example comes from what may supercially seem a
strange place: code optimization. Imagine that you are attempting to compile a program in, say FORTRAN, for
a machine that does not look like the abstraction: the FORTRAN machine, and that in fact looks seriously dis-
similar to that machine in a very crucial way. In particular the target of the compilation might be a machine that
is not a sequential synchronized processor. Clearly, your program for the FORTRAN machine contains repre-
sentational commitments about sequence and synchrony which are just plain wrong for the target. A group of
people, friends of mine, have been working for some time on this problem. This group found that conventional
techniques simply would not work. By conventional techniques I mean starting with the FORTRAN program as
the highest level language dealt with and essentially compiling down in successive stages, each of which was
more representationally committed than the previous stage. They found that the fruitful way to look at the prob-
lem was as an instance of the portability problem, i.e. to envisage it as an effort to transport from the FORTRAN
machine to an asynchronous processor. What they did in effect was not to map down but to map up, i.e. per-
form a process which they themselves call “decompilation”. Having isolated the most crucial representational
commitment that was getting in their way, namely the commitment having to do with sequential synchronous
processing, they developed automatic techniques for methodically transforming a program in the FORTRAN
language to something at a “higher level”. This does not mean something closer to the problem or closer to a
human being’s understanding of the problem, but merely something with fewer representational commitments.
They convert the FORTRAN program into what might be regarded as an asynchronous automaton which hap-
pens still to have some structural features that came from the initial organization of the FORTRAN program.
This expression in the form of an asynchronous process has the additional virtue of being deformable; that is
to say, by formal techniques it is possible to alter a process with a different degree of asynchrony. In essence,
instead of nding a language that a man can write in and that is “high enough” and then mapping down in all
possible directions, they started with something in which a man could write that was not high enough, they
mapped up, then across and then back down again.
I would submit that given our notable lack of progress in applying a current technology to situations in which
the targets are seriously dissimilar and given the kind of remarks I made earlier about why you might expect this
to be so, it might be an extremely worthwhile thing to break out of the mental trap of assuming that the highest
level language in the system has something to do with a problem oriented language. We should consider the use
of software as a device for eliminating representational commitments; maybe trying that strategy for a while will
help us in solving this very difficult portability problem where the targets are systems that are quite dissimilar
from each other.
Bauer: I don’t quite understand what you mean by decompilation. Does this involve more than relaxing the strict
ordering sequence of instructions?
Warshall: The representational commitments that derive from the model of the FORTRAN processor as a sequential
synchronized device go much deeper than simply the problem of the ordering of instructions. In particular, one
of the most crucial things to disintegrate in the source program is the concept of “variable name”. The name “A”
for example in a 37 program is the name of a class of values no two of which are interesting at the same time;
that’s why they can share storage and why they can share a name. If you want to explode the process, that is to
say take advantage of increasing degrees of asynchrony, it is necessary to explode the variable name to a set of
other things, and how many other things is a very subtle function of how the program is constructed.
NATO SOFTWARE ENGINEERING CONFERENCE 196928 4.2 ADAPTABILITY
Perhaps it would be more informative if I gave you an idea of what kinds of deformation occurred. This group
performed amongst other things the following:
1 Elimination of common sub expressions on a global basis, not on a flow block basis.
2 Loop flattening; by loop flattening I mean the following. Imagine that a loop has three computations in a
row. In the i’th iteration it first computes A[i], then using A[i] computes B[i], then using B[i] computes
C[il. The optimizers do tricks like, for example, changing the initialization to make it more extensive so
that, instead of starting out with A[0], B[0] and C[0], you start out with A[2], B[1] and C[0] and then the
three lines of computation can march along in parallel.
3 Decision postponement; it is sometimes more economical not to decide which of two things to do but to
do both of them at the same time before deciding which result to use.
4 Arbitrary degrees of internal buffering to interface parts of the process; for example, if you have a bunch
of decisions, you have iterative decision making in one place while the results are being developed some-
where else. These two things can get arbitrarily out of phase with each other.
5 Most important of all, full pipelining at all levels. This means that if, for example, you have a machine
which is operating on inputs and producing outputs, it is not necessary for the machine to wait until an
output is produced before the next input starts being processed. Pipelining is used here in the same sense
in which it is used in hardware in systems like the CDC 7600.
We conceive of a program as something that can, with the proper equipment, be solving more than one problem
at a time and we have to provide the machinery for getting the right answer associated with the right question as
we get through. Now, it is clear that this kind of explosion of a process is a good deal more extensive than the
partial ordering of FORTRAN statements.
Schorr: The process of going up to a higher representation, then across and down again sounds like a nontrivial job. I
wonder whether, in the case of FORTRAN for example, the cost might not in some sense be lowered by perhaps
providing a “sift” from one FORTRAN to another followed by a correction process?
Warshall: One possible realization of this approach that we have considered is the idea of what we call the “FOR-
TRAN laundry”, based on our knowledge of the way in which two different manufacturers’ compilers work. We
take FORTRAN written for one machine and translate it to FORTRAN written for the other machine.
The more important and crucial thing to get across, however, is that I think there are three essentially different
techniques that I am talking about. One—the conventional—is to have the language in which the programmer
writes be the highest language, i.e. the least representationally committed language, in the system, and to restrict
the software to mapping 38 down. The second is to decompile, i.e. to eliminate some class of representational
commitments, and deform, which is not the same as compiling down. You go across and then down. The third
is to go all the way up to something so decommitted that you can sensibly compile down from it towards either
target.
The remarks I made at the beginning suggest that we have reached the limits of the first technique and that
perhaps the second will prove more fruitful than the third; it is the second that we are in fact involved with.
The decompilation process is certainly extremely laborious, complicated and space consuming and unless you
are really concerned with optimization would not recommend using it. However, I think the application of this
technology to other situations like, for example, the allocation of secondary storage, could have very fruitful
results.
Bauer: Adaptability means the modifying of programs to relate them to specific users. This is of particular interest
to those with large application programs. Aron pointed out the difficulty of getting a good initial specification
and the need for continual changes at late stages in the design process in ways which are neither predictable nor
even reasonable.
Where you are concerned with a large program and a large data base, the data structure must be included in the
system design consideration, otherwise you are lost before you start. The logic of the data structure is tied into
the logic of the program. Two extreme methods of including the data structure in the system design are:
1 Attach a full description of the data structure to the data base.
NATO SOFTWARE ENGINEERING CONFERENCE 1969 4.2 ADAPTABILITY 29
2 Represent the structure of the data entirely in the program logic. Neither extreme is particularly success-
ful. What do we do about this problem?
See also “On portability of data” in section 4.1.4.
Lampson: (from “On Reliable and Extendable Operating Systems”) “If a system is to evolve to meet changing require-
ments, and if it is to be flexible enough to permit modularization without serious loss of efficiency, it must have
a basic structure that allows extensions not only from a basic system but also from some complex configuration
that has been reached by several prior stages of evolution. In other words, the extension process must not exhaust
the facilities required for further extensions. The system must be completely open-ended, so that additional
machinery can be attached at any point.
Secondly, the relations between a module and its environment must be freely redefinable. This means that any
module, provided its references to the outside world are documented, can be run inside an envelope which
intercepts all of these references and reinterprets them at will. In order to ensure that external references are
documented, it must be normal and indeed compulsory practice to specify each module’s environment precisely
and independently of the module’s internal structure.
Thirdly, it must be possible to introduce several layers of re-interpretation around a module economically with-
out forcing all of its external references to suffer reinterpretation by each layer. In other words, a capability for
extension by exception is required. Furthermore, the system’s basic mechanisms for naming and for calls must
permit a number of higher level modules to utilize other modules, rather than forcing each new module to create
and maintain its own inventory of objects.
To summarize, a usefully extendable system must be open-ended, must 39 allow each module to be isolated
in an envelope and must encourage economical reuse of existing constructs. Such a system has some chance of
providing a satisfactory toolkit for others to use.”
Finally, we include this description of the way in which a system was transferred, while continuing to provide
service.
Hopkins: I would like to comment on how to improve a given system to make it portable from a real, live, and suc-
cessful example. My example is the American Airlines’ SABRE system which in 1965 was handling about 2200
inputs a minute on a modified 7090. Their projection from the growth of the airline business was that by 1970
it would be handling 3000 inputs a minute. I don’t think many of us have on-line real time systems that have to
perform that way; this is a real example of software engineering. The problem was that the 7090 was completely
saturated in 1965 and the system consisted of over 300,000 assembly language instructions. In its favour, the
system was highly modular and had such things as standard communications areas, standard names, all the
programs used copy facilities from libraries and it had supervisor system linkages which were all standardized.
Now consider what the problem really was—they couldn’t just pull the plug out of that system some day and
stop selling tickets—airlines get very excited if they can’t sell tickets for a week or more. The system itself had
reliability problems which occur in any system where you’ve got 300,000 instructions. It was a growing system,
in that the business changed and so the program had to change; this all meant that the system went down 3 or 4
times a day. They introduced new errors into the system 2 or 3 times a week; sometimes they did not flush them
out for a month or more and they learnt to live with this.
Now imagine trying to take this system off a 7090 and get it on to a 360/65; this was a sort of nightmare and the
solution was interesting. First of all, they attacked the problem in one very practical way. If you have a really
bad problem, you spend all you can on hardware. They bought a system hookup consisting basically of a pair
of 7090s, which have communication lines going into them, inputting into a pair of 360/65s. I believe they have
twelve 2314 disc units, and they have a whole raft of other secondary storage units.
The short term solution was to simply take the 360 and put a small control program in it and let it watch the
7090s’ I/O request queues and do all the drum I/O and the LCS transfers on the 360 large capacity core storage.
This gave them about a 20 per cent improvement on the old 7090 system and they were able to get over the next
Christmas rush. The long term solution was to bring up OS/360 on the 65 and write a control program on top
NATO SOFTWARE ENGINEERING CONFERENCE 196930 4.2 ADAPTABILITY
of this which essentially duplicated the same functions as the 7090 control program. Then what they did was to
gradually transfer modules over from the 7090 to the 65.
They were extremely upset about having written 300,000 lines of assembly language code the first time around
and they were determined to write in a higher level language the second time. There was no suitable language
which was available, which could interface with their systems so they wrote a new compiler, which was called
SABRE PL/1, for a PL/1 dialect with low level features. It provides, and this is very important, a mechanism for
having non-standard interfaces. In this kind of environment it is very difficult to persuade programmers who are
designing the control program and the systems services not to design non-standard interfaces. If you have the
prospect of 3,000 inputs a minute and your system has always been just 40 one step ahead of the sheriff, you
are not going to tell people that a microsecond isn’t important; too many times they have had to rewrite code
to save a microsecond or two. However, they are willing to live with a very few assembly language modules
because they recognize the fact that most of the work is concentrated in a very few modules. The higher level
language is machine independent in the sense that it knows nothing about the internal registers of the machine;
however, it does know how to write nonstandard calls to systems services and it is machine dependent in the
sense that it knows that a byte has 8 bits on a 360. The performance is very good with no global optimization.
This is because, as has been pointed out elsewhere, system programs really don’t have very many loops and it
doesn’t pay very much to move things out of loops because the loops just aren’t particularly important.
I venture to guess that one of the most important things in gaining acceptance of the product was the fact that
it produced an assembly language type listing which showed after each statement exactly how much code was
generated. As a sales gimmick, people could see that the compiler was producing clever code in certain instances
and this pleased the assembly language programming types. It also proved to be a tool which enabled people to
see when code being generated was disastrous; they could see it and make adjustments.
I think, in conclusion, that I’d like to point out that while I treat this as an eminently satisfactory exercise, I
shudder to think what will happen if American Airlines have to go to a machine with a different word size or
a radically different type of systems services. The machine dependence of the SABRE PL/1 language is rather
high in those areas. If you’ve got this constant fight against time, you’re going to have to constantly improve
the system. I guess I’d like to conclude also with the fact that at this time I believe approximately half, closer to
three quarters, of the system has been recoded in PL/1 and is now functioning on the 360. They are approaching
the time when they will be the only people in the world who have a 64k word 7090 as a frontend machine for
a 360/65.
NATO SOFTWARE ENGINEERING CONFERENCE 1969 5.1 CASE HISTORIES 31
41
5 LARGE SYSTEMS
In this section we have attempted to collect together material that is specically related to the problems of design-
ing very large systems. By way of introduction, the following comment by Schwartz has been excerpted from the
quotation given in full in section 5.1.1.
Schwartz: I must admit that I have frequently asked myself whether these systems require many people because they
are large, or whether they are large because they have many people.
5.1 Case Histories
Several rather extensive reports were given at the conference summarizing experiences gained in the design of
large systems. These reports and the ensuing discussion are the subject of this section.
5.1.1 A survey
This section is a transcription of a talk by Schwartz, who also provided a working paper “Analyzing Large Scale
System Development” reproduced in section 7.13.
Schwartz: In the early 1950’s, a small closely-knit group of skilled programmers working with 256 words of immedi-
ate access storage and relatively limited file storage and peripherals, produced a computerized aircraft surveil-
lance system which included a limited set of radar inputs and tracked a few aircraft simultaneously. Based on
this successful effort, this small, closely-knit group, in cooperation with the U.S. Air Force, decided to produce
a somewhat more complete system. This system would consist of a set of duplex computers covering the entire
United States with communication between adjacent sectors, new radar equipment which would permit finer
tracking, a number of additional functions, a wide variety of alphanumeric and vector displays and automatic
backup between the various sectors as well as within the duplex computers. The capacity of the system was to
be considerably larger than the prototype development, and the computer was to have 8K words of core stor-
age. Any illusions that the original group had about retaining their past pleasant, intimate, technically exciting
working relationship was soon shattered. Within a year approximately 1,000 people were involved with the
development of the SAGE System. People were recruited and trained from a variety of walks of life. Street-car
conductors, undertakers (with at least one year of training in calculus), school teachers, curtain cleaners and
others were hastily assembled, trained in programming for some number of weeks and assigned parts in a very
complex organization. The core storage of the computer was expanded to 64K words. The originally hoped for
capacities of the system were cut considerably. The system was first delivered over a year late at considerably
more cost than was originally expected and not too long before people began to realize the 42 threat of the
manned bomber was beginning to decrease considerably as long range missiles began to become a reality.
So began the era of the large scale system engineering efforts.
Not too long after this actually reasonably successful start, another rather major effort was begun for an impor-
tant military function. Those responsible for this one hired and transferred approximately six hundred people
within a very short time. After this first step (hiring) was completed, the next problem was to determine what this
system was to do. This took, to some people’s chagrin, several years. Man’s ingenuity being what it is, however,
a large number of these people were not wasted. They were put to work on the support (utility) system which
would assist the operational programmers when they got around to writing these programs. The support system
for SAGE had approximately 1,000,000 instructions and was actually very good, considering the time at which
it was built, but it was decided to improve upon the support system in many ways. It didn’t make it: about two
years later, the support system was not quite ready to handle the operational programs, which were finally being
coded.
NATO SOFTWARE ENGINEERING CONFERENCE 196932 5.1 CASE HISTORIES
In 1961, a small group of highly skilled programmers produced, at MIT, one of the first general purpose time
sharing systems, called CTSS. This system evolved into one of the better known and highly successful time
sharing systems. Based on this experience, in 1964 ideas began to be formulated for a considerably advanced
system called MULTICS. This was an ambitious effort, encompassing a number of new concepts, new hardware,
and considerably more system programmers than were required for CTSS. I think it would be fair to state that
this system has not proceeded with the same feeling of pleasantness nor satisfaction that accompanied CTSS.
These are a few of many experiences in large-scale system development which have taken place over the past 15
years. Very few of these have brought unanimous cheers from producers and customers because they were on
time, met the original specification, stayed within original hardware and remained on budget.
We have heard today a number of reasons as well as solutions for problems in the production of these systems.
From many of these experiences, we have learned of techniques and guidelines necessary to approach these
massive software undertakings.
Pervading all discussions are several key words, one of these words is control. Control is needed by managers,
so that they don’t begin a task before the initial specification is clear. Programmers must be controlled, so that
they don’t invent beyond the requirements which are assigned to them. Control must be exercised over the test-
ing of the system, so that tests for all levels of the system, including the smallest components, have adequate
test specifications prior to their production. These tests must then be executed and verified. Control must be
exercised over new versions of systems, to make sure that they are at least as good as the previous version,
before they are unleashed on the world. Documentation must be controlled but must constantly keep pace with
the system development.
Another word is flexibility. Managers must be willing to adapt as situations arise requiring changes in scope or
technique. The basic system must, through such means as data description divorced from procedures, central-
ized data maintenance, and data-independent programming languages, be flexible enough to permit change and
evolution without reprogramming. People must be flexible enough to tolerate rather drastic changes in direc-
tion.
The third word is people. A wide variety of levels of skills in people are required in this kind of effort. People
differ enormously in capability and 43 working styles. This presents considerable management problems.
Better measurement techniques would be very valuable. Some subset of the people must be able to communicate
outside of their own sphere, which might be software, documentation, testing, engineering, or administration.
Lastly, there is the word management. To handle large numbers of people, organized in a fairly complex struc-
ture, keeping them motivated while under quite stringent control, to understand the mass of details concerned
with the production process, to make decisions based on too few or too many inputs of a sometimes highly
emotional body of people, to be able to face superiors or customers with occasionally drastic recommendations
for change in scope; all of these require the large scale system manager to be skilled, flexible, tolerant, informed,
extremely tactful and, unfortunately, rare.
I must admit that I have frequently asked myself whether these systems require many people because they are
large, or whether they are large because they have many people. There is little question that they could be done
with fewer people than have sometimes been employed, given better initial planning, better key people and a
more intelligent starting phase. But it is also true that these systems require many parallel activities outside the
development of the central operating program; unrealistic goals and schedules are specified, communication
problems exist at many levels. All of these factors and others beside conspire to create much larger organizations
than seem theoretically necessary. Thus, although experience speaks against massive efforts, it also indicates
they will continue into the future.
5.1.2 Apollo Programming Support
This section was transcribed from a talk by Aron which covered, at greater length, information that he gave in a
working paper entitled “General Remarks on Apollo Programming Support”
NATO SOFTWARE ENGINEERING CONFERENCE 1969 5.1 CASE HISTORIES 33
Aron: I’d like to discuss the Apollo project, primarily for the purpose of giving a feeling of scale on a particular task
which, through its visible results, can be seen to have been a successful project. The Apollo 11 mission, which
actually landed men on the moon, was evidently successful because you all saw it. Within that project, which
was an immense hardware/software/organizational activity, there was a large software system. In fact there were
several large software systems. I’ll talk about the ground support of the space mission and primarily about the
portion of that which was conducted at Houston, Texas. There were other portions conducted by a number of
different manufacturers at Cape Kennedy, at the Manned Space Flight Center, at the Jet Propulsion Laboratories,
and at a number of tracking stations round the world; and of course in the space ship itself, where you had
computational capability and direct communication with the ground. The significance of the many locations is
that you have a much more difficult interface co-ordination problem because you have geographically separate
activities that must work in synchronization and must trade information in real time during the mission.
As a first step in giving you a feeling for scale, the Houston, Texas operation by itself ranged over a period of
years from 300 individuals to about 600 individuals, and at the largest point there were in the region of 300
programmers. The remaining people were in support or in administration associated with the job. This group
started their experience in space activities about 1959 on a project called Vanguard, a Navy satellite project that
put a very small satellite in earth orbit. This was then taken over and merged into the American space agency’s
(NASA’s) program, called 44 Mercury, which put men into space, followed by Gemini, which went into the
two man space mission, followed by Apollo, which had as its objective the landing on the moon. The initial
project required a portion of a 704 to track and maintain trajectory and orbit information on the Vanguard satel-
lite. The system, which was used on Apollo 11, ran on one IBM S/360 model 75, but the support system requires
a total of six for its development, so in Houston there are six model 75’s. In addition there was a model 50
for program support. All these machines were associated directly with the ground support programming, which
excludes communications and activities associated with data reduction and planning; these are done on other
NASA computers.
I mentioned the 10 year history primarily to indicate that there has been an opportunity here for the program-
ming and NASA staff to get to know each other. Many of the people who worked on the original Mercury project
are currently working on the Apollo project. They have developed an understanding of each other as individu-
als and this rapport between individuals is in our opinion a very significant factor in arriving at agreed upon
specifications from which one can proceed to build a programming system. I should point out that we have other
projects which lack this rapport, either because of personnel turnover in the military or because people don’t
like each other, and it is quite evident you cannot have an effective software engineering activity when you lack
rapport.
It is obvious that Apollo was a real time system. What may not be obvious is that the system consists of a very
large number of inputs and outputs, each of which is potentially unique and each of which changes for the next
mission. There are many, many telemetry messages brought in from the space vehicle and from the tracking
stations. The system supports a very large slide projection capability which can superimpose static displays
over dynamic displays, all of these under program control. There is a very large number of displays which are
monitored by the NASA monitors, usually assisted by one of the programming staff. These output displays are
tailored to the individual who is going to sit there. Part of the design philosophy is to have the actual designer
and engineer be responsible during the mission for supervising what he designs. That means that almost always
your outputs are tailored to the personal interests of the man who is going to sit in front of the display console. It
should be further pointed out that, at the time that programming started, it was not always possible to determine
what the display unit would be in terms of hardware, so that in general the display systems required a symbolic
generator. All display output programs were written in a standard form and a special program was written to
convert the displays from the standard form to the proper device format.
The programming techniques were primarily assembly language and FORTRAN. However, it was necessary to
build a special operating system called RTOS which initially was intended to look like OS/360 with real time
appendages for device control. Because of schedule difficulties there was a divergence early in the development
of RTOS so that, in fact, it is different from OS and is incompatible with it, but it has many of the same func-
tions.
NATO SOFTWARE ENGINEERING CONFERENCE 196934 5.1 CASE HISTORIES
Five of the six model 75’s are close to one another. They all have large capacity storage and are interconnected
through storage and through input/output devices. NASA’s safety requirement is that a single mission be sup-
ported by a portion of one machine, leaving room for peak load, but backed up by other machines. If the primary
machine that is running the mission fails, the job is switched to a secondary machine. The reason for the six
machines is to support the mission, which may last several weeks, to support program development and to sup-
port simulations of future missions.
45
During mission simulation and during real missions, these machines are connected to a very large display and
control room as well as to the input/output devices. The result of this is that during checkout of the real time
programs, it is essential to dedicate some portion of this complex. That leads to each individual programmer
using, on the average, 10 or 11 hours of computer time on a model 75 every month. This interested us because
it is quite a high amount, but it turns out that it is not much higher than that for our other real time systems.
We run an average of seven to eight hours a month on data-based systems. The systems run in batch mode for
debugging. In some of our locations we use remote entry, at the moment in Houston we still use couriers. The
programmers get one or two shots a day, but they know what to expect and in most cases they find that they can
adjust their work to fit this type of schedule.
Let me turn to the question of the use of modelling techniques to help program development. Modelling has
been used extensively in the Apollo support system project. A group of programmers was convinced that you
should have a model of the real time system and they went about producing it. They came up with some things
that were sufficiently convincing for NASA to permit them to build a model to run alongside the system itself.
They started on a 7094. They are now working on a S/360. Their model consists of a simulation of the hardware,
the real time software, and the application programs. The model can be operated at various levels of detail; it
can treat the mission programs as black boxes, simply looking at the inputs and outputs, or the program itself
can be substituted to see how it actually works. Because this model is developed in parallel and runs constantly
it is useful for such things as determining when you are going to run out of memory capacity or CPU speed. It
has been used as a guideline in changing the hardware configurations. In addition it has been used for evaluating
programming proposals and trying to determine which one looks most promising and should go to the head of
the priority list.
Now it is always difficult to validate such a system and people tend to lack confidence in it until it is validated.
This involves measuring the modelled system. In order to measure the operation of an actual system, a program
called the Statistics Gathering System was built, which runs in cohabitation with the real time operating systems.
It records information has continued to depend upon the simulation and has supported a group of some 25 people
over the years just for this purpose. I indicate the size of the group because it indicates that not everybody is
going to be able to support the kind of simulation that has been successful at Houston.
Finally, a comment on the question of schedule control procedures. Control consisted of, among other things:
defining small modules, assigning decision making responsibility for modules to individuals who would commit
to solve the problem, reviewing progress weekly, maintaining a detailed specification and change document,
measuring and/or predicting system performance, monitoring financial progress, and requiring advanced reser-
vation of computer test time. At one time NASA required that we develop a PERT chart. They have since with-
drawn that as a requirement. In its place, a development and test plan is maintained and reviewed weekly by
the IBM and NASA counterparts. It was useful, however, in the design stage when it provided a tool to identify
things that had to be done and to show their interrelationships and the activities they depended upon and those
that depended on them.
46
Ross: Your statistics on amount of debugging time and number of programmers indicate that each debugging run takes
an average of 15 minutes. Is this right?
Aron: This is an average. In fact some runs will last for many hours or a day or more, when one is involved in testing
the overall system rather than debugging modules. Considerable attention is being paid to finding ways to reduce
this figure.
NATO SOFTWARE ENGINEERING CONFERENCE 1969 5.1 CASE HISTORIES 35
Lang: What are the proportions of machine language to FORTRAN programs in the system? How was it decided
which language to use for a given program?
Schorr: I understand that basically the orbit calculations, etc. are in FORTRAN. The modifications to OS/360 to pro-
duce RTOS were in machine language and that was basically the division. At the time I saw the project, there
were 40 to 50 programmers working on RTOS, and approximately 250 programmers working on the application
modules, and these people were writing almost completely in FORTRAN. About forty per cent of the total code
was in FORTRAN.
Brown: I would like to know how many supervisory personnel are involved, how many levels of supervision there
are, how many of these levels consist of people who are part time supervisors and part time programmers and
how many levels consist of people who are able to read programs and do read the programs for which they are
responsible?
Aron: This particular organization is heavy in programming background. It is a well known situation for an engineer
to be managing programmers and not understand their product. Houston has been fortunate in having been built
up for the purpose of programming. The typical organization starts with a first-line manager who will have six
to ten people working for him. In general the first-line manager does not write portions of the program but he is
responsible for the quality of the program. He always is capable of reading it and understanding it, and he may
pick certain difficult parts of it to do himself. Above the first-line manager is a second-line manager. He will
divide his time primarily between giving direction to the managers below him and coordinating the requirements
with the user and his own boss. He is probably competent to read the code but he spends practically no time
reviewing actual programs. I would assume that he gets involved only when there is a problem in testing and it
is necessary to revise the design in some way. There are then two levels above that. The head of the project is a
fourth-line manager; he is primarily an administrator, although he has a programming background.
Thompson: Could you comment on the division of responsibility between NASA and IBM, and on the problems asso-
ciated with acceptance by NASA of the finished product?
Aron: The vendor in this case had total responsibility for the ground support programming package, meaning that
NASA did not tell us how to do the programming and they did not look over our shoulders. On the other hand, as
I explained before, it was impossible for us to make a step forward without understanding the user requirements,
so there had to be close co-ordination 47 between the user and the IBM personnel. In general every group
had a contact in NASA.
We did not do the mathematical analysis for the most part. NASA itself defined the problem, determined how
the problem could be solved and gave it to us to program and verify. This is quite common in our business; we
have to have people who are very broad in their ability to understand applications, but they are not often asked
to generate the initial solution to a scientific problem.
On acceptance: any mission required from one to two months of actual real time simulation. The simulation
during the latter period involved the actual NASA people who had to run the system. To ensure that the inputs
were realistic they were recorded from actual instrumentation and fed in on tape or, at certain stages, they would
be transported to the remote sites and fed in from the tracking station to simulate the actual communication
links. At the end of this period of simulation, if you were ready to run the mission, you had acceptance. In addi-
tion, a formal acceptance of system components took place when test reports were approved.
Haller: What kind of specifications did you get from NASA?
Aron: That’s hard to say. It is primarily a specification written out in English, with formulae, describing a procedure.
It is not a programming specification in any sense. The problem has changed over the years; therefore they
continually give us new inputs. The original problem was to put a single vehicle into an earth orbit. A succeeding
problem was to put more than one vehicle into orbit and to find a way to transfer from one orbit to another in
order to perform a rendezvous in lunar orbit, plus the control of a lunar landing. You will perhaps have noticed
from television that the ground support center was always in communication. Part of the specification requires
that this system be foolproof and as a consequence there are a tremendous number of safety features built in so
that, if something unexpected happens, there are people sitting on the ground who will make decisions so as to
NATO SOFTWARE ENGINEERING CONFERENCE 196936 5.1 CASE HISTORIES
correct the situation. The ability to support decision making on the ground is built into the program or at least
into the program documentation.
Schorr: The human aspect of that is, I think, very important. There is no attempt to do it all by program reliability
alone. For example, during one of the missions they found an error involving a module not releasing core store
when it should. It just kept on claiming more and more core, and this was not noticed in the simulations. As a
result, when the system was running, after a few days it got more and more sluggish. It was working, but nones-
sential functions were being dropped, because of lack of core space. Over a period of eight to ten hours a second
system was brought up, by hand transfer of inputs to the system, very laboriously, and then a cut-over was made
to this system.
Bugs are taken out up to the last day. Very often expedient decisions are made right before a mission to avoid
using particular modules.
Falkoff: How do you construct the modules in such a manner that you can at the last moment leave some out and still
have the system operate?
Aron: The easiest part of the system is the algorithm for solving the Newtonian equations. Where you really run into
difficulty is in the human interface and in trying to understand what should be put out on the 48 displays and
what should be put out on the radio links. This leads to a very early recognition that you must modularize things
in such a way that if you had a telemetry experiment that you couldn’t test you’d have to delete it. You couldn’t
allow it to interfere with the more formal, mathematical parts. A second consideration was that the schedule
is much more important than the experiments, so that the management priority was to sacrice experiments
in the mission in order to satisfy a particular schedule for launching a vehicle. The modularity simply follows
good rules of interface denition. The real time operating system was completely independent of the “problem
modules”. That meant that these modules could be extracted from the total system without too much trouble.
Each named problem module could be worked on independently of other modules and it could be installed or
extracted from the library master program, which could then be reloaded in the system. In addition, through the
displays, you have the power to select which modules should actually be used.
Randell: It would seem to me that one of the main reasons for the undoubted success of the Apollo programming
support system is its environment. It is part of a much larger effort, the total Apollo project, involving many
other technological problems that had to be solved, and which could only be tackled a few at a time. Hence the
support system has been done over many times; each time there has been a considerable change but it hasn’t
been a revolution. What worry me are systems which don’t benefit from such a constraining environment, where
software is the only technology that would be involved in a huge leap forward.
5.1.3 The electronic switching system
The Bell Telephone Laboratories system, subject of a paper by Ulrich reproduced in full in section 7.15, caused
some discussion. The overall reliability of the system to date was summarized as follows.
Ulrich: We had an initial objective of downtime for the system of no more than two hours every 40 years, remember-
ing that downtime is only caused by situations in which both processors are down or where there is such mas-
sive memory mutilation that we can’t handle calls. Actually, we didn’t adequately anticipate the second when
we made our downtime objective. We thought primarily of how often we could reasonably afford to risk having
both processors fail simultaneously, and we felt that perhaps once in 40 years was a reasonable objective. I might
add that we’ve had in the order of 50 years of experience, accumulative over all our central offices, and we have
not had an instance of this particular kind of trouble yet; so that prediction may not have been too far out of
line. In terms of our overall achievement, however, instead of having two hours downtime in 40 years, in this
50 years of experience we’ve had a total of about 60 hours of downtime. Again, that’s not bad; 60 hours in 50
years is about one hour per year, which is a fairly high degree of uptime for any computer system. This is the
overall statistic since our first installation. More recently of course we’ve been quite a bit better. Our more recent
statistics indicate 15 hours downtime per 40 years for large offices and perhaps five hours per 40 years in smaller
NATO SOFTWARE ENGINEERING CONFERENCE 1969 5.1 CASE HISTORIES 37
offices. One of our big problems was to make sure that we would not get into a situation where we had mas-
sive memory mutilation, otherwise known as a crash, which would prevent us from setting up telephone calls,
without our 49 recognize the situation. So we had to build facilities to make it possible to have a reliable
scheme for recognizing that on an overall basis the program was cycling properly. The particular algorithm we
used was to check the time required to go through all tasks, and if this time exceeded a certain specied amount,
we became worried and we started performing progressively more serious initializations. I might add that our
nal step of initialization is to tear down all telephone connections, clear the memory, and start from scratch.
This was not too favourably received by the Chairman of the Board of our corporation. When he rst heard
about this fact (after it had happened, of course) he is reputed to have remarked, “What idiot could have designed
a system which deliberately tears down telephone calls?” He was not an experienced software man so he didn’t
appreciate the subtle beauties of initialization as a means of getting out of trouble.
The main types of programming error that caused crashes were the following:
1 We use pointers quite extensively and we interpret them literally without checking for range, primarily
because of their extensive use and because of our need to conserve time on our main program legs. If a
pointer is falsely overwritten, you quickly get into a situation where you start propagating trash throughout
the memory and this can get you into trouble.
2 Another situation which has occurred in a number of cases is the unchaining of a lengthy list of pointers.
This unchaining might occur because of almost simultaneous events which, when tested in the laboratory,
did not show up. But when the random situation in the field turned up, the almost simultaneous event in
effect violated what turned out to be a guard interval and caused problems.
3 One thing which happened a number of times and was a little embarrassing is that we falsely switched
in a store which turned out to be faulty and which was perhaps being tested with a test pattern. You can
imagine what happens when you interpret a chequer board pattern as the data concerning all the telephone
calls in the system!
Hoare: I derived much encouragement from Ulrich’s description of two of the most common kinds of programming
bug, because it throws some credit on the people who organized a NATO Summer School in Grenoble a few
years ago. I gave a paper on techniques for ensuring by some form of absolute, rather than run time, check that
pointers are being used correctly. Edsger Dijkstra gave a paper on techniques for ensuring that unusual sequenc-
ings of events didn’t cause unpleasant results. If there is a conflict at this conference between the theorists and
the practical men, I hope this example will help to resolve it.
The problems of maintaining compatibility also came up.
Ulrich: Dijkstra’s remark about puritans falling in love with the source of their misery also applies, I think, to tele-
phone central office designers. One of the important sources of our misery is that we have to live and com-
municate with a very extensive existing telephone plant that is quite old and that was never designed to work
with a modern system. This is a classic example of having to be downward compatible for an indefinite period.
For example, the telephone instrument is really an improved version of an instrument designed for the Strowger
system, which was the first automatic telephone central office, invented in 1889, and which is still highly com-
petitive in the small office range.
50
Schorr: Ulrich’s point about the necessity for the central office to be designed to be downward compatible with all
the existing telephone company equipment is all too relevant to software engineering in general. We are getting
into an era in software production where we will have to be very careful about how we design our interfaces so
that we are downward compatible. Going from second generation to third generation it was simple to do some
emulation. Maybe now the operating system interfaces and so on will be another piece of baggage we’ll have to
carry along as we go further and further.
5.1.4 The “Super-programmer project”
One further case history was given, this being of an experiment in which a single extremely expert programmer
attempted to produce a system which was, though small by some peoples’ standards, of considerable size. The
NATO SOFTWARE ENGINEERING CONFERENCE 196938 5.1 CASE HISTORIES
report was given by Aron during discussion of the scheme proposed by Seegmüller (see section 2) for the design
and implementation of a system.
Aron: I would like to describe an experiment we performed in which a single programmer, Dr. Harlan Mills, undertook
to reproduce a project that had been started in a typical “army of ants” fashion and was still under way. He
hoped to do in six man months what was regarded as being essentially a 30 man year project. His approach was
essentially similar to Seegmuller’s scheme; his language was PL/1 and he used it from the top down. He started
out using PL/1 as a pidgin English; he simply wrote out his abstract ideas in an English form which was closer
to PL/1 than it was to conversational English and, as he proceeded into more detail, he generated the remaining
parts of the PL/1 statement. The essentials to his procedure were (1) develop the programming system structure
and (2) develop the data files and the intercommunication system within the program. He found that, having
done that, it became fairly straightforward to fill in the algorithms within each program module. Now, we tried
to study this project in order to determine whether it was a success or failure but we ran into difficulties; namely,
that he didn’t finish it in a single effort. There were interruptions, other projects along the way, so that it wasn’t
clear exactly what the results were. But it was clear that it didn’t take six man months to do the job; it took
more like six man years, which still wasn’t bad since it was substantially better than the other group. On the
other hand, during the period of the experiment, the other group’s objectives changed substantially because the
customer changed what he wanted. The program was called the “definitive orbit determination system” and its
purpose was to build a history of orbit programs and orbit observations for space agency and air force satellites.
It was to be an interactive system whereby scientists could come up to a computer, request the assembly of
information from old satellite activities and study it to determine such things as the geodetic shape of the earth,
distances from the earth to the moon, etc. The system itself was, I would guess, around 50,000 instructions and
the file was rather large. The structure of the information in the files was diverse because it was picked up from
miscellaneous jobs, none of which had been performed with the intent of storing the results in this file. Dr. Mills
had the role of chief programmer and his function was to do everything regarding generation of the program
down to the final code and testing of the code. In order to assist him, however, he trained his secretary 51
to be his interface with the computer. Naturally, he found that he had to develop a small programming support
system in order to enable her to communicate with the computer, the way a secretary would, rather than the way
a programmer would. And he had a little help to get that programming system built. The second thing he found
was that in order to write a program in PL/1 he had to spread out, like, 36 manuals on his desk. In order to get
around this, rst of all he requested us to assign him (part time) an expert PL/1 programmer, a programmer who
was expert on the internal details of OS/360 and a few other consultants. Finally he acquired what we call a
programmer-technician, a trainee programmer without a degree, whose job was primarily clerical support.He
found that, in order to simplify the languages that he used (PL/1, JCL and linkage editor), he had to rewrite the
manuals for JCL and linkage editor. This turned out to be fairly worthwhile because it was then easy to turn the
description of these procedures mechanically into a set of control cards that his secretary could conveniently
use.
The estimate of the man-power required increased from his original estimate. A second point that was far more
significant was that, because the job he was doing was running parallel to an existing job, we chose not to give
him a direct interface with the customer. We didn’t want to confuse the customer about how many different IBM
groups were supporting him, so we took one of the systems analysts from the contract project and made him the
simulated interface with Dr. Mills. This turned out to be a mistake, in my opinion, because it shielded Dr. Mills
from all of the actual problems of customer relations.
We have a second project of this type now, dealing with an information bank for a New York City newspaper
and here we do have direct contact with the customer. Progress is substantially slower, and it is obvious that
Seegmuller’s first point is an extremely difficult one to reach since we are dealing, at least in the case of applica-
tion systems, with users who don’t really know what they want; moreover, they don’t realize what they want
until they’re into the project itself.
Now let me turn to the question of why we don’t use this technique in our many other projects. First of all
a chief programmer such as Dr. Mills is a very unusual individual We started out referring to him as a super-
programmer; the term may not be accurate but it is descriptive because among the other 2,000 programmers
there are not more than a few of equivalent capability. The capabilities required are extremely good program-
NATO SOFTWARE ENGINEERING CONFERENCE 1969 5.2 PROBLEMS IN LARGE SYSTEMS 39
ming knowledge, extremely good application knowledge and a desire to work very hard on this type of problem.
It was necessary in the orbit determination system to understand sufficient mathematics to develop the orbit
equations and so forth, as well as understand programming. In addition it was necessary to understand a subject
that is dominant in many of our application systems, namely, the problems of interface with displays and with
analog input such as radars and data acquisition devices. Now, in our remaining projects, because we cannot
depend upon the existence of a super-programmer in any given project and, because we must transfer our people
around in order to apply the right number of resources at the right time to a contract, we have found that it
is important to build our systems without dependence upon any particularly strong individual. So we set up a
management and control organization that makes the best out of the resources that are normally available. If
we find that, within a project, we do have a great strength then we find that the individual concerned naturally
introduces more advanced ideas. But we find that it is impractical to plan our project with the confidence that
we’ll find such an individual in 52 the beginning. Our current goal is to t the best implementation approach
to each new project.
5.2 The sources of problems in large systems
One of the subjects that was discussed at length was the extent to which there are technical as opposed to manage-
rial problems in the design of large systems. (Debate on managerial problems per se, has not in general been
reported on; though working material which, in the editors’ opinion, signicantly supplements the material given
in the Garmisch Report has been included in section 7, i.e. the paper by Aron.)
Aron: We made a study of about a dozen projects, though not in a very formal manner. However, our results were
convincing enough to us to set up a course on programming systems management. The nature of the study was
“Why do our projects succeed or fail?” We took as “successful” a project that met its requirements on schedule
within the budgeted dollars and satisfied the customer. On this basis, out of 10 or 12 projects that we examined,
we had one success and a whole lot of failures. We analyzed the reasons for failure, as given to us by the project
managers, and by people who had performed previous evaluations of the projects. They gave various reasons
behind the failure of the projects, virtually all of which were essentially management failures. We ran into prob-
lems because we didn’t know how to manage what we had, not because we lacked the techniques themselves.
Buxton: There are serious management problems of course—but are all the problems managerial in nature? I get
the strong impression, from Aron for instance, that his view is that it is completely and totally a management
problem and that his establishment is entirely satisfied with classical assembly language and FORTRAN pro-
gramming techniques, which were well developed many years ago. Have you no need ever for, say, recursive
programming techniques, for example?
McGowan: The problem is managerial in the sense that it is a managerial responsibility to learn new techniques
and develop new tools to solve our problems. However, the Exec 8 system generation routine is essentially an
example of a technical, rather than a managerial, solution. We have problems with multiprocessor interlocking
and scheduling, and with storage allocation, for example.
Scalzi: One of the reasons that OS/360 is such a big management problem is that there are technical problems to be
solved. We should not need to use anywhere near the same number of people again if we re-do OS/360. One
of the major problems is testing the system; particularly since different components are produced in widely
separated areas. Many of our problems arise from our inadequate means of specifying software.
Aron: I was not trying to claim that all problems are managerial in nature; rather that management decisions are
required to take advantage of any technology that is available.
Perlis: Take, for example, OS/360 and its Job Control Language. I have yet to hear a good word about JCL. What
kind of managerial structure is it that 53 doesn’t lter a new proposal against existing knowhow so that, for
example, JCL would have the right properties of a language? It is failures like that which are technical failures
on the part of managers, and which are largely responsible for major difculties in the system. I think that, by
and large, the managers wouldn’t know a good technique if it hit them in the face.
NATO SOFTWARE ENGINEERING CONFERENCE 196940 5.3 SUPPORT SOFTWARE FOR LARGE SYSTEMS
Hoare: Basically all problems are technical. If you know what you want to do and you have the necessary technical
background, there is no point in making a great management problem out of it. Obviously a certain amount of
resource control and personnel work have to go on but that’s all. On the other hand you might have a task which
is difficult in that you don’t know what you have to do, and that even if you did you wouldn’t know how to
do it. Since this is a very difficult task you can start out with the hypothesis that it will take a great number of
people. Following down this slippery slope of reasoning, as soon as you have a very large number of people you
have a very large management problem. But it all originated out of the fact that you didn’t know what you were
doing, or how to do it. Perhaps because we don’t have large teams in Europe we tend either not to understand
or perhaps to understand too well what the Parkinsonian slope is in this case; and we feel more inclined to cry
that the Emperor has no clothes.
A subject that was discussed at much less length than its importance would seem to merit was the real meaning and
signicance of the concept “module”
Falkoff: On what basis, according to what discipline, have these people who built large systems decided what is a
module?
Buxton: 4096 bytes!
Aron: For example: to take a very empirical look at the question Falkoff asked, a programming module can be defined
in a very large system by looking at what a designer hands over to a programmer to implement. In general,
we found that he hands over a programming module which ends up as about 400 to 1,000 machine language
instructions when it is finally built. That was the smallest unit of the system. The size depended upon the degree
of detail that was considered important by the designer, and it varied from one man to another. It also varied
according to what he thought the capability of the implementing programmer would be.
Ulrich: For some of our programs this was a relatively straightforward process. A module was the response to a
particular telephone event. For example, one of our modules is the response to the recognition that a customer
has picked up his phone and wants to get a receiver into which he can dial. This was a reasonable algorithm
for a portion of our program. However, it did not help us at all so far as setting up the large body of common
programs.
5.3 Support software for large systems
During the conference a brief presentation was given by H. M. Brown of a system being used inside IBM to assist
in the development of large-scale programming systems. The slides that he used during the presentation are repro-
duced as Figures 1 to 11.
Brown: CLEAR, standing for “Controlled Library Environment and Resources” is a programming development sup-
port system designed to help 54 IBM development programmers manufacture large systems. It aims to assist
the administration and the accomplishment of the program development cycle. The second slide (Figure 2) gives
more detail as to the administrative support provided.
The third slide (Figure 3) indicates some of the facilities provided for programmers. The preprocessor interface,
for example, allows the programmer to use simple verbs, rather than complicated and lengthy JCL programs, for
such jobs as modifying a piece of source code, followed by reassembling it, and possibly testing it. The What
Used/Where Used mechanism will scan a module and tell you the macros, LPSW instructions, supervisor calls,
etc. that it uses. The so called “Delta Concept” allows you to avoid changing the actual source text but instead
make your changes in a “Delta” data set, which is an increment to the source text. Therefore anything which was
previously released is (hopefully) unchanged and will still be there with the next release of the system.
This so far has just been the CLEAR system, a batch processing system, which is several years old by now.
The CASTER system (Computer Assisted System for Total Effort Reduction) is much newer, and is an exten-
NATO SOFTWARE ENGINEERING CONFERENCE 1969 5.3 SUPPORT SOFTWARE FOR LARGE SYSTEMS 41
SLIDE 1
Major Objectives—CLEAR System
I. Administration of Program Development Cycle
11. Assistance in Accomplishing Program Development Cycle
* Specication
* Flowchart
* Development
* Document
* Integrate
* Release
* Maintain
Figure 1
SLIDE 2
I. Administration
* Programming Parts Warehouse
* Flexible, Efcient File Maintenance
* Common Inter-Center Environment
* Disaster Recovery Capability
* Maintenance of Statistics
* Authorization Scheme
* Minimum Hardware Requirements
* Time Accounting
* Management Report Network
Figure 2
SLIDE 3
II. Development
* Preprocessor Interface
* Central Library Facility
* Powerful—Efcient File Maintenance
* Positive Level Control
* What Used/Where Used Mechanism
* Delta Concept
* Unique Sequencing Scheme
* Powerful—Flexible Data Extraction
* Statistical Data Maintenance
* Authorization Scheme
* Support for any OS/360 Program
* Convenient Data Recovery Facility
* All Features of OS/360 Available
Figure 3
NATO SOFTWARE ENGINEERING CONFERENCE 196942 5.3 SUPPORT SOFTWARE FOR LARGE SYSTEMS
sion of CLEAR: the two together being known as CLEAR-CASTER. This system provides on-line access to the
information which the CLEAR system maintains using both typewriter and simple graphic display terminals. It
also provides a communications centre for passing messages between people.
The “Node Structure” referred to on slide 6 (Figure 6) is the means by which a filing system can be defined in
a hierarchical structure, probably closely akin to the development group’s organizational structure. Modules are
attached at nodes. Conversational processing covers such things as syntax checking. You can also use conversa-
tional mode in connection with standards checking and flowcharting.
SLIDE 4 SLIDE 5
CC
CASTER
Computer Assisted An Extension to Clear
System for Total A Development Tool
An Integral File System
Effort Reduction
An On-Line Keyboard—Graphic Terminal System
A Communication Center
Figure 4
Figure 5
The whole of the data base for your programming system is contained in structural form in the filing system, as
an interlinked set of nodes. The 56 possible classes of node are given in slide 7 (Figure 7). For example: a
node can contain a source code module, documentation to be used by technical writers, standards to be adhered
to in writing code, specications, etc. The second column indicates the types of data set available: source code,
delta, object code, listing of an assembly or compilation, information data set, etc. (The information data set
contains statistics concerning, for example, changes made to modules.)
SLIDE 6
CASTER Functions
Node Structure
Terminal Data Entry and Manipulation
Conversational Processing
Remote Job Entry and Reply
Figure 6
The next slide (Figure 8) indicates the facilities provided for programmers by the system. When a programmer
creates a module he copies into the beginning of it a set of module specifications which existed as a skeleton
data set in his library. Keywords have to be answered according to prompting information. Eventually this will
be joined by the source code and flowcharting information that he produces. Facilities for syntax analysis of
individual program statements are provided. A keyword data set can be given at a major node of a library to
hold a set of standards for the source code in that library. For example: labels might have to start with a certain
sequence of letters, program jumps relative to the current values of the instruction counter should be of limited
size, etc. A command could be used to check that the source code adhered to these standards. Conversational
debugging, which should be available in six months, is designed to help in the early development of a module
rather than during later stages of system development, since object code is executed interpretively. The phrase
“Library for Integration” relates to facilities for integrating source code modules developed in various different
programming centres around the world into a single system.
NATO SOFTWARE ENGINEERING CONFERENCE 1969 5.3 SUPPORT SOFTWARE FOR LARGE SYSTEMS 43
57
SLIDE 7
File System
Node Class Type ·
Module SRC
Macro DEL
Plan OBJ
Preface LST
Specication IDS
Message KWD
Documentation TXT
Control Info Module Class—
Form Module Specs
Standards PL/1
Source Code
Library . Comp. Module . Class . Type . Gen
}
Node Name
Figure 7
SLIDE 8
Support for Development/lmplementation
Programmers:
Correlation Among Module Specications, Flowchart, and Source Code
Syntax Analysis
Standards and Convention Checking
Conversational Debugging
Library for Integration
Figure 8
On slide 9 (Figure 9), a Defined (keyword) Dataset is in effect a questionnaire which is copied to a node and
then filled in, e.g. module specifications. Answers could be machine checked. Designers can update module
specifications and send messages alerting people to the changes. Similar facilities, concerning control informa-
tion, are directly available to management personnel.
SLIDE 9
Support for Designer/Planner/Architect
Dened Datasets Attached to Major Nodes For All Types of Information
Maintain Continuity of Design Information Throughout Development
Figure 9
NATO SOFTWARE ENGINEERING CONFERENCE 196944 5.3 SUPPORT SOFTWARE FOR LARGE SYSTEMS
SLIDE 10
Support for Management
Easy Access of All Control Information
Reporting
Automatic Message Transmission
Figure 10
SLIDE 11
Writers
Entry of Data
Entry of Control for Formatting Processor
Immediate Access of All Source Material
Text 360 Processor
Figure 11
58
Finally slide 11 (Figure 11) indicates that technical writers can also have access to information concerning, for
example, module specifications and flowchart statements associated with pieces of source code, and can use a
text formatting processor (currently TEXT/360) to help format documentation, written at the terminal.
Oestreicher: It would appear that the CLEAR-CASTER system could be very valuable to users, and could reduce the
machine time they use in developing large programs; is it available to them?
Brown: It is an internal tool, and to my knowledge there is no current intention to release it. A system like CLEAR-
CASTER requires extra machine time, which has to be balanced against the benefits that might accrue in the
long run to a complete development project. We haven’t proved yet, one way or the other, whether it will sig-
nificantly reduce the time taken to complete a project.
Scalzi: OS/360 is developed in a decentralized manner, using groups in 15 to 20 different places all around the world.
Our major problems have been not knowing all the interactions which exist between components, and not 59
having a structure which would enable us to dene an interface formally and then police its use. (For example,
we have found that tables that we laid out in 1966 are no longer adequate and we want to change them but are
not completely sure in all cases who uses them.) We are trying to get tools that will help with these problems.
We use the CLEAR system. We have a central library in Poughkeepsie where everything is collected. Everyone
sends programs into the central library for each release. When we come up with a mechanism for interface
control and monitoring we will do it in this one central location. One of our practical problems with CLEAR is
turnaround time. We are therefore very interested in CLEAR-CASTER, which is essentially “on-line CLEAR”.
Aron: We find that our projects often develop a CLEAR-like library control system which keeps track of what is going
on. We have an experimental timesharing system which is used for building system programs. The concept here
is a little bit different to the CLEAR-CASTER concept in that our system is intended for use from the beginning
of a project to the end, and it is intended to be an interactive program development tool in addition to being a
library control tool. Its major weakness at the present time is that you can’t extract yourself from it in order to
go into a batch operation.
60
NATO SOFTWARE ENGINEERING CONFERENCE 1969 5.3 SUPPORT SOFTWARE FOR LARGE SYSTEMS 45
Kanner: (from “Software engineering tools”) “If the premise is accepted that computer manufacturers’ establishments
have the most to gain from the introduction of software engineering tools, it is pertinent to ask how this introduc-
tion might be accomplished. Some enlightenment might be gained by observing the initial experiences of a
project manager trying to develop such tools, this work being done in a small research department of a not so
small computer manufacturer.
The project, which started out with the title System Programming Tools, was a direct response to pressures from
immediate management that might be paraphrased: ‘Make some tools for those guys out there,’ and quickly
discovered that those guys out there really did not want any tools other than possibly those of their own construc-
tion. In fact, the existence of about five small, possibly bootleg, implementation language projects was discov-
ered within two software production divisions of the company. The project manager came to the conclusion
that:
1 He should positively not produce any type of small tool that was already in production elsewhere, and
should probably not devote much effort anyway to individual tools.
2 He should direct his efforts to producing an integrated collection of tools operating as a single system in
the sense of, though not necessarily as ambitious as, CLEAR.
3 In any event, he should devote considerable time to studying the problems of software production with the
purpose of identifying the areas for which possible tools might provide the greatest assistance.
About this time, the name of the project was changed to Software Engineering Tools, and the bandwagon had
a passenger!
The obvious theme of these remarks is that there has as yet been regrettably little experience with the employ-
ment of tools in software production. There are gross uncertainties as to their cost, effectiveness and reliability.
In parallel with research on tools and techniques as such, a much more mundane sort of research should be
prosecuted: the systematic experimental application of software engineering tools to real or contrived software
projects for the purpose of evaluation and improvement thereof.”
NATO SOFTWARE ENGINEERING CONFERENCE 196946
61
6 SOFTWARE ENGINEERING EDUCATION
A session at the conference was devoted to discussion of this topic. In an opening speech Perlis proposed three
questions:
1 Is there a real distinction between software engineering and computer science?
2 Given that the answer is yes, is there a need for education in software engineering as a separate disci-
pline?
3 What form should university courses in software engineering take?
The discussion that followed ranged widely over these and other topics, including the question whether computer
science is well enough established to be taught to undergraduates and whether it has any discernible basic prin-
ciples.
The majority of the discussion is reproduced, subject to the customary amount of editing, in the following section.
(A quotation from Strachey given in section 4.1.6 is also relevant to this subject).
Perlis: The first question to which we might address ourselves is: Is there a difference between software engineering
and computer science? I suspect there is a big difference between them and so do some other people. Doug Ross,
for example, has devoted a great deal of effort in his own bailiwick and has been driven out of the temple (by
the money changers) still firmly believing there is something called software engineering. What he practices, be
it software engineering or not, is certainly quite different from computer science.
If there is a subject called software engineering, I think we ought to ask ourselves if we need an output from our
educational system different from that which we are now producing. I would argue that, in the United States at
least, we are not producing software engineers; indeed our general organized Ph.D. programs are going to make
it difficult for us to produce software engineers and the situation is likely to become worse as time goes on. So,
if there is a distinction between computer science and software engineering and a need for people trained in the
latter, then half the universities had better start doing something about it.
In computer science, at least in the United States, we do have a large number of quite good Ph.D. programs—
good in the sense that they are rapidly accelerating towards ossification, which establishes in a reasonable way
their legitimacy. I think that all of us who are in universities at least have a pretty good understanding of the
nature of a computer science doctorate program: a healthy dose of logic, automata and computing theory, a
diminishing dose of numerical analysis, one or two courses in advanced programming of one sort or another,
some artificial intelligence, and some of this and some of that. Then one does thesis topics in any of the areas
that are covered by Computing Reviews.
Evidently computer science is able to generate its own problems, understood and appreciated by only its own
people. There doesn’t seem to be any shortage of Ph.D. thesis topics in the Ph.D. area; there doesn’t seem to
be any shortage of positions for people educated in such programs in 61 other Ph.D. programs in computer
science, so everything is really quite healthy in the academic sense.
But is there something else: a different point of view, a different emphasis that we find in computer science
programs both in industry and in the universities?
Bauer: We have had a committee in Germany working on a curriculum. We have called the subject “Informatik”. The
course will include both theoretical work and workshops in programming. We expect our students will have the
choice of becoming either computer scientists or software engineers.
Feldman: I occasionally do a certain amount of work in industry and find out some surprising things in this way.
For example: practical people do not read the literature, even though sometimes there are real solutions to their
problems to be found there. The people who have been through an educational program in computer science
seem more effective in this sort of respect.
NATO SOFTWARE ENGINEERING CONFERENCE 1969 6 SOFTWARE ENGINEERING EDUCATION 47
We are trying to face up to this problem at Stanford by setting up a degree course in applied computer science,
aimed at producing effective people for industry. Now suppose we give this a first degree, can people really
choose between theory and practice as a career? I think not; I think it is very hard for people with a natural
tendency in one direction to move in the other.
Perlis: I agree with Feldman that one does not become a theoretical person by studying mathematics or a practical
one by ignoring it. That’s not really an issue. The real issue is: what are the important problems and how much
effort do we sink into them? The way Ph.D. programs are organized in computer science it is inconceivable
for a professor and for his students to sink, for example, five to seven years on a long term project. In almost
no department of computer science was it required that every student take a course in operations research and
management science and yet I claim that to be a fundamental course in software engineering; as fundamental as
automata theory and more fundamental than any mathematics course I can think of.
Galler: I don’t think it’s unheard of for a professor to work with his students for several years on a project. Some of
our students have been around for seven years working on system projects; some of them get so involved they
never finish.
I would like to describe a course which we’ve given twice now, and which I think is a software engineering
course. We have taken either two or three professors as a team with 20-25 students and given them a project.
The first was a mathematical graphics system, the second was a BASIC system. We’ve given them the complete
job of designing, stating the specifications, dividing up into groups of two or three each, implementing, describ-
ing their work to each of the other groups, designing interfaces, documenting and making the thing work. In
each case the product was something that was almost useable; in one semester you can’t necessarily complete
something of that scale. This kind of experience goes beyond writing a small class project type compiler and
gives a kind of software engineering experience. I think it can be done, and I think maybe one should begin to
recommend that for a curriculum.
Ross: This is the same as teaching electrical engineering by building a 63 crystal set, then a one-tube receiver and
then something else. That was indeed the way it started but not the way it is now. It isn’t the proper way to set
about teaching an engineering subject.
Falkoff: I think that software engineering is too restrictive a name for the curriculum; it must include some hardware
work. Also, I always thought that engineering had to do with economics questions; it seems quite essential that a
discipline which has to do with problems of complex use of resources should contain some operations research
and related courses.
Needham: I have a cautionary tale which supports in many ways what Perlis said at the beginning. A few years ago our
graduate students took part in a large project; they did things that fitted in with other people and they worked all
hours and they wrote a lot of programs in an imaginative way, but with very strict discipline on the interfaces.
Academically it was not a success. It didn’t lead to prompt or very excellent theses, but on the other hand the
people produced were perhaps the best contribution to the software industry we could have made.
Aron: The field of software engineering is mainly concerned with people writing programs for money. The expense
on education is an overhead which is normally minimized to a standard level; programmers understand how to
apply one high level language or maybe a macro-assembler to a real problem. The deeper concepts may never
reach them. .
McClure: Universities have a considerable problem with which I sympathize and yet I condemn them. I have watched
this at close range. Let me see if I might illuminate the problem to see where some of the solutions might pos-
sibly lie. I think it’s at the heart of whether there is a dichotomy between software engineering and computer
science. I believe that the computer science departments are turning out a reasonably high grade of individual,
you might call them computer scientists, most of whom go into stocking the faculties of other computer science
departments. This has been true of a number of other disciplines as well—the medical schools have had the
situation. In fact some medical schools specialize in turning out faculties for other medical schools. I think that
part of the problem lies in the fact that there are really two classes of universities, at least in the United States.
We might describe them as those that are in and those that are out. Having been associated with one that would
have to consider itself out I can speak with some authority. It seems that the ones that are in are determined
to maintain their in-status. Those that are out desperately want to get in, which they feel they can best do by
NATO SOFTWARE ENGINEERING CONFERENCE 196948 6 SOFTWARE ENGINEERING EDUCATION
emulating those that are in rather than charting for themselves an independent course of action which would suit
their local purpose.
Most of the ones which are spread around the United States are community and industry supported, and industry
urgently needs their output. The intent of these graduates is to go into and man the works of all these places
as they do in electrical engineering and other disciplines. Now in fact, however, external support of universities
hinges to a large extent upon their relative reputation. The industries don’t make independent judgements for
themselves as to the quality of the product but look at the universities’ relative ranking among other academic
institutions. These, of course, are judged by other academics.
Let me say why I think this leads into a difficulty. Graduates with bachelors degrees in engineering traditionally
are equipped with a bag of 64 tricks that they’re willing to perform for their employer. Their employer knows
that, if a man has a bachelors degree in engineering, he is capable of doing certain things. A masters degree
means that he is capable of doing more tricks, and a doctorate in engineering means that he is capable of yet
additional tricks. Now on the other hand, Ph.D’s are supposed to be capable of extending the state of the art,
as contrasted with doctors of engineering who are merely capable of performing high class tricks. At the pres-
ent time most people feel that they cannot succeed academically without getting Ph.D’s. In fact graduates them-
selves only want Ph.D’s because doctors of engineering are looked down upon—when in fact industry most
desperately requires doctors of engineering because it has shops that it must man. It wants people not capable
of extending the frontiers in science in some abstract theoretical sense but people who are knowledgeable about
what really goes on.
We have said that teaching OS/360 is in a sense bad, because OS/360 is a bad system. On the other hand, medical
schools reliably teach pathology— disease structures. The only way one can learn to recognize mistakes is by
studying things that are wrong. That means that you must study listings and study documents much as a medical
student spends many hours poring through a microscope. This is very painful and unfortunately it’s not glamor-
ous but it’s at the heart of what I call software engineering. Until universities get around to believing that in
fact there is a requirement for people who really understand how things happen we’ll not make any progress in
an engineering discipline. We may make a great deal of progress in computer science, but we’ll not make any
progress in software engineering.
Teitelman: I agree with McClure’s remarks on the relative status of the Ph.D. and doctor of engineering. Speaking
from personal experience, when I had to choose what program to follow in school, one of the factors that influ-
enced me was the knowledge that the Ph.D. meant something in terms of status and freedom that might perhaps
outweigh the merits of an engineering program.
Ercoli: Those who have to be trained to use computers in accountancy don’t need to study automata theory or some
theoretical substitute for it. We need to train these people: it is far more urgent than training more scientists or
engineers to use computers.
Oestreicher: I think that one thing which is happening in universities is that they are becoming more down to earth. I
have often heard of compilers and even operating systems coming out of universities which, if they hadn’t been
done by so few people, might have been thought to be large software projects.
The only contribution we can make in industry is to expose young people to the problems they meet in industry,
without discouraging them too much. They need to be allowed to make their own mistakes in order to learn;
they need to be exposed to customers and so on. Quite often they respond by doing things you thought to be
impossible!
Dijkstra: A Dutch definition of a university professor is someone who casts false pearls before real swine!
Otherwise my position differs greatly from that which Perlis describes. I am engaged in teaching, at graduate
level, in producing one variety of “mathematical engineers”. The most powerful test that I know of for an 65
applicant to be one of my students is that they have an absolute mastery of their native tongue: you just need to
listen to them.
I find it difficult to find worthwhile research subjects and think it wrong to teach material which I know will be
obsolete in a few years. What finally remains isn’t so much. You have to teach a grasp of method, a sense of
NATO SOFTWARE ENGINEERING CONFERENCE 1969 6 SOFTWARE ENGINEERING EDUCATION 49
quality and style. Sometimes you are successful. This cannot be all of computer science or software engineering.
It may well be that it is a rather small subject but it may take very good people to work in it.
A neglected part of software engineering is the area of hardware design. If a software engineer cannot specify
hardware design, who can?
Strachey: Computing science has been under some attack on the grounds that it isn’t software engineering. I propose
to attack it on different grounds. I think we should seriously ask ourselves the question: is computing science?
Recently I did a small survey as to whether computing is suitable as an undergraduate subject in an English uni-
versity. I did this by grading all the topics I could think of under the headings of relevance and state of develop-
ment. The premise is that it is clearly wrong to teach undergraduates the state of the art; one should teach them
things which will still be valid in 20 years time: the fundamental concepts and underlying principles. Anything
else is dishonest.
The gradings for relevance ran from “clearly relevant and essential” to “part of another subject” (like numerical
analysis) and those for state of development from “well developed with theorems, laws and text books” to “a
fruitful field for research”. Note, incidentally, the importance of text books. They are designed to be taught from;
they are quite different from treatises and even further from research papers. Now, it turned out that all those
subjects which score highly for relevance score very low on state of development and vice versa.
Until we have a sufficient body of topics which are important, relevant and well developed we cannot call the
subject a “science”. I am quite convinced that in fact computing will become a very important science. But at
the moment we are in a very primitive state of development; we don’t know the basic principles yet and we
must learn them first. If universities spend their time teaching the state of the art, they will not discover these
principles and that, surely, is what academics should be doing.
I do not for a moment underestimate the importance of the state of the art in engineering. Clearly it is essential
and furthermore from engineering practice we must get our experience and material from which we develop
theory. But, before teaching students we must get our basic principles right.
Woodger: I wonder what a basic principle in computer science would look like if I saw one. Seriously, in what terms
might it be expressed? It’s no good using unexplained terms like “language” or “compiler”; we have very few
clear terms in which to express any fundamental principle of computer science. Would any professor here tell
me a single basic principle?
Perlis: Some principles: every interesting program has at least one variable, one branch and one loop. An interesting
program is one whose number of execution steps is not linearly proportional to the length of the text.
Strachey: And at least one bug!
Perlis: No, I don’t accept that that is a principle.
66
Woodger: Well, the concept of “variable” is far from trivial, at the least.
Falkoff: I’m not a university professor but I would like to say something about basic principles. Last summer we
assembled a group of school mathematics teachers and set out collecting material to give them a basis for work-
ing with APL in teaching high school mathematics. We found there were only a few essential notions that the
pupils needed in order to use a programmable machine. These were:
1 The notion of assignment, which I think covers the idea of a variable.
2 The notion of a conditional expression or branch.
3 The notion of function definition.
I propose that these three ideas are central to computing and will remain so.
Gotlieb: One basic principle with regard to programs is that execution time and store utilization are interchangeable.
In a good program, you can improve one only at the expense of the other.
NATO SOFTWARE ENGINEERING CONFERENCE 196950 6 SOFTWARE ENGINEERING EDUCATION
The problem of lack of text books was discussed by Lampson.
Lampson: In my experience of trying to teach this subject in university, one of the most annoying aspects is that there
is nothing to teach it from. You sit down to teach a course, any course, and you have to start from scratch. You
have to think for yourself about what to do, and the amount of time it takes to do a quarter-way decent job is
more time than you can afford to spend on preparing one course. It seems to me that the situation could be
improved. There are several areas in which very substantial contributions could be made by a small group of
people, working for two or three months, trying to produce a document which would describe, in some sense,
some essence of the state of the art. I suggest three areas in which this could profitably be done
1 What programming is all about.
2 The basic technology for writing compilers (not just for describing programming languages).
3 The basic principles for writing operating systems.
The right group of three or four people, working for two or three months, could produce a document of perhaps
150 to 200 pages that would really serve as a standard for the field, in that it would provide a base from which
one could teach, and in many cases a base from which one could talk and think. This would eliminate a great
deal of our terminological difficulties and a great deal of the re-thinking that one has to do when one embarks
on a new project.
The attempt should be to tell what is known, not to break new ground and not to produce a complete or finished
work in any sense; that would be disastrous. Neither do we need to produce anything like Knuth’s books, for
which I have the greatest admiration, but which can only be viewed as an encyclopaedia. I feel very confident
that this could be done.
Schorr: I could provide facilities for such an enterprise.
NATO SOFTWARE ENGINEERING CONFERENCE 1969 51
67
7 WORKING PAPERS
7.1 List of working papers
Aron, J. D. Estimating resources for large programming systems
Aron, J. D. General remarks on Apollo programming support
Bauer, F. L. and Goos, G. Requirements for programming languages for basic software
Bauer, R. Towards computer-aided production of large application programs
Bemer, R. W. Straightening out programming languages
Bemer, R. W. A note on software specifications
Bemer, R W. A note on implementation correctness
Bemer, R. W. A plea for consideration of computing as it will be, not was
Brown, W. S. Software portability
Burkinshaw, P. How to avoid some pitfalls in software project management
Buxton, J. N. A note on sharing software
Clingen, C. T. Program naming problems in a shared tree-structured hierarchy
David, E. E. Adoption of new tools and methods in creating large systems
Dijkstra E. W. Structured programming
Donner, H. Systems for multiple or changing environments; properties required for software portability
Ebbinghaus, K. Organization and human factors
Falkoff, A. D. Criteria for a system design language
Feldman, J. A. Towards automatic programming
Galler, B. A. Construction of generators to produce programs for specific applications
Galler, B. A. and Perlis, A. J. Criteria for the design of a language
Gotlieb, C. C. and MacEwen, G. H. System evaluation tools
Hoare, C. A. R. An axiomatisation of the data definition features of PASCAL
Hoare, C. A. R. The problems of software development
Holmann, F. Computer-aided software production for process control
Hopkins, M. E. Computer aided software design
Italiani, M. On progress control of a software project
Kanner, H. Software engineering tools
Kanner, H. Tools
Kjeldaas, P. M. Facilitating efficiency and generality by using run time information in compilation
Lampson, B. W. On reliable and extendable operating systems
Lang, C. A. Languages for writing system programs
Lemma, A. and Rossi, E. The production cost of the software for little programming systems
Lowry, E. S. Proposed language extensions to aid coding and analysis of large programs
MacGowan, Jr., J. M. UNIVAC 1108 instrumentation
Needham, R M. Software engineering techniques and operating system design and production
Needham, R. M. and Aron, J. D. Software engineering and computer science
Oestreicher, M. D. Operating systems
Poole, P. C. and Waite, W. M. Machine independent software
67
Randell, B. Interacting sequential processes
Reenskaug, T. Some notes on portable application software
Reynolds, J. C. A set-theoretic approach to the concept of type
Ross, D. T. Reproduction of slides for bootstrapping of the AED system
Schorr, H. Compiler writing techniques and problems
Schwartz, J. I. Report on literature search on management
NATO SOFTWARE ENGINEERING CONFERENCE 196952 7.2 ESTIMATING RESOURCES FOR LARGE SYSTEMS
Schwartz, J. I. Analysing large scale system development
Seegmüller, G. Definition of systems
Sharp, I. P. Systems design for a changing environment
Teitelman, W. Toward a programming laboratory
Thompson, K L. Software quality control at Michigan State University
Tixier, V. O/S writing systems
Ulrich, W. Design of high reliability continuous operation systems
van der Poel, W. L. A simple macro compiler for educational purposes in LISP
Warshall, S. Software portability and representational form (abstract)
Wiehle, H. R. Means of communication in operating system 1/TR440
Wirth, N. The programming language PASCAL and its design criteria
Woodger, M. and Duncan, F. G. An overdue comment on ALGOL 60
7.2 Estimating resources for large programming systems
by
J. D. Aron
Abstract
This paper presents a Quantitative Method of estimating manpower resources for large programming jobs which
represents a simple, feasible guideline. The method combines program structural data with historical data on
the productivity of programming groups. This data is then adjusted to cover non-programming resource require-
ments. This is not a precise method and, in fact, it is not as good as an estimate based on sound experience. But
it is offered as an aid to estimators working in unfamiliar areas and as a verification of estimates obtained by
other methods.
Introduction
It is very common for the cost and schedule of large programming systems to exceed initial estimates. This is most
often due to changes in the functional specifications but, even where the specification is fixed, it is difficult to estimate
software resource requirements accurately. Not only does the main resource—manpower—vary widely in productiv-
ity and quality but the secondary resources, such as machine time and publications support, are frequently unavailable
at the appropriate times. Most important, every large system is an aggregate of so many elements—program modules,
organizational interactions, logistics, etc.—that no manager can precisely determine the amount of work to be done.
On the other hand, managers of some large jobs, such as the Mercury-Gemini-Apollo mission support systems, have
learned how to meet rigid schedules successfully. By examining the methods used in successful areas, it is possible to
draft guidelines for use on new projects.
69
This approach has been taken by IBM’s Federal Systems Division (FSD). It draws on FSD experience in many large
jobs since 1959 as well as on other relevant background. The result is a set of guidelines that, while subject to error, are
useful for arriving at a quantitative estimate of manpower resources.The method is taught in the FSD Programming
Project Management Course, where it has been recommended as an aid to estimating projected work (during proposal
or early design stages) and as a cross check on estimates of work in progress. Among the more than four hundred
managers who have taken the course were many experienced managers who corroborated the quantitative guidelines
and few who contradicted them.
Large systems dened
For the purpose of this paper, a large programming system is a “structured aggregate of elements that satisfies a set of
functional and performance specifications” and that requires
• more than 25 programmers
• more than 30,000 deliverable instructions
• more than six months’ development time
• more than one level of management.
NATO SOFTWARE ENGINEERING CONFERENCE 1969 7.2 ESTIMATING RESOURCES FOR LARGE SYSTEMS 53
Programming
System
Data Scheduling
Computation Management
Subsystem Subsystem
Subsystem
Storage Telemtery Manual
Management Package Input
System
Package Package
Various Levels of Programming
Subsystem
Pulse Temperature Respiration
Subpackage Subpackage Subpackage
Data Edit
High Low
Normal
Temperature Unit
Unit Temperature
Unit Unit

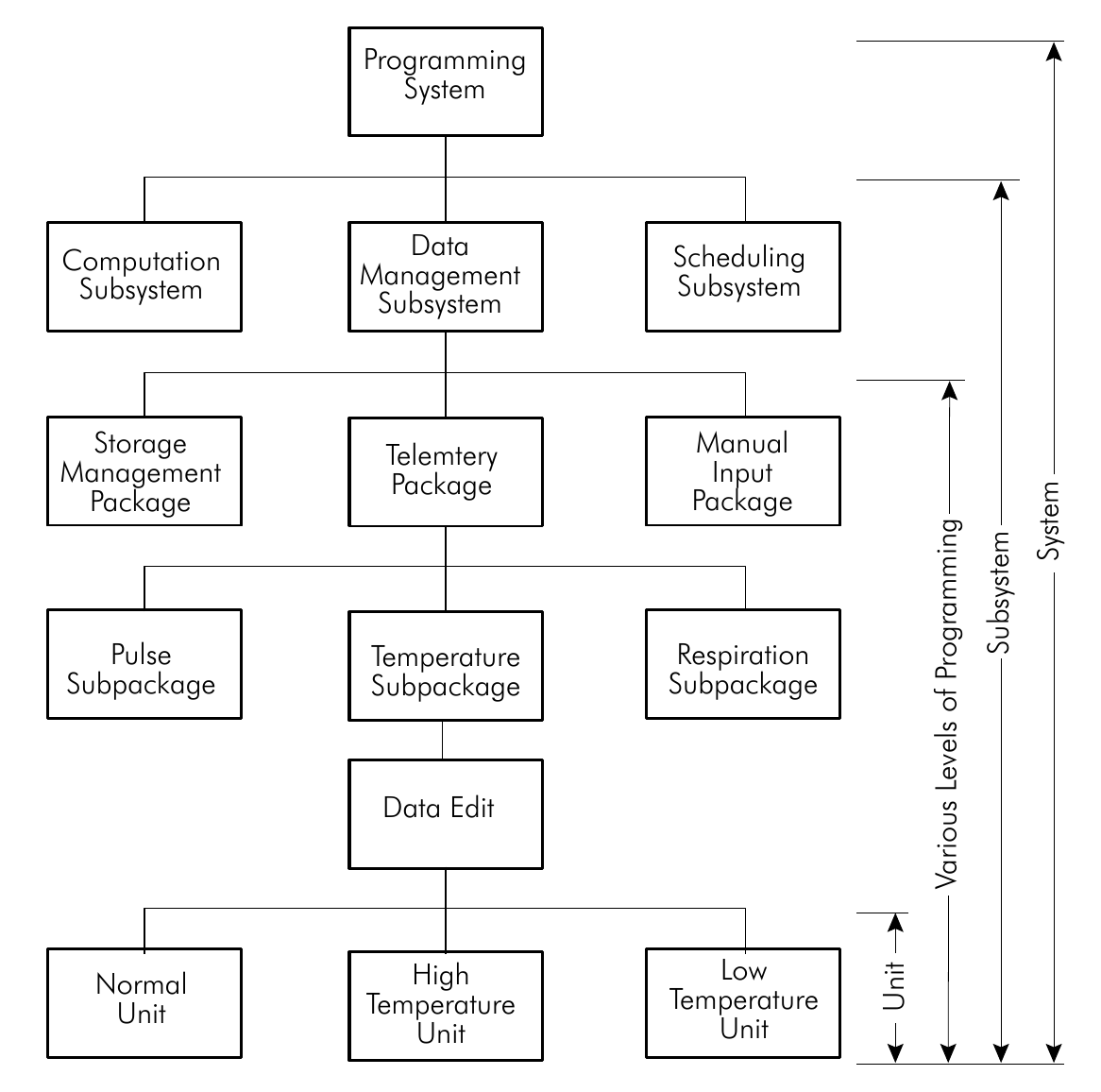

Figure 1. Organization of system components
70
These arbitrary parameters describe a system which has enough elements interacting within it to create a management
problem. Such systems are large enough to absorb the imprecision of a quantitative estimating system. For example, if
there are 25 programmers it is possible to ignore their individual differences and use an average productivity parameter
in a quantitative formula. The very size that creates large system problems is turned to advantage.
A system contains subsystems which are further divided into smaller hierarchical structures until the smallest pro-
gramming element is reached (Figure 1). The smallest element is referred to as a “unit” in later sections.
System design consists of defining the components and their interactions; the definition is a “specification.” Detailed
design consists of defining the subsequent lower levels of the structures until each unit is described in terms of its
function and performance. Detailed design of a single unit is done by the implementing programmer; therefore, the
unit can be viewed as the smallest element of interest to the system architect. This last point is significant because,
although different designers work to different levels of detail, each designer is rather consistent in deciding when to
stop designing and hand the work over to the programmer:
NATO SOFTWARE ENGINEERING CONFERENCE 196954 7.2 ESTIMATING RESOURCES FOR LARGE SYSTEMS
System development life cycle
The system is built according to a life cycle, as shown in Figure 2.* The life cycle shows the activities that must
take place in system development and the level of manpower required to do the job. The chart is truncated at both
ends, omitting concept formulation at the beginning and maintenance and improvement at the end. The slope of the
boundaries in the upper half of the chart represents the fact that activities overlap; some programming may 71 start
before all packages have been designed or some test and integration may begin before the last unit is debugged.
30 40 30
DESIGN IMPLEMENT TEST
Package System
Integration Integration DEVELOPMENT
and and PROGRAMMERS
Test Test
Unit Test
RESOURCES (Debugging)
Code
System Detailed Acceptance
Design Test MANAGEMENT
AND
Package SUPPORT
Management, Control, Test Development,
Standards, Documentation, Simulation
Training and Education, Liaison,
Administration, etc.
START TIME DELIVER

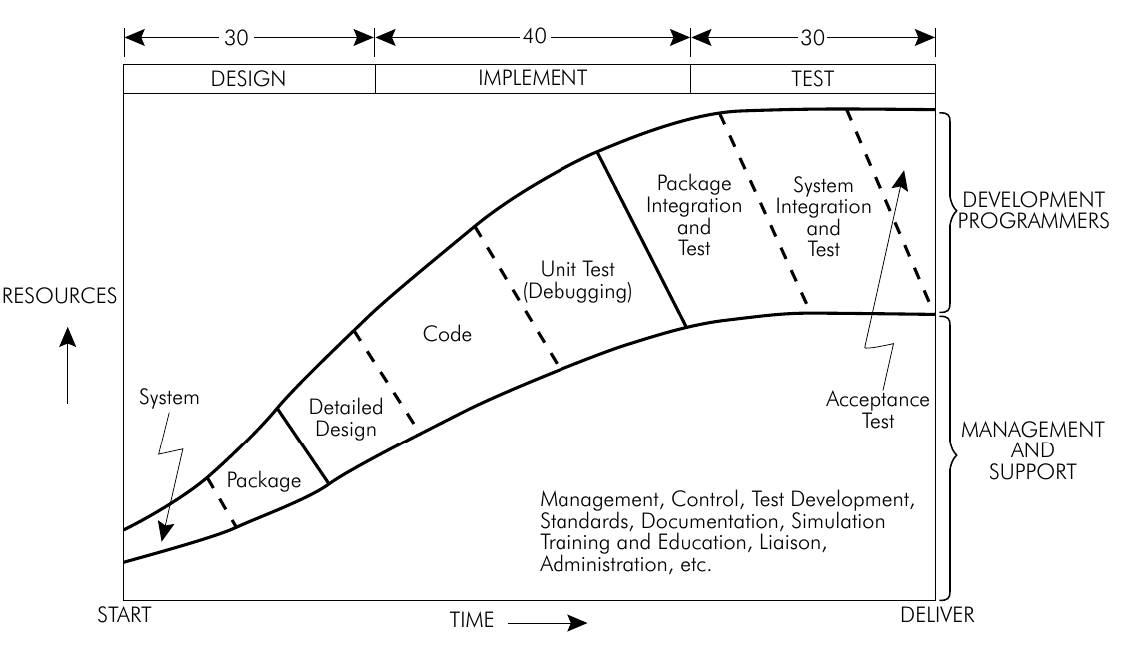

Figure 2. System Life Cycle
Certain gross features of the life cycle are important when using a quantitative estimating guideline because the result
of the estimate applies only to certain parts of the chart. The total estimate is an extrapolation based on the following
simple ratios:
1 The ideal project is planned so that about 30 per cent of the elapsed time is used for design, 40 per cent
for implementation and 30 per cent for test. (Maintenance, which is omitted from consideration here,
continues throughout the life of the program.)
2 The management and support resources are 40 to 50 per cent of the total resources.
3 System design resources are negligible compared to total resources. (This point is made simply because
the quantitative method does not consider system design resource requirements explicitly since they can
be ignored for practical purposes.)
4 The duration of the project is determined by the manager to meet a delivery commitment or to allow
orderly recruiting. (The formulae produce estimates of man-months. It is up to the manager to spread them
according to a schedule.)
5 The life cycle chart includes all the manpower resources needed to do a specific job. It includes manage-
ment and clerical support assigned full time to the job but does not include headquarters management or
other manpower that may have an occasional responsibility in the project. Neither does it include over-
head activities, such as machine operations, publications, etc., which are used as a service.
*This chart and much of the background material is adapted from Mr. A. M. Pietrasanta’s work at IBM on programming system
development. The System Development Corporation’s (SDC) Programming Management Project, under Mr. V. LaBolle and others,
and the FSD Programming Project Management Course and Guide, prepared by Mr. P. W. Metzger, were also referenced.
NATO SOFTWARE ENGINEERING CONFERENCE 1969 7.2 ESTIMATING RESOURCES FOR LARGE SYSTEMS 55
Methods of estimating
Before describing a quantitative guideline, it is necessary to re-emphasize that a “guideline” is just that. It cannot be
more than an aid to decision making. As Mr. Pietrasanta said in his paper “Resource Analysis of Computer Program
System Development,”
“The problem of resource estimating of computer program system development is fundamentally qualitative
rather than quantitative. We don’t understand what has to be estimated well enough to make accurate estimates.
Quantitative analyses of resources will augment our qualitative understanding of program system development,
but such analyses will never substitute for this understanding.”
This is why, when methods of estimating are ranked, the list is headed by the Experience Method Experience on a
large programming system can be carried forward to similar systems. An ability to anticipate resource requirements
and a cautionary attitude toward contingencies are part of one’s experience. As long as a manager does not try to apply
his experience to a larger or substantially different job, he can do no better than to base his estimates on experience.
The remaining methods are substantially less reliable, including the Quantitative Method described later. In order of
desirability, the methods are: Experience, Quantitative, Constraint, Units of Work.
Experience method
This approach takes advantage of experience on a similar job. In order to use the method, the new job must be clearly
specified, at least down to the package level. This permits the estimator to compare the new system to one or more
completed systems. At this point, the estimator can assume that like tasks take like resources. He can obtain the base
data from his own 72 experience or from that of other people as long as he knows he is comparing genuinely similar
projects. If the two projects are alike in size and content, minor differences in algorithms or utility routines can be
allowed for by adding a contingency factor to the total estimate: the contingency factor should be less than 25 per cent.
As in any method, it is wise to lay out the design in detail to permit the men who must implement the job to make their
own estimates on their portion of the job. Their estimates will also be based on experience and should be more precise
than the total estimate. In other words, two similar orbital mission systems of 150,000 instructions each may be within
25 per cent of one another in effort. Two telemetry data processing programs of 1000 instructions each may appear in
these systems. A specialist in telemetry data processing should be able to estimate his tasks to within 10 per cent.
The major problem in the method is that it does not work on systems larger than the base used for comparison. System
complexity grows as the square of the number of system elements; therefore, experience with a small system cannot
account for all the things that will have to be done in a large system. Neither will the Experience Method apply to
systems of totally different content. The Quantitative Method is applicable in such cases.
Quantitative method
The Quantitative Method to be described in this paper is based on programmer productivity in terms of the number
of deliverable instructions produced per unit of time by an average programmer. The deliverable instructions include
the source statements and data descriptions written by the programmer in a macro-assembly language. The method is
not precise; it is necessary to adjust the answer by large amounts (see Factors affecting the estimate). The estimator
should never allow himself to treat the answers as anything other than approximate representations of system size or
manpower requirements.
Constraint Method
This method is equivalent to taking an educated guess. Based on schedule, dollar, or manpower constraints, the man-
ager simply agrees to do the job within the constraints. His decision is unrelated to the design complexity of the
system. The merit of this approach is that it is often possible and, in some cases, beneficial for the user and the devel-
oper to reach mutual agreement on the constraints. Once agreed, they can proceed to define a set of specifications
which can be achieved within the estimate. In cases in which either party does not understand the consequences of
constraint estimating on product specifications there is great risk of overrun.
Referring again to Mr. Pietrasanta, he points out that a given set of specifications will require a certain number of
man-months to produce. These man-months can be spread over a short or a long period of time. If the man-months are
not available, though, the specifications will have to be reduced in scope or the job will not get done. The Experience
NATO SOFTWARE ENGINEERING CONFERENCE 196956 7.2 ESTIMATING RESOURCES FOR LARGE SYSTEMS
Method and the Quantitative Method assume that specifications are fixed and that the man-months are estimated to
satisfy the specification. The Constraint Method, if properly used, holds the man-months fixed and varies the specifica-
tion to fit.
Units of work method
The history of small programming efforts, particularly in administrative and business data processing, shows far better
estimating performance than large systems. This seems to be due to the use of a special case of the 73 Constraint
Method, which is called “Units of Work” for lack of a more descriptive name. In this method each programming
task is dened in such a way that it takes one programmer 4 to 8 weeks. Each task is designed, implemented and
tested independently of all other tasks. This approach eliminates the interactions that cause trouble in large systems
but programs written this way cannot be linked to form a large system. The purpose of mentioning the Units of Work
Method here is to highlight its limitations and to suggest a better method to estimators with large systems to build.
Factors affecting the estimate
An estimate prepared by any method is based partly on fact and partly on assumption. It also contains errors due
to imprecise inputs. Managers are advised to make sure that every estimate they prepare or review contains enough
information. As a minimum they must know how the estimate was prepared and what the input data was. In addition
they need the assumptions and the contingencies used by the estimator. With this data the managers can evaluate the
estimate and make knowledgeable judgments. If they decide to reduce the estimate, they know how far they can go in
trading cost for risk. They also know where they can reduce risk by changing an assumption, for instance: substituting
a more experienced programmer for a weak one. The result of their evaluation will be a commitment to perform the job
for a given price. (Whereas an estimate may contain a contingency factor, a commitment does not.) Since managers
depend for their success on the successful performance of their people, good managers invariably use the assumptions
and contingency data to improve the project. The employee must have enough confidence in his manager to believe
this, or else he will hide a little “fat” in the estimate and not admit it.
The variables in estimating are so large they cannot be ignored. The SDC Programming Management Project spent
several years analyzing a large amount of historical data to identify the factors that affect programming cost the most.
Starting with 104 variables in the programming process, they obtained statistical data showing 11 to be significant
enough to use in estimating indices. Although the Quantitative Method does not use the indices, it does recognize
that the variables can affect the estimate and it permits major adjustment of results. The key variables fall into three
groups:
1 Uniqueness
2 Development environment
3 Job type and difficulty.
Uniqueness is concerned with the familiarity of the development team with the hardware, software and subject matter
of the project. If they are unfamiliar with any of these because they lack experience or because the item is new in
the field, the cost of the project will increase by an unknown amount. Development environment involves customer/
programmer capability, working relationships and organization. Development environment also involves geographic
dispersion and working facility quality. Weak people, poor communications channels due to organization or disper-
sion, unpleasant facilities, etc., increase cost by reducing productivity. These two groups of variables must be evalu-
ated by the manager and reduced to a single factor, which he uses to modify the estimate. The adjustment in the
Quantitative Method can range from about—25 per cent if all the factors are favourable to +100 per cent if all are
unfavourable. The adjustment is chosen subjectively, based on a judgment of how much the factors differ from the
norm for the estimator’s organization.
74
Job type and difficulty deal with the number of system interactions due to program and data base elements and the
relative difficulty of various types of programs. These variables are accounted for in the quantitative formula.
NATO SOFTWARE ENGINEERING CONFERENCE 1969 7.2 ESTIMATING RESOURCES FOR LARGE SYSTEMS 57
Quantitative estimating procedure
The quantitative estimating procedure starts with a design. The degree of detail in the design depends on how much
time is available. At proposal time the system design may be completed only through the package level. After the
job has entered the design phase, re-estimates can be based on lower levels of detail. At any stage, some structural
detail is required for the size of the system to be determined. At least one package in the system should be laid out to
the unit level. The package selected for this purpose should be the one considered the most difficult by the estimator.
The detailed design of this computation accomplishes two things: it ensures that there are no mathematical or logical
problems in the package that cannot be handled and it gives a measure of system size. It is important that, since a large
system involves many man-years of effort, it is worth the trouble of a good design at the start.
After the rst step of system design, the process proceeds to:
• Estimate number of deliverable instructions
• Estimate difficulty of programs and duration of project
• Determine man-months for programming
• Adjust for higher-level language
• Extrapolate man-months for the project
• Adjust result
• Schedule effort.
This procedure is repeated at a frequency of the order of once a month to obtain increasingly better estimates as the
project develops.
Estimating number of instructions
The key to estimating system size is found in the design. Since the system is an aggregate of elements, its size can be
determined by counting the number of elements and multiplying the result by the average element size.
Deliverable instructions = number of units × average unit size
The number of units is estimated from the design by carrying at least one package design down to the unit level. This
shows how many units are required for that particular package. The number of units in other packages or programs
can be estimated by:
• Experience with similar packages
• Sketching the design for the package
• Using the same number obtained for the base package. The number of units in the system is simply the
sum of the units in the packages.
The average unit size depends on the operating habits of the designers. Typically, units written in assembly language
contain 400 to 1000 instructions. The average length is becoming smaller as modular programming is emphasized.
Units written in high level language are about one-fourth the size but generate deliverable programs of comparable
size. Although this is a wide range, any individual manager, designer, or architect tends to normalize his design so that
the resulting units fall within a narrow range. By examining his habits he can determine the average unit size that he
assigns to his people. The average is perfectly adequate for the purposes of the quantitative estimate.
75
Estimate difculty
Some programs take more time to program than others. Three levels of difculty: easy, medium and difcult, are used
to improve the estimate. The three levels result from many factors in the job, but they are conveniently
characterized by the number of interactions found in various program classes.
1 Easy—very few interactions with other system elements. The class includes most problem programs or
“application” programs. Any program the main function of which is to solve a mathematical or logical
NATO SOFTWARE ENGINEERING CONFERENCE 196958 7.2 ESTIMATING RESOURCES FOR LARGE SYSTEMS
problem is probably in this class. Easy programs generally interact only with I/O programs, data manage-
ment programs and monitor programs.
2 Medium—some interactions with other system elements. In this category are most utilities, language com-
pilers, schedulers, I/O packages and data management packages. These programs interact with hardware
functions, with problem programs, with monitors and with others in this class. They are further compli-
cated by being generalized enough to handle multiple situations: e.g., I/O from many different I/O devices
or management of data files with variable numbers of indices.
3 Difficult—many interactions with other system elements. All monitors and operating systems fall in this
class because they interact with everything. Special-purpose programs such as a conversational message
processor may be in this class if they modify the master operating system.
As a project proceeds, the implementers learn their job better. The “learning curve” is the rate of improvement. The
productivity data in Figure 3 shows that the rate of improvement for easy and medium programs is good, but difficult
programs are still hard to produce after many months of experience.*
In the Quantitative Method the degree of difficulty determines the productivity values to be used. Figure 3 shows
the levels of difculty (rows), numbered 1, 2, and 3. One way to estimate difculty is to pick a value from 1 to 3
representative of the overall character of the system. If the result is a decimal fraction, interpolate between rows of the
table.,The second way to estimate difculty is to break the instruction count into three parts, estimating the number
of easy units, medium units, and difcult units separately. Then calculate the man-months for each batch and total the
results.
Duration
6-12 12-24 More Than
Months Months 24 Months
Difficulty
Row 1 Easy 20 500 10,000 Very Few
Interactions
Row 2 Medium 10 250 5,000 Some
Interactions
Row 3 Difficult 5 125 1,500 Many
Interactions
Instructions Instructions Instructions
per per per
Units Man-Day Man-Month Man-Year
Figure 3. Productivity table
* The data in this table summarizes historical data from IBM projects involving system programs—1410, 7040, 7030,
System/360 OS/PCP-and application systems — Mercury, SABRE, banking and brokerage, FAA. It has not been formally vali-
dated, but it has been informally checked against other IBM and some non-IBM estimates. It is interesting to note that the contents
of the table seem as good in 1969 as they were in 1960. It is not clear why this is so. There are several speculations to explain the
apparent lack of any increase in productivity in the industry:
I The capacity of the computer to give improved debugging service limits the programmers’ output.
2 Untrained programmers enter the eld at such a rate that the average ability to use programming knowhow is equivalent to about
one year’s experience.
3 Programmers fail to learn better methods.
And, the thought that I favour:
4 Programs are getting more difcult at the same rate that programmer skills improve. This implies that as computers become
more powerful we use them to tackle harder problems.
NATO SOFTWARE ENGINEERING CONFERENCE 1969 7.2 ESTIMATING RESOURCES FOR LARGE SYSTEMS 59
Determine man-months
Using Figure 3, it is a simple matter to select a productivity rate and divide 76 it into the system size to obtain the
resource requirement for writing programs.
Deliverable instructions
Man-months =
Instructions per man-month
The selection of a row in the table was described as a function of job difficulty and job type. The selection of a column
depends on the proposed length of the project. There are two reasons for multiple columns:
1 The numbers are more convenient to use because they are more appropriately scaled to system size.
2 The columns are adjusted to include learning.
Example
At this point, a number has been generated representing a portion of the system resource requirement. Suppose the
system of interest has seven major packages. One of these is concerned with data management, which contains three
main programming activities. One of these is telemetry, which is unique to the development group so it is selected
for detailed design. In developing the detailed design a set of subpackages is laid out, each of which is broken into
its basic units. There are a total of 50 units. Lacking other data, the number of units in the system could be taken as
7X3X50=1050. More likely the other packages are better known and specific unit counts can be generated for each.
The total unit count this way is, say, 800. Suppose now that a poll is taken of the key men who will design and assign
units to programmers. Each man reviews his previous results and explains how large his unit assignments turn out to
be on the average.
The average for all responses is 500 assembly instructions and associated data descriptions. Further, assume that one
package (150 units) is judged to 77 be difcult, two (200 units) to be medium, and four (450 units) easy. One year
is planned for system development. The procedure will produce an estimate as follows:
Deliverable instructions = 800 × 500 = 400,000
Difcult = 150 × 500 = 75,000
Medium = 200 × 500 = 100,000
Easy = 450 × 500 = 225,000
Using column 2, an answer in man-months will be obtained.
225,000 100,000 75,000
Man-months = + + = 1450 man-months = 120 man-years
500 250 125
Adjust for higher-level language
Up to this point, only assembly language source statements have been considered. Productivity using higher-level
languages such as FORTRAN, COBOL and PL/1 is highly variable. An experimental factor of 2:1 improvement over
assembly language is suggested. Thus if the estimator counted deliverable instructions generated from source state-
ments he could divide the man-months obtained from the table by 2 to adjust for the advantages of the higher-level
language. If he entered the table with the number of high-level source statements and data descriptions, he could
multiply the resulting man-months by 2. This allows for 4 deliverable instructions to be generated, on the average, by
each high-level statement.
Extrapolation
Figure 4 illustrates the activities in the life cycle that are estimated from support are not included. They must be
brought in by extrapolation, as follows:
NATO SOFTWARE ENGINEERING CONFERENCE 196960 7.2 ESTIMATING RESOURCES FOR LARGE SYSTEMS
30 40 30
DESIGN IMPLEMENT TEST
50%
RESOURCES
System
Design System
Test
50%
Resources
Estimated by
Quantitavive
Formula
START TIME DELIVER

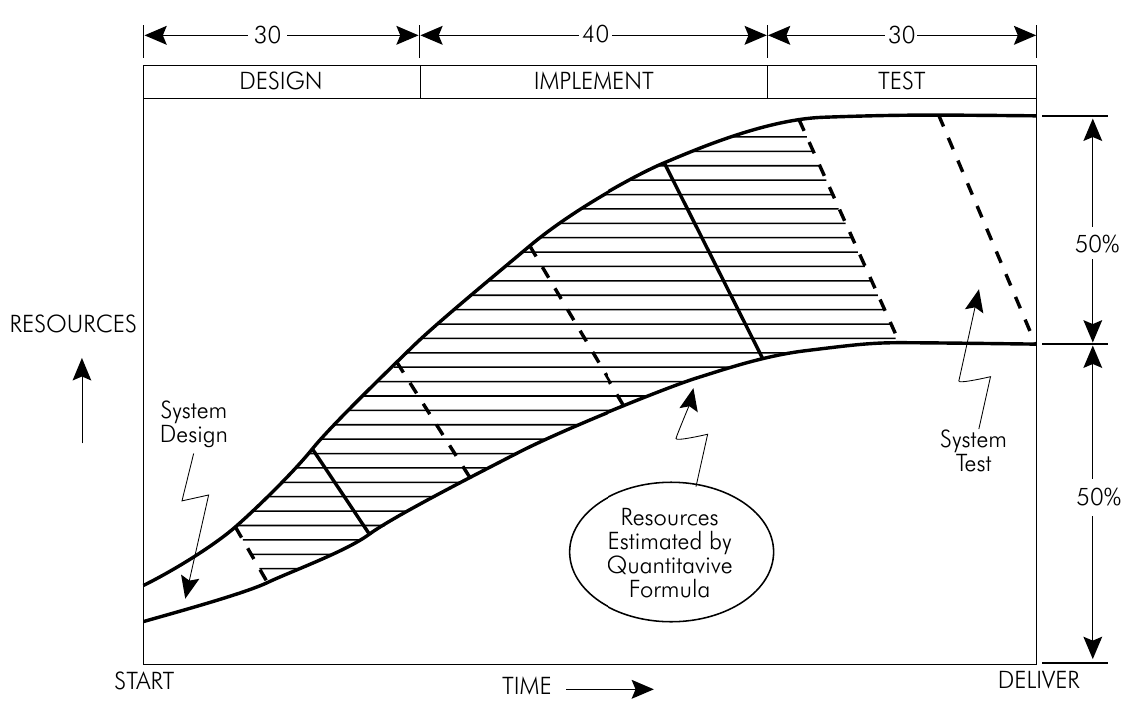

Figure 4. Scope of quantitative estimate
1 System design can be ignored—it is less than one per cent of an effort the size of the above example.
78
2 System test represents about half the test time or 15 per cent of the schedule. But since the number of
people on hand at that time is very high system test actually uses closer to 20 per cent of the resources,
not counting management and support.
3 Management and support utilize approximately half of the system resources.
4 The extrapolation is done by the following formula:
System man-months = 2 ( man-months
0.8 )
= 2.5 × man-months
In the example of a 400,000 instruction system the total resource estimate would be 3625 man-months or over 300
man years.*
Adjust results
The productivity table assumes the use of average programmers organized in a normal pyramidal hierarchy. That
means that there is a range in experience from many junior people to fewer senior people. The formulas also assume
average uniqueness and development environment. No adjustment of the result is necessary unless the project devi-
ates in an obvious way from the norm. Such an obvious deviation would be the assignment of all junior people with
no experienced technical people to lead them. Another would be the requirement to use the first machine of a new
line—one that has never been used before in an operational environment. The amount of adjustment appropriate is
entirely subjective, since it represents the manager’s confidence that he can overcome the effects of deviation.
Scheduling
The development of an actual performance schedule and budget will not be discussed in this paper except to point
out that the estimate projects only resource needs. Plans, schedules, budgets, reviews, etc., are needed to get the job
going in a controlled way. The form of the schedule and budget varies from organization to organization, so no format
guidelines are uniformly acceptable. A couple of general points are useful:
1 Schedule documents should include activity networks (PERT charts) and bar charts.
* A The method can be used for much smaller systems, although it is not advisable for jobs under 10 men or under six
months’ duration. These cases are not big enough to cancel out the inherent errors of the quantitative method.
NATO SOFTWARE ENGINEERING CONFERENCE 1969 7.2 ESTIMATING RESOURCES FOR LARGE SYSTEMS 61
(a) Activity networks are essential in design because they are the best tool for showing
system interactions.
(b) Bar charts are good at all times because they show who is assigned to each task and
when significant events (checkpoints and milestones) occur.
As shown in Figure 5, management attention is directed to interactions during design and test. It shifts to
the components themselves during implementation. The activity network is most valuable, then, during
design and test but it is a burden during implementation. If it is not properly maintained it should be
dropped in implementation for economy and the bar chart should be retained.
2 The schedule of manpower follows the life cycle. Other activities that must be scheduled include machine
time and other job shop services such 79 as publications. These activities tend to fall in the last one-
half to one-third of the life cycle.
(a) Machine time can be estimated in gross terms by knowing how many machine-hours
each man in the organization uses each month. (A survey report by Mr. Ralph Arthur
and this author showed that in FSD 7 to 8 hours debugging time per man per month was
predictable from the history of several dozen projects.)
The gross estimate can be spread by allowing 2 to 3 hours during implementation build-
ing to about 20 hours in test, but averaging 8 hours per man per month over the last 50
to 70 per cent of the project.
(b) Other service activities are best estimated by the specialists in those areas. This means
that their inputs must be requested during the estimate process.

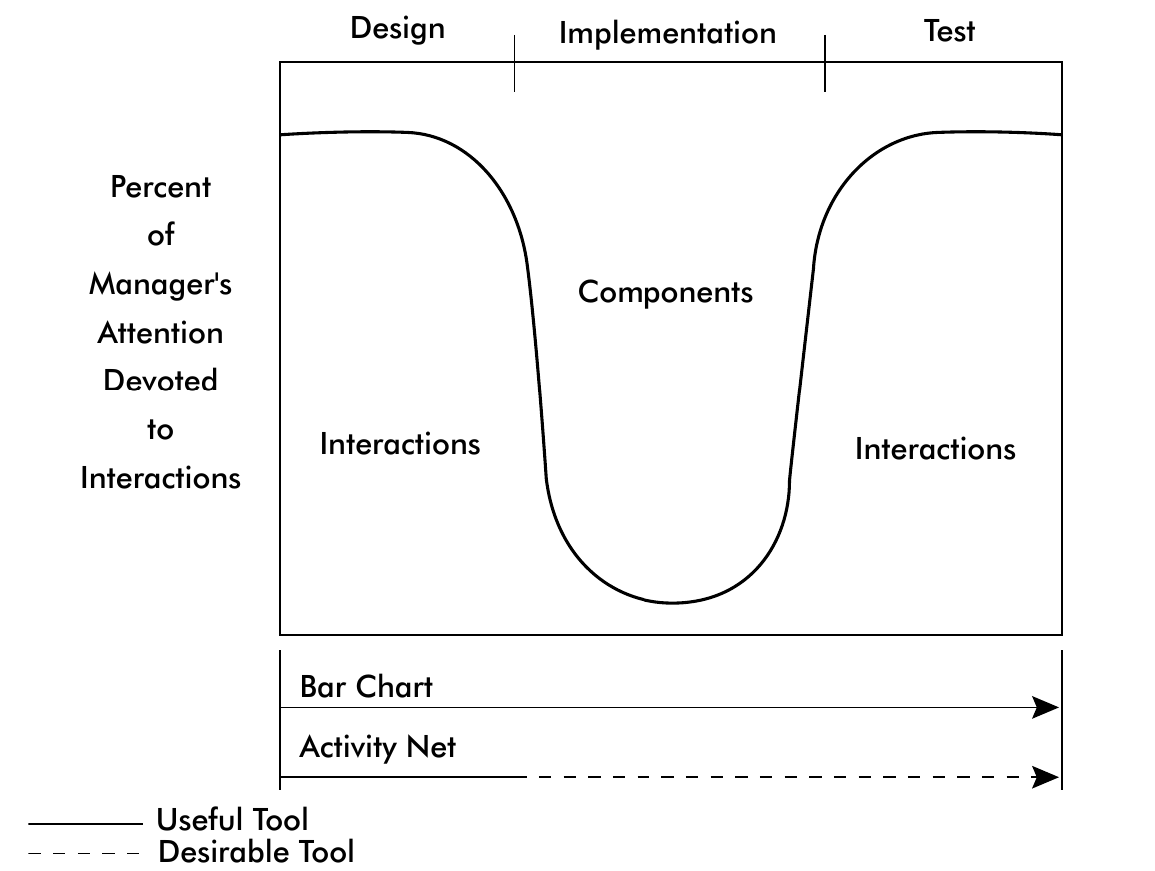

Design Implementation Test
Percent
of
Manager's Components
Attention
Devoted
to Interactions Interactions
Interactions
Bar Chart
Activity Net
Useful Tool
Desirable Tool
Figure 5. Manager's attention curve
Conclusion
The Quantitative Method of estimating manpower resources for large programming jobs is presented as a simple,
feasible guideline. It is not being presented as a precise method and, in fact, it is not as good as an estimate based on
sound experience. But it is offered as an aid to estimators working in unfamiliar areas and as a verification of estimates
obtained by other methods.
NATO SOFTWARE ENGINEERING CONFERENCE 196962 7.3 SOFTWARE PORTABILITY
80
7.3 Software portability
by
W. S. Brown
Abstract
A program or programming system is called portable if the effort required to move it into a new environment is
much less than the effort that would be required to reprogram it for the new environment. This paper consists of
a general discussion of software portability, followed by a description of the portability plan for ALTRAN-F, a
special purpose programming language now being implemented.
1 Introduction
A program or programming system is called portable if the effort required to move it into a new environment is much
less than the effort that would be required to reprogram it for the new environment.
Most software is not portable. The resulting situation is becoming an increasingly serious obstacle to progress in com-
puter science. Many programmers spend much of their time doing work that has been done better elsewhere before.
More often than not, programs described in journals are unavailable to the readers. Every project must be implemented
from the ground up and, when a computer is replaced, many running programs are effectively lost.
Problem oriented languages were originally expected to provide a cure for this situation but they have succeeded only
to a very limited extent. In Section 2 of this paper we examine the reasons for this. In Section 3 we classify software
according to difficulty of achieving portability, and in Section 4 we describe the portability plan for ALTRAN-F (see
Reference 1), a special purpose programming language now being implemented.
2 Problem oriented languages
A problem oriented language is a language which allows the programmer to describe a procedure in terms of the
problem rather than the machine. It was originally hoped that programs written in a problem oriented language could
be moved from one machine to another, simply by recompiling them, but experience has made us aware of several
serious pitfalls:
1 Problem oriented languages come in many dialects. In fact each compiler defines a somewhat different
source language from every other. A program that runs well on one machine is very likely to collapse on
another. Furthermore, because of inadequate documentation, it is often difficult to learn what the differ-
ences are.
2 There maybe no existing language which is well suited to the task at hand. For example, one may need
to handle numbers, character strings, lists, structures and input/output. Most languages tend to specialize
in one or two of these. FORTRAN and ALGOL are excellent for numerical computing, while SNOBOL
is especially designed for the manipulation of character strings. LISP specializes in lists and COBOL
is excellent for structures and for input/output. PL/1 and ALGOL 68 do all of these things but both are
ponderous; furthermore PL/1 is supported only by IBM and ALGOL 68 has not yet been implemented at
all. Dialects often incorporate extensions to overcome some of the deficiencies, but a program using the
extra facilities cannot easily be moved.
81
3 Only a few languages are widely available.
4 The use of a problem oriented language may entail an unacceptable loss of efficiency. If a compiler is to
produce efficient object programs then the language must permit the programmer to express his intentions
clearly. If he is forced into circumlocutions, the compiler may compile efficient code for what he said, but
it can hardly be expected to compile efficient code for what he meant. A compiler can go to tremendous
extremes of program analysis and searching for special cases in order to optimize its object code, but if so
the compiler itself will be bulky and slow.
5 A problem oriented language cannot readily provide portability if any significant part of the problem at
hand is machine dependent.
NATO SOFTWARE ENGINEERING CONFERENCE 1969 7.3 SOFTWARE PORTABILITY 63
3 Classes of software
We define four classes of software in increasing order of the difficulty of achieving portability.
Small procedures
A small procedure performs a conceptually simple computation on (or transformation of) arguments provided by its
invoker. Input/output can usually be avoided, and there is a good chance of an adequate language being available.
Large subsystems
A large subsystem provides for the solution of a multitude of problems, each of which can be described without refer-
ence to the computer. Facilities for input/output must be provided and there may be no available language which
permits natural expression of all parts of the subsystem.
Compilers
A compiler presents all of the difficulties of a large subsystem and also includes a module, the code generator, which
is inherently machine dependent. In spite of the obvious difficulties there is hope and even some evidence that portable
compilers can be produced. If so, both the necessity and the harmful consequences of having many dialects of each
language may be eliminated.
Operating systems
An operating system must not only deal directly with the machine, as a compiler does, but it must also satisfy service
requests which are explicitly stated in terms of the machine. The hope for portability rests on the observation that
most service requests are not so stated and that large parts of typical operating systems involve ordinary processing of
numbers, strings, lists, arrays and structures.
4 Portability plan for ALTRAN-F
DATA
LIBRARY
(FORTRAN
PART)
ALTRAN
FORTRAN
TRANSLATOR COMPILER INTERPRETER PRIMITIVES
SOURCE
LIBRARY
(ALTRAN
PART)
DATA
Figure 1. Overall structure of the system
* Because of this reliance on FORTRAN, the translator is not a compiler in the sense of class 3 above; hence the entire
ALTRAN system ts into class 2.
NATO SOFTWARE ENGINEERING CONFERENCE 196964 7.3 SOFTWARE PORTABILITY
ALTRAN is a FORTRAN-like language incorporating certain symbolic algebraic data types and operations on data of
these types. A new version called ALTRAN-F is now under construction, and is intended to be portable. The overall
structure of the system is illustrated in Figure 1. The translator translates ALTRAN source into FORTRAN source,
which can then be compiled by a FORTRAN compiler.* The resulting object deck consists 82 primarily of an
encoding of the source program into a highly compact intermediate form. Identifiers are replaced by code numbers
and their names and attributes are stored in a symbol table. The intermediate text and the symbol table are represented
as integer arrays, and are decoded by the interpreter. Algebraic operations are performed by library routines— some
written in FORTRAN and others in ALTRAN. A few machine language primitives, written separately for each instal-
lation, are also required.
The implementation language is a carefully defined subset of FORTRAN IV. A program unit is composed of (up
to) seven parts in a prescribed order. Some statement types have been excluded, while others have been restricted.
This language is supported by the standard FORTRAN compilers on the IBM 360, GE 625/635, CDC 6400/6600 and
UNIVAC 1108 computers. To escape from its limitations, both macros and primitive subroutines are used. Macros
permit extensions of the implementation language, while primitives allow for the efficient coding of critical opera-
tions.
A macro processor called M6 (see Reference 2) is included as a part of the ALTRAN system. This processor is writ-
ten in the FORTRAN IV subset discussed above. The ALTRAN translator and interpreter and the FORTRAN part of
the ALTRAN library are written in a machine independent macro extension of this subset.When these modules are
processed by M6, the output is pure FORTRAN (in the subset), but is no longer machine independent. Certain macro
definitions must, of course, be supplied separately for each installation.
The primary use of macros is to permit the introduction of machine and implementation parameters into the language.
For example the number of characters per machine word is represented as a macro, to be used in FORMAT statements,
DATA statements and the manipulation of character strings. The relative sizes of different data types are important for
the proper use of EQUIVALENCE and COMMON. Implementation parameters such as the size of the work space, the
length of an identifier and the unit numbers for various data streams are also represented as macros. Similarly macros
permit the use of nonstandard types such as INTEGER*2 on the 360. Finally, macros permit the easy insertion and
deletion of optional debugging 83 statements, and the macro calls that separate decks on the system tape can be
used to generate control cards.

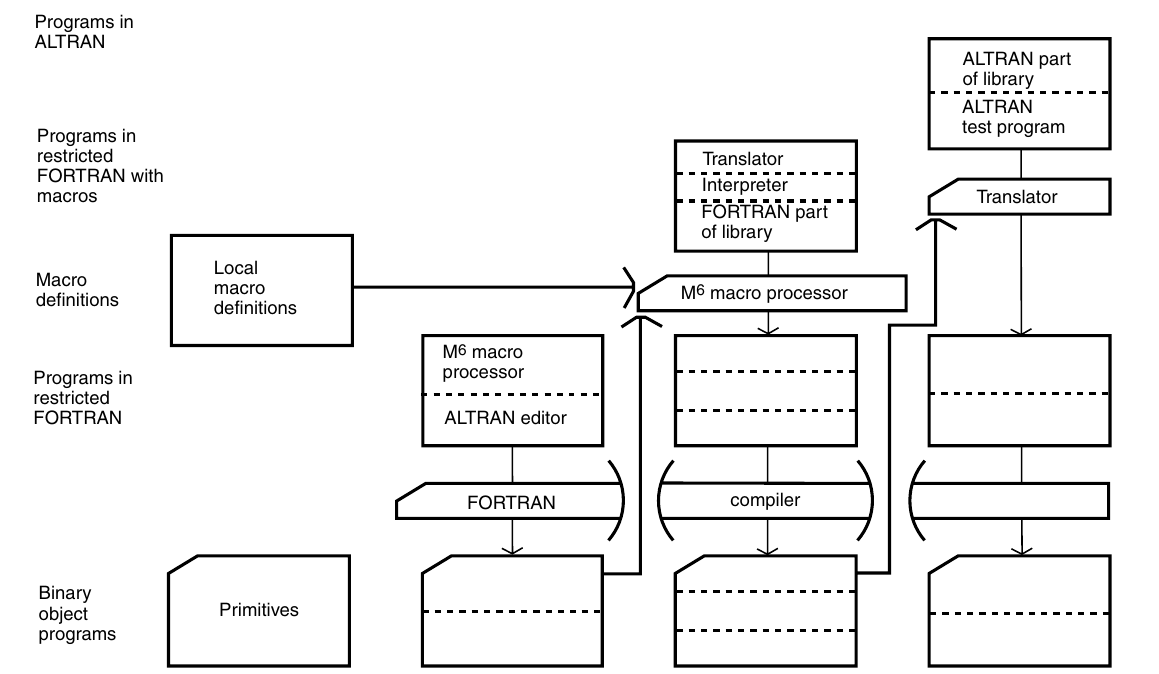

Programs in
ALTRAN
ALTRAN part
of library
ALTRAN
Programs in test program
restricted Translator
FORTRAN with
Interpreter
macros Translator
FORTRAN part
of library
Local
Macro macro
definitions M6 macro processor
definitions
M6 macro
Programs in processor
restricted
FORTRAN ALTRAN editor
FORTRAN compiler
Binary
object Primitives
programs
Figure 2. Installation steps
Primitives are used for the most elementary operations on strings, integers, reals and packed exponent sets. They are
also used for the association of procedure names with entry addresses.
NATO SOFTWARE ENGINEERING CONFERENCE 1969 7.4 STRUCTURED PROGRAMMING 65
The complete system consists of a system tape and some associated documentation. Manuals will be provided to
describe the definition, implementation and use of the language. Another manual will discuss the procedures for
installing, improving and maintaining the system.
The system tape consists of six logical files. The first contains the ALTRAN character set and the second contains an
editor to be used for incorporating system updates. The third file contains the macro processor, M6 in source language
and the fourth contains some basic macro definitions. Finally, the last two files contain the FORTRAN and ALTRAN
parts of the system, respectively.
To install the system (see Figure 2), a recipient must first write some basic macros and some primitives, and transliter-
ate the system tape into his local character set. Next he compiles the macro processor using his local FORTRAN com-
piler. Then he compiles the translator, the interpreter, and the FORTRAN part of the library, using the macro processor
followed by the FORTRAN compiler. Then he compiles the ALTRAN part of the library, using the ALTRAN transla-
tor and the FORTRAN compiler. Finally he compiles and runs an ALTRAN test program to be sure that everything is
in working order.
Once the system is operational, it can be improved by replacing critical procedures with more efficient machine lan-
guage versions. These replacements can be made at leisure and in an order determined by local experience. However,
the documentation indicates procedures that are known to be critical.
Improvements will be distributed occasionally in the form of an update letter. The changes can be keypunched from
the update letter and incorporated with the aid of the editor. The editing technique has been designed in such a way
that unrelated local modifications need not interfere with this process.
84
References
1. Brown, W. S. The ALTRAN language for symbolic algebra, unpublished, January 1969, pp. 84.
2. Hall, A. D. The M6 macro processor; (unpublished), March 1969, pp. 16, 1 appendix. M6 was designed by M. D.
McIlroy, using ideas from many sources. The FORTRAN implementation is a translation by A. D. Hall of an
original written in MAD by R. Morris.
7.4 Structured programming
by
E. W. Dijkstra
Introduction
This working document reports on experience and insights gained in programming experiments performed by the
author in the last year. The leading question was if it was conceivable to increase our programming ability by an order
of magnitude and what techniques (mental, organizational or mechanical) could be applied in the process of program
composition to produce this increase. The programming experiments were undertaken to shed light upon these ques-
tions.
Program size
My real concern is with intrinsically large programs. By “intrinsically large” I mean programs that are large due to
the complexity of their task, in contrast to programs that have exploded (by inadequacy of the equipment, unhappy
decisions, poor understanding of the problem, etc.). The fact that, for practical reasons, my experiments had thus far
to be carried out with rather small programs did present a serious difficulty; I have tried to overcome this by treating
problems of size explicitly and by trying to find their consequences as much as possible by analysis, inspection and
reflection rather than by (as yet too expensive) experiments.
In doing so I found a number of subgoals that, apparently, we have to learn to achieve (if we don’t already know how
to do that).
NATO SOFTWARE ENGINEERING CONFERENCE 196966 7.4 STRUCTURED PROGRAMMING
If a large program is a composition of N “program components”, the confidence level of the individual components
must be exceptionally high if N is very large. If the individual components can be made with the probability “p” of
being correct, the probability that the whole program functions properly will not exceed
P=PN
for large N, p must be practically equal to one if P is to differ signicantly from zero. Combining subsets into larger
components from which then the whole program is composed, presents no remedy:
pN/2 * pN/2 still equals pN !
As a consequence, the problem of program correctness (condence level) was one of my primary concerns.
The effort—be it intellectual or experimental—needed to demonstrate the correctness of a program in a sufficiently
convincing manner may (measured in some loose sense) not grow more rapidly than in proportion to the program
length (measured in an equally loose sense). If, for instance, the 85 labour involved in verifying the correct compo-
sition of a whole program out of N program components (each of them individually assumed to be correct) still grows
exponentially with N. we had better admit defeat. Any large program will exist during its life-time in a multitude of
different versions, so that in composing a large program we are not so much concerned with a single program, but
with a whole family of related programs, containing alternative programs for the same job and/or similar programs
for similar jobs. A program therefore should be conceived and understood as a member of a family; it should be so
structured out of components that various members of this family, sharing components, do not only share the correct-
ness demonstration of the shared components but also of the shared substructure.
Program correctness
An assertion of program correctness is an assertion about the net effects of the computations that may be evoked by
this program. Investigating how such assertions can be justified, I came to the following conclusions:
1 The number of different inputs, i.e. the number of different computations for which the assertions claim
to hold is so fantastically high that demonstration of correctness by sampling is completely out of the
question. Program testing can be used to show the presence of bugs, but never to show their absence!
Therefore, proof of program correctness should depend only upon the program text.
2 A number of people have shown that program correctness can be proved. Highly formal correctness proofs
have been given; also correctness proofs have been given for “normal programs”, i.e. programs not written
with a proof procedure in mind. As is to be expected (and nobody is to be blamed for that) the circulating
examples are concerned with rather small programs and, unless measures are taken, the amount of labour
involved in proving might well (will) explode with program size.
3 Therefore, I have not focused my attention on the question “how do we prove the correctness of a given
program?” but on the questions “for what program structures can we give correctness proofs without
undue labour, even if the programs get large?” and, as a sequel, “how do we make, for a given task, such a
well-structured program?”. My willingness to confine my attention to such “well-structured programs” (as
a subset of the set of all possible programs) is based on my belief that we can find such a well structured
subset satisfying our programming needs, i.e. that for each programmable task this subset contains enough
realistic programs.
4 This, what I call “constructive approach to the problem of program correctness”, can be taken a step fur-
ther. It is not restricted to general considerations as to what program structures are attractive from the point
of view of provability; in a number of specific, very difficult programming tasks I have finally succeeded
in constructing a program by analyzing how a proof could be given that a class of computations would
satisfy certain requirements; from the requirements of the proof the program followed.
The relation between program and computation
Investigating how assertions about the possible computations (evolving in time) can be made on account of the static
program text, I have concluded that adherence to rigid sequencing disciplines is essential, so as to allow step-wise
abstraction from the possibly different routing. In particular: when programs for a sequential computer are expressed
as a linear sequence of basic symbols of a programming language, sequencing should be 86 controlled by alterna-
NATO SOFTWARE ENGINEERING CONFERENCE 1969 7.4 STRUCTURED PROGRAMMING 67
tive, conditional and repetitive clauses and procedure calls, rather than by statements transferring control to labelled
points.
The need for step-wise abstraction from local sequencing is perhaps most convincingly shown by the following dem-
onstration:
Let us consider a “stretched” program of the form
S1; S2; . . .; SN (1)
and let us introduce the measuring convention that when the net effect of the execution of each individual statement
Sj has been given, it takes N steps of reasoning to establish the correctness of program (1), i.e. to establish that the
cumulative net effect of the N actions in succession satisfies the requirements imposed upon the computations evoked
by program (1).
For a statement of the form
if B then S1 else S2 (2)
where, again, the net effect of the execution of the constituent statements S1 and S2 has been given; we introduce the
measuring convention that it takes 2 steps of reasoning to establish the net effect of program (2), viz. one for the case
B and one for the case not B.
Consider now a program of the form
if B1 then S11 else S12;
if B2 then S21 else S22;
.
.
.
if BN then SN1 else SN2 (3)
According to the measuring convention it takes 2 steps per alternative statement to understand it, i.e. to establish that
the net effect of
if Bi then Si1 else Si2
is equivalent to that of the execution of an abstract statement S1. Having N such alternative statements, it takes us 2N
steps to reduce program(3) to one of the form of program (1); to understand the latter form of the program takes us
another N steps, giving 3N steps in toto.
If we had refused to introduce the abstract statements Si but had tried to understand program (3) directly in terms of
executions of the statements Sij, each such computation would be the cumulative effect of N such statement execu-
tions and would as such require N steps to understand it. Trying to understand the algorithm in terms of the Sij implies
that we have to distinguish between 2N different routings through the program and this would lead to N*2N steps of
reasoning!
I trust that the above calculation convincingly demonstrates the need for the introduction of the abstract statements Si.
An aspect of my constructive approach is not to reduce a given program (3) to an abstract program (1), but to start
with the latter.
Abstract data structures
Understanding a program composed from a modest number of abstract statements again becomes an exploding task
if the definition of the net effect of the constituent statements is sufficiently unwieldy. This can be overcome by the
introduction of suitable abstract data structures. The situation is greatly analogous to the way in which we can under-
stand an ALGOL program operating on integers without having to bother about the number representation of the
NATO SOFTWARE ENGINEERING CONFERENCE 196968 7.5 SYSTEM DESIGN LANGUAGE
implementation used. The only difference is that now the programmer must invent his own concepts (analogous to the
“ready-made” integer) and his own operations upon them (analogous to the “ready-made” arithmetic operations).
87
In the refinement of an abstract program (i.e. composed from abstract statements operating on abstract data structures)
we observe the phenomenon of “joint refinement”. For abstract data structures of a given type a certain representation
is chosen in terms of new (perhaps still rather abstract) data structures. The immediate consequence of this design
decision is that the abstract statements operating upon the original abstract data structure have to be redefined in terms
of algorithmic refinements operating upon the new data structures in terms of which it was decided to represent the
original abstract data structure. Such a joint refinement of data structure and associated statements should be an iso-
lated unit of the program text: it embodies the immediate consequences of an (independent) design decision and is as
such the natural unit of interchange for program modification. It is an example of what I have grown into calling “a
pearl”.
Programs as necklaces strung from pearls
I have grown to regard a program as an ordered set of pearls, a “necklace”. The top pearl describes the program in its
most abstract form, in all lower pearls one or more concepts used above are explained (refined) in terms of concepts
to be explained (refined) in pearls below it, while the bottom pearl eventually explains what still has to be explained
in terms of a standard interface (=machine). The pearl seems to be a natural program module.
As each pearl embodies a specific design decision (or, as the case may be, a specific aspect of the original problem
statement) it is the natural unit of interchange in program modification (or, as the case may be, program adaptation to
a change in problem statement).
Pearls and necklace give a clear status to an “incomplete program”, consisting of the top half of a necklace; it can be
regarded as a complete program to be executed by a suitable machine (of which the bottom half of the necklace gives
a feasible implementation). As such, the correctness of the upper half of the necklace can be established regardless of
the choice of the bottom half.
Between two successive pearls we can make a “cut”, which is a manual for a machine provided by the part of the
necklace below the cut and used by the program represented by the part of the necklace above the cut. This manual
serves as an interface between the two parts of the necklace. We feel this form of interface more helpful than regarding
data representation as an interface between operations, in particular more helpful towards ensuring the combinatorial
freedom required for program adaptation.
The combinatorial freedom just mentioned seems to be the only way in which we can make a program as part of a
family or “in many (potential) versions” without the labour involved increasing proportional to the number of mem-
bers of the family. The family becomes the set of those selections from a given collection of pearls that can be strung
into a fitting necklace.
Concluding remarks
Pearls in a necklace have a strict logical order, say “from top to bottom”. I would like to stress that this order may be
radically different from the order (in time) in which they are designed.
Pearls have emerged as program modules when I tried to map upon each other as completely as possible, the numerous
members of a class of related programs. The abstraction process involved in this mapping turns out (not, amazingly,
as an afterthought!) to be the same as the one that can be used to reduce the amount of intellectual labour involved in
correctness proofs. This is very encouraging.
As I said before, the programming experiments have been carried out 88 with relatively small programs. Although,
personally, I rmly believe that they show the way towards more reliable composition of really large programs, I
should like to stress that as yet I have no experimental evidence for this. The experimental evidence gained so far
shows an increasing ability to compose programs of the size I tried. Although I tried to do it, I feel that I have given but
little recognition to the requirements of program development such as is needed when one wishes to employ a large
crowd; I have no experience with the Chinese Army approach, nor am I convinced of its virtues.
NATO SOFTWARE ENGINEERING CONFERENCE 1969 7.5 SYSTEM DESIGN LANGUAGE 69
7.5 Criteria for a system design language
by
A. D. Falkoff
A system is a collection of programs and a program is a formal statement of an algorithm or a process. This paper
proposes that the appropriate design medium for systems is a formal programming language.
Since the programs that comprise a system may be implemented in various gradations of hardware and software, the
proposal is not restricted to software, although it is the software design problem that is of interest at the moment.
Indeed, the unifying effect of using a common medium and the flexibility it provides in the timing of implementation
decisions are two of the major advantages to be expected.
In proposing the use of a programming language in system design it is not intended to outlaw the use of English or
other natural languages, either in the formal documentation that should be part of a design effort, or in the casual com-
munication that always occurs in an engineering operation. Rather, the use of the two types of languages should be
complementary. The natural language can be used to convey broad ideas quickly, while the formal language can be
used to make these ideas precise and ultimately to act as a guide in preparing natural language documentation, such
as manuals.
The criteria that are proposed for the choice of a formal design language are:
1 It should be easy to learn its basic use.
2 Formulations in the language should be suggestive and thought provoking.
3 It should allow meaningful formal manipulation of both expressions and larger program segments.
4 It should lead to the development of aesthetic criteria for judging the quality of a design.
5 It should be convenient for documentation.
6 It should be uncommitted to any particular technology or problem area.
7 It should be applicable in a consistent way to systems of any foreseeable complexity.
8 It should be executable on a machine.
Each of these criteria will be briefly discussed below, with some examples in terms of APL (see References 1, 2 and
3).
1 Because of the continual problem of training new designers and the immediate perturbation when working design-
ers start to use it, the basic use of a design language should be easy to learn. That is to say, the beginner should be able
to produce correct and usable programs in a 89 relatively short time, while power and elegance in the use of the
language come with practice.
This requirement suggests that the language should have a syntax and semantics built up from a small number of inter-
nally consistent rules. Syntactical restrictions and semantic surprises of the kind that have arisen when convenience of
implementation was taken as a significant guide in language design must be avoided.
2 Apart from clerical tasks, good design requires thought. A language which is awkward to use or which suppresses
all detail will, in the first instance, discourage experimentation with different formulations and, in the second instance,
fail to suggest alternative lines of attack. This suggests that, while the design language should have a simple structure,
it should at the same time have a rich set of primitive operations so that, even at fairly high levels of design, actions
can be expressed succinctly in terms of primitive operations.
For example, Figure 1 gives two systems of skeletal programs for maintaining a table. The APPEND-DELETE system
maintains LST by appending to it and contracting it, as required. The INSERT-ERASE system maintains TBL, con-
ceived as a fixed length object, by keeping a dynamic record of the next available space. This record also serves in a
complementary fashion to identify valid table entries for readout. The two systems were obviously easy to write and
are not very hard to understand. Which would be better in a given environment, or would a combination of the two
be best?
NATO SOFTWARE ENGINEERING CONFERENCE 196970 7.5 SYSTEM DESIGN LANGUAGE

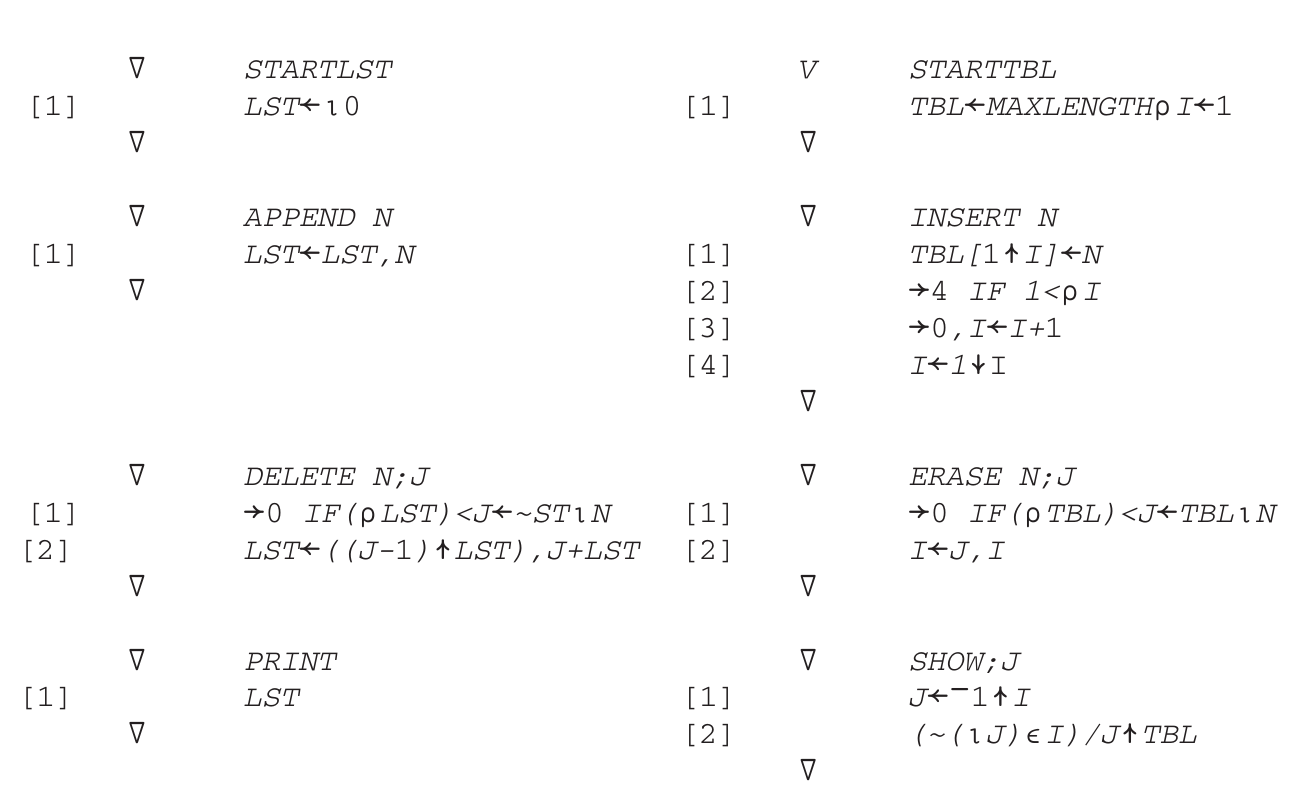

∙ STARTLST V STARTTBL
[1] LST1⁄2ì0 [1] TBL1⁄2MAXLENGTHæI1⁄21
∙ ∙
∙ APPEND N ∙ INSERT N
[1] LST1⁄2LST,N [1] TBL[1ÆI]1⁄2N
∙ [2] ¸4 IF 1<æI
[3] ¸0,I1⁄2I+1
[4] I1⁄21ÇI
∙
∙ DELETE N;J ∙ ERASE N;J
[1] ¸0 IF(æLST)> - - > N)
EDITING FACT...
(COND - - ((T - - ))) > > - - > (COND - - (T - - ))
TIMS=TIMES
141
FACTT= FACT
EDITING FACT . . .
8SUB1 > > - - > (SUB1
6
←PRETTYPRINT((FACT))
(FACT
(LAMBDA (N)
(COND
((ZEROP N)
1)
(T (TIMES N (FACT (SUB1 N)))))))
NIL
NATO SOFTWARE ENGINEERING CONFERENCE 1969 7.14 TOWARD A PROGRAMMING LABORATORY 111
In this example, the user first defines a function FACT of one argument, N. whose value is to be N factorial. The func-
tion contains several errors: TIMES and FACT have been misspelled. The 9 in N9 was intended to be a right paren-
thesis but the teletype shift key was not depressed. Similarly, the 8 in 8SUB1 was intended to be a left parenthesis.
Finally, there are two left parentheses in front of the T that begins the second clause in the conditional, instead of the
required one.
After defining the function FACT, the user wishes to look at its definition using PRETTYPRINT, which he unfortu-
nately misspells. Since there is no function PRETTYPRNT in the system, an UNDEFINED FUNCTION error occurs,
and the DWIM program is called. DWIM invokes its spelling corrector, which searches for the best possible match in a
list of functions frequently used (by this user). Finding one that is extremely close, DWIM proceeds on the assumption
that PRETTYPRNT meant PRETTYPRINT, informs the user of this, and calls PRETTYPRINT.
At this point, PRETTYPRINT would normally print (FACCT NOT PRINTABLE) and exit, since FACCT has no
definition. This is not a system error condition, but the DWIM facility is not restricted to just system error conditions.
DWIM also modifies selected system functions, such as PRETTYPRINT and DEFINEQ, to make them co-operate
more closely with the user: DEFINEQ is modified (by ADVISE, to be described later) to note any new functions
defined by the user, and add them to the spelling list of user functions. Similarly, PRETTYPRINT is modified so that,
when given a function with no definition, it calls the spelling corrector. Thus, PRETTYPRINT determines that the user
wants to see the definition of the function FACT, not FACCT, and proceeds accordingly.
The user now calls his function FACT. During its execution, five errors are generated, and DWIM is called five times.
At each point, the error is corrected, a comment made of the action taken, and the computation allowed to continue as
if no error had occurred. Following the last correction, 6, the value of FACT(3), is printed. Finally, the user prints the
new, now correct, definition of FACT.
In this particular example, the user was shown operating in a mode which gave the DWIM system the green light on
all corrections. Had the user wished to interact more and approve or disapprove of the intended corrections at each
stage, he could have operated in a different mode. Or, operating as shown above, he could have at any point aborted
the correction, or signalled his desire to see the results of a correction after it was made, by typing a ? on the teletype.
We have found from our experience with DWIM that most users are quite willing to entrust the program with the
correction of errors, although each different user may want to operate with a different “confidence factor”, a 142
parameter which indicates how sure DWIM must be before making a correction without approval. Above a certain
user-established level, DWIM makes the correction and goes on. Below another level, DWIM types what it thinks is
the problem, e.g., DOES PRTYPNT MEAN PRETTYPRINT?, and waits for the user to respond. In the in between
area, DWIM types what it is about to do, pauses for about a second, and if the user does not respond, goes ahead and
does it. The important thing to note is that since an error has occurred, the user would have to intervene in any event, so
any attempt at correction is appreciated, even if wrong, as long as the correction does not cause more trouble to correct
than the original error. Since DWIM can recognize the difference between trivial corrections, such as misspellings,
and serious corrections, such as those involving extensive editing, bad mistakes are usually avoided. When DWIM
does make a mistake, the user merely aborts his computation and makes the correction he would have had to make
anyway.
Error handling in general
Certain types of errors that occur in the BBN LISP system cannot be handled by the DWIM program, for example,
NON-NUMERIC ARG, an error generated by the arithmetic functions; ARG NOT ARRAY, from the primitive array
functions, etc. These are data type errors.* Another class of errors not handled by DWIM are the “panic” errors: BP
FULL, a complaint from the compiler meaning it has run out of binary program space; NONXMEM, an attempt to
reference nonexistent memory, usually caused by treating an array pointer as a piece of list structure; PDL OVFLW,
meaning pushdown list overflow, which usually implies a looping program, etc. Both data type and panic errors are
not fixable, but they are helpable.
* Sometimes these errors are in fact caused by misspellings, but it is impossible to tell in general.
NATO SOFTWARE ENGINEERING CONFERENCE 1969112 7.14 TOWARD A PROGRAMMING LABORATORY
In our system, whenever an error occurs, it causes a trap to a user modifiable program. (It is through this program
that DWIM works.) If DWIM has not been enabled, or if the user aborts an attempted DWIM correction, or if DWIM
cannot fix the error that has occurred, the system goes into a “break” and allows the user to interact with the system
while maintaining the context of the program in which the error occurred. This allows the user to intervene to try to
rectify the problem or to salvage what he can of the computation. While in the break, the system accepts and evalu-
ates inputs from the teletype. Since all of the power of the system is available to him, the user can examine variables,
change their values, define and evaluate new functions and even edit functions he is currently in. If another error occurs
in a computation requested while in the break, the system goes into a second, lower break, and so on. Thus it is rarely
the case that the results of a lengthy computation are lost by the occurrence of an error near its end.
The following example illustrates this process (user input is preceded by “:” or “*”). The user is running a large,
compiled system, one of whose subroutines is to perform the alphabetization of a list of names. The first indication of
something wrong in the system is the error message ATTEMPT TO CLOBBER NIL, meaning the program is attempt-
ing to change the value of NIL (not allowed in our system). The system goes into a break (1), and the user determines
where the error occurred by requesting a backtrace (2). He sees that he is inside the function ALPHA and interrogates
the value of some of ALPHA’s variables (3). He realizes that the problem arose when his alphabetization routine
attempted to compare the last element in the list to the one following it, i.e. an end-check problem. Still in 143 the
break, he proceeds to call the editor on the function ALPHA (4). DWIM corrects his spelling, and since ALPHA is
compiled, the editor retrieves its dening symbolic expression from its property list, typing PROP (5) to call this to
the user’s attention. Consulting his listing, the user instructs the editor to nd the expression beginning with COND
that contains RETURN, (6) which he then examines (7). The expression he wants is the one before the COND, so
he backs up (8), and makes the appropriate correction (9). He then recompiles ALPHA (10). Notice he is still in the
original break.
ATTEMPT TO CLOBBER NIL
TEITELMAN
(RPLACA BROKEN) 1
WHERE? 2
RPLACA
ALPHA
ACCOUNTS2
ACCOUNTS1
ACCOUNTS
:X
(BOBROW OUILLIAN MURPHY BELL NIL) 3
:Y
(NIL)
:Z
TEITELMAN
EDITF(ALHPA) 4
=ALPHA
PROP
EDIT
*(COND CONTAINING RETURN)
PP 6
(COND 7
(FLG (GO LP))
(T (RETURN X)))
*BACK PP 8
(NULL (SETQ Y (CDR Y)))
*(EMBED SETQ IN CDR) 9
NATO SOFTWARE ENGINEERING CONFERENCE 1969 7.14 TOWARD A PROGRAMMING LABORATORY 113
*PP
(CDR (SETQ Y (CDR Y)))
*OK
(ALPHA)
:COMPILE(ALPHA) 10
LISTING ?
ST
(OUTPUT FILE)
NONE
(ALPHA COMPILING)
(ALPHA REDEFINED)
(ALPHA)
:ARGS
(U V)
:(SETQ U Y) 11
(NIL)
:EVAL 12
RPLACA EVALUATED
:X
(BOBROW OUILLIAN MURPHY BELL TEITELMAN) 13
:OK
RPLACA 14
144
Now the user wishes to continue the computation. He must therefore correct the immediate problem in the function
RPLACA i.e. its first argument is NIL. He does this by changing (setting) the first argument, U, to Y (11). He then
evaluates RPLACA (12), double checks it by looking at X, and releases the break by typing OK (14).
As illustrated above, when an error occurs a user invariably wants to look back and see what happened earlier in
the computation to cause the error situation. In BBN LISP, all information regarding the state of the computation in
progress is stored on the push-down list and is explicitly available to the user and to user programs. In fact, without
this capability, DWIM could be used only to correct certain trivial errors. We believe that for any type of programming
laboratory environment, it is absolutely essential that programs be able to examine the state of the world at any point
in the computation. In terms of LISP, this implies being able to examine the sequence of functions that have been
called and to look at variable bindings. Since the same variable may be bound a number of times in nested function
calls, especially during a recursive computation, the program must be able to specify which binding of a variable it
is referencing and be able to change a particular binding if necessary. For example, had X and Y been the names
of RPLACA’s arguments, the user should still be able to interrogate the value of X and Y in ALPHA while inside
RPLACA. Finally, the user or program must be able to cause the computation to return back to a specified point, i.e. to
a particular function on the push-down list, regardless of the number and type of intervening functions that have been
called. All of these capabilities are present in our system.
User breaks
The capability of stopping a computation and maintaining its context while executing teletype inputs is also directly
available to the user in a variety of forms as an aid in debugging (see Reference 2). In the simplest case, the user can
request that selected functions be modified to cause breaks whenever they are called, or only when a certain condition
is satisfied; for example (BREAK ALPHA (GREATERP (LENGTH X) 10)) will cause the alphabetization routine to
break whenever it is given a list of length greater than 10. At this point the user can intervene and examine variables,
edit functions, etc. exactly as in the case shown above when an error occurs and the system causes a break.
Another way of using the break feature is to specify that a function be “broken” only when it is called from some
particular function. For example, the user would be reluctant to break on the function SETQ, since almost every func-
tion uses it and the system would forever be going into a break. However, he could (BREAK (SETQ IN ALPHA)),
NATO SOFTWARE ENGINEERING CONFERENCE 1969114 7.14 TOWARD A PROGRAMMING LABORATORY
which would break only on those calls to SETQ from within ALPHA. In this case, the performance of SETQ is not
affected or degraded when called from any other function.
The user can also request that breaks be inserted at specified points inside a function. The editor is then called (in this
case the function must be an interpreted one, i.e. have an S-expression definition) to find the appropriate point and
insert the break. For example, the user could break in ALPHA (BEFORE(COND CONTAINING RETURN))), which
would cause a break just before executing the indicated form.
Finally, the user can request a break at any time during a computation by simply depressing a special key on the
teletype. The next time a function is called, usually within a few milliseconds, a break will occur and again the user
can intervene and examine the state of the computation, etc. These 145 capabilities are invaluable for localizing
problems in complex programs, especially recursive ones, and are powerful tools for finding where to make changes
that complement those described below that provide how to make changes.
Advising
PILOT was originally motivated by the difficulties encountered in using computers for solving very hard problems,
particularly those in the area of artificial intelligence (see Reference 9). These problems can be characterized as being
extremely difficult to think through in advance, that is, away from the computer. In some cases, the programmer cannot
foresee the implications of certain decisions he must make in the design of the program. In others, he can compare
several alternatives only by trying them out on the machine. Even after he gets his program debugged, he continues
to make alterations to see their effects. Only by experimenting with his working program can he evaluate its perfor-
mance or hope to extend its generality. Since he cannot accurately predict the effect of changes on the behaviour of
the program because of its size and complexity, he must adopt the more pragmatic policy of “let’s try it and see what
happens.” In short, he must be able to treat the computer as his laboratory.
Unfortunately, making changes in programs, especially large and complex programs, is often not a simple matter.
Since they may require so much effort, many experimental changes are simply not implemented, with the result that
programs soon become “frozen.” For this reason, considerable attention and effort in the design and development of
PILOT has been devoted to the problem of making changes. One of the results is the concept of advising
The operation of advising consists of modifying the interface between individual functions in a program, as opposed
to modifying the functions themselves, which is called editing. The advantage of advising is that it allows the user
to treat sections of his own (or some-one else’s) program as black boxes, and to make modifications to them without
concern for their contents. Since each modification is itself a small program, and modifications can be inserted so as to
operate either before or after the original function would be run, advising is a very general and powerful concept.
Advising is carried out in LISP by creating a new function definition in which the original function definition is
embedded, and surrounded by the “pieces of advice.” This procedure is completely general: the function being advised
can be arbitrarily large or small, complex or simple, compiled or interpreted, a system function or one of the user’s
own.
The individual pieces of advice are each LISP expressions, and so they too are completely general. Thus a piece of
advice may simply change the value of some variable or, at the other extreme, request a lengthy computation includ-
ing perhaps calling the entire advised function recursively. Advice can also be given so as to bypass the entire advised
function.
For example, the user could have repaired the problem in ALPHA shown earlier by giving the appropriate advice to
RPLACA instead of editing ALPHA. Since RPLACA is called from many functions, the user would probably want to
advise RPLACA IN ALPHA:
ADVISE((RPLACA IN ALPHA) (COND ((NULL U) (SETQ U Y))))
As with the corresponding break, this would modify only the call to RPLACA from within ALPHA.
This operation demonstrates the advantage of advising. It allows the user 146 to make on-line modifications quickly
and simply. In addition to using it for correcting bugs, the user can perform modifications for the sake of experimenta-
tion, undo the modications if he wishes, try out other congurations, etc., all without disruption to his high level,
NATO SOFTWARE ENGINEERING CONFERENCE 1969 7.14 TOWARD A PROGRAMMING LABORATORY 115
problem oriented train of thought. Such disruption usually follows when implementing changes requiring a lengthy
sequence of operations.
Note that advising complements rather than competes with editing as a way of making changes. In the early stages
of debugging, the user is primarily attending to local phenomena in his program and thus may find it natural to make
changes by editing. In later stages, he considers his program more in terms of what each piece does, rather than how
it does it, and here advising is the tool he wants to use for making changes.
Advising as a tool for modifying the system
Advising not only provides the user with a convenient tool for making changes in his own programs, but also with
the means for experimenting with and tailoring the system to his own particular tastes. For example, suppose a user
wished to modify PRETTYPRINT to print comments along the right hand side of the page, where a comment was to
be indicated as an expression beginning with the atom *. Knowing that SUPERPRINT is the function that “does the
work” of prettyprinting, he could
ADVISE(SUPERPRINT (COND ((EQ (CAR E) (QUOTE *))
(RETURN (COMMENT E)))))
and then dene the function COMMENT to do the appropriate formatting.*
Admittedly this particular piece of advising requires the user to have some detailed knowledge of the workings of
PRETTYPRINT. However, the important point is that by using ADVISE, changes can be easily effected, even with
system functions where changes were not anticipated.
Conversational input
PILOT can be viewed as an interface between the user and his programs. The following somewhat oversimplied
diagram illustrates the user-PILOT program conguration:

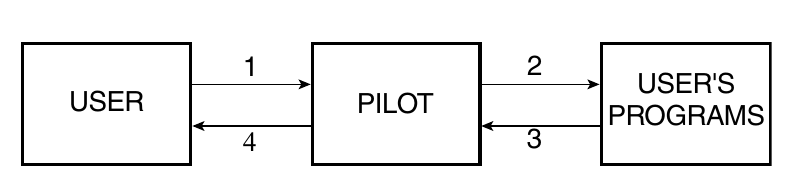

1 2
USER'S
USER PILOT PROGRAMS
4 3
Figure 1
Most of the effort in PILOT is concentrated at interface 2 and 3. However, in order to be really effective, a program-
ming laboratory should not only provide the means whereby changes can be effected immediately, but also in a way
that seems natural to the user. Accordingly, we have been experimenting with an English-to-LISP translating program
that operates at interface 1, and translates the users requests to PILOT into the appropriate LISP computation. For
example, the user could have effected the advice on RPLACA IN ALPHA shown above by:
TELL (RPLACA IN ALPHA): IF ITS FIRST ARGUMENT IS NIL THEN SET IT TO Y.
147
The following dialogue gives the flavour of user-PILOT interactions obtained with this program. User input is pre-
ceded by “>”.
PI LOT(T)
PROCEED:
>TELL PROGRESS: IF THE CANNIBALS OUTNUMBER THE MISSIONARIES ON SIDE1,
OR THE CANNIBALS OUTNUMBER THE MISSIONARIES ON SIDE2,
THEN RETURN FALSE.
*The comment feature is now a part of our system. However, it was initially introduced in precisely this way, in order to evaluate
its usefulness. Advising thus provides system designers with a quick means for trying out new features.
NATO SOFTWARE ENGINEERING CONFERENCE 1969116 7.14 TOWARD A PROGRAMMING LABORATORY
THE CANNIBALS OUTNUMBER THE MISSIONARIES ON SIDE1 ??
>THE X OUTNUMBER THE Y ON Z MEANS
Y IS CONTAINED IN Z AND THE NUMBER OF X IN Z
IS GREATER THAN THE NUMBER OF Y IN Z.
THE NUMBER OF X IN Z ??
> DEFINE NUMBER, X Y, AS PROG (N)
SET N TO O;
LP: IF Y IS EMPTY THEN RETURN N,
IF X IS EQUAL TO THE FIRST MEMBER OF Y THEN
INCREMENT N;
SET Y TO THE REST OF Y;
GO TO LP.
(NUMBER)
>THE NUMBER OF X IN Z MEANS NUMBER X Z.
I UNDERSTAND.
> CONTINUE
I UNDERSTAND.
> CONTINUE
PROGRESS
The user instructs PILOT to advise the function PROGRESS with the statement beginning “TELL PROGRESS:”.
PILOT recognizes this form of request, but does not understand the part about outnumbering. The user then attempts to
explain this with the input beginning THE X OUTNUMBER THE Y. This statement will cause an addition to PILOT’s
already fairly extensive capability for converting English statements to LISP, so that PILOT will be able to understand
expressions of this type encountered in the future. However, PILOT cannot interpret the phrase THE NUMBER OF X
IN Z in this explanation and so interrogates the user at this lower level. At this point, the user defines a new function
NUMBER and then explains the troublesome phrase in terms of this function. PILOT responds that it “understands.”
The user then instructs PILOT to continue with what it was doing, namely translating the explanation of OUTNUM-
BER. When this is completed, the user instructs PILOT to continue with the original request, which PILOT now suc-
cessfully completes.
The current English-to-LISP translator contains a large assortment of useful, if ad hoc, transformational rules written
in FLIP (see Reference 10), a string processing language embedded in the BBN LISP system. The set of FLIP rules can
be easily expanded or modified. For example, the dialogue shown above resulted in rules for transforming expression
of the form THE X OUTNUMBER THE Y ON Z and for THE NUMBER OF X IN Z being added to the translator.
In addition to the FLIP portion of the translating program, there is a post-processor which allows intermingling of
LISP expressions with the English, as well as a sort of pidgin-LISP which looks like LISP with the parentheses
removed. The translator also contains specialized information for dealing with quantifiers and and/or clauses. For
example, the following expressions will be translated correctly into the equivalent LISP forms: NO MEMBER OF X
IS ATOMIC AND NOT NULL
148
THE FIRST ELEMENT OF X IS GREATER THAN THE SECOND AND
NOT LESS THAN THE THIRD
THE FIRST ELEMENT OF SOME MEMBER OF X IS A NUMBER THAT IS
GREATER THAN THE SECOND ELEMENT
The translator also “remembers” certain contextual information such as what was the last operation requested, what
function it referred to, etc. For example:
>TELL FOO: IF ITS FIRST ARGUMENT IS ATOMIC THEN RETURN IT.
NATO SOFTWARE ENGINEERING CONFERENCE 1969 7.15 DESIGN OF HIGH RELIABILITY SYSTEMS 117
FOO
>WHAT IS ITS SECOND ARGUMENT?
Y
We are not asserting that English is a good or even desirable programming language. However, if the user is thinking
about his programs in English, then providing him the facility for expressing requests in English will allow him to
concentrate more fully on the problem at hand.
Improving PILOT
“PILOT is the result of an evolutionary process extending over more than two years. However, there is no reason to
assume that this process has terminated, nor that PILOT has reached some sort of ultimate state” (see Reference 9).
This statement was written in my Ph.D. thesis three years ago and, in the elapsed time, many of the goals established
for improvements and additions to PILOT have been realized in our present system. But the statement is still true, and
the process still continues.

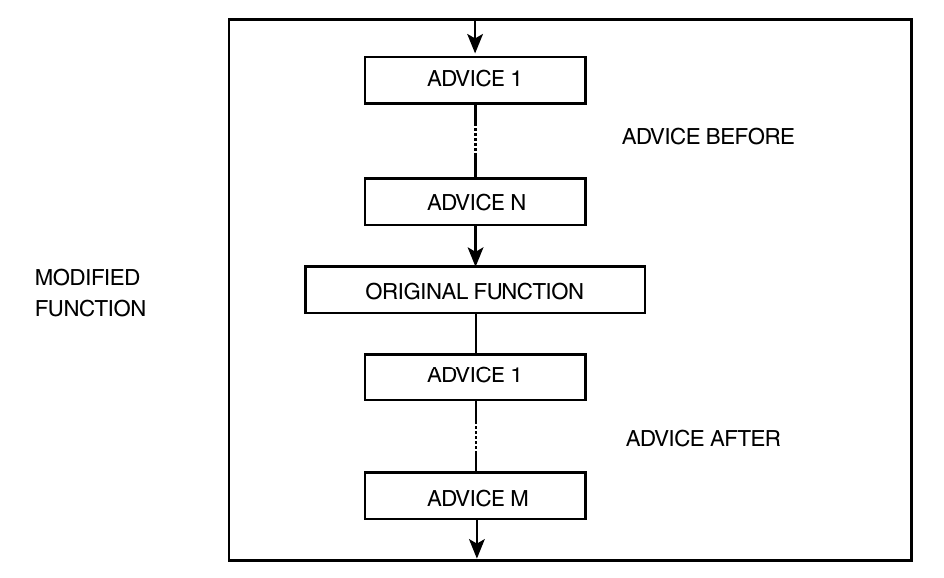

ADVICE 1
ADVICE BEFORE
ADVICE N
MODIFIED
ORIGINAL FUNCTION
FUNCTION
ADVICE 1
ADVICE AFTER
ADVICE M
Figure 2
One area of current interest is that of program-writing programs. Programming languages are currently designed to
allow the programmer to express the operations he wants the computer to perform in a simple and concise fashion.
However, often the programmer may not know precisely what operation he wants the computer to perform, although
he may have a clear idea of what he wants the program to accomplish. That is, he may be able to describe its output,
or the changes it should make in a data 149 structure. This is not to say that the programmer could not construct the
program. However, a system which could accept more goal-oriented descriptions of tasks and produce programs to
accomplish them, even if only effective for simple, subroutine-level tasks, would further free its users for high-level
operations. Such a system would require a fair degree of problem solving capability and should have a sufciently rich
store of information about programming and programs to enable it to determine similarities in tasks. It should be able
to adapt previously written or constructed programs to a new task. In other words, we are trying to construct a system
that can handle more of the routine aspects of programming in order to free the human to concern himself more with
the creative aspects of the problem.
This is the basic philosophy of the PILOT system: let the computer do it. The significance of PILOT is that it demon-
strates the feasibility and desirability of this approach. Even in its current form, PILOT clearly shows that it is possible
to get computers to participate in, and co-operate with, research efforts in programming to a much greater extent than
is now being done.
References
1. Bobrow, D. G., Murphy, D. L., and Teitelman, W. The BBN LISP System, April 1969.
NATO SOFTWARE ENGINEERING CONFERENCE 1969118 7.15 DESIGN OF HIGH RELIABILITY SYSTEMS
2. Bobrow, D. G. and Teitelman, W. Debugging in an on-line interactive LISP, November 1967. Bolt Beranek and
Newman Inc.
3. Engelman, C. “MATHLAB 68” IFIP Congress 68, pp. B91-B95.
4. Johnson, T. E. “Sketchpad III: a computer program for drawing in three dimensions,” Proc. SJCC, Spartan Press,
Baltimore, Maryland. 1963.
5. Martin, W. A. Symbolic Mathematical Laboratory, Doctoral dissertation, MIT, Cambridge, Massachusetts, January
1967 (also Report TM-36, Project MAC, MIT).
6. Maurer, W. D. “Computer experiments in finite algebra,” Comm. ACM, 9, No. 8, August 1966, pp. 589-603.
7. Reintjes, J. F. and Dertouzos, M. L. “Computer-aided design of electronic circuits,” presented at WINCON
Confer., Los Angeles, California, 2-5 February 1966.
8. Sutherland, I. E. “Sketchpad: a man-machine graphical communication system,” Proc. SJCC, Spartan Press, Bal-
timore, Maryland. 1963.
9. Teitelman, W. PILOT: a step toward man-computer symbiosis, Doctoral dissertation, MIT, Cambridge, Massachu-
setts, June 1966 (also Report TR-32, Project MAC, MIT).
10. Teitelman, W. Design and implementation of FLIP, a LISP format directed list processor; BBN Report No. 1495,
July 1967.
7.15 Design of high reliability continuous operation systems
by
W. Ulrich
Scope of problem
To serve telephone customers in switching systems being installed at a present rate of several hundred thousand lines
per year and ultimately at a rate of several million lines per year. The electronic control for these systems must be fully
operational in both software and hardware respects to be able to give any kind of service to its customers. Clearly,
therefore, there 150 is a need for a very high degree of software as well as hardware dependability.
Characteristics of ESS control program
Large
The program for the more complex ESS installations is in excess of 220,000 37-bit instructions. Probably half of these
instructions are for maintenance while the rest are for telephone operation control. A program of this size was written
by a large number of individuals with all the interface problems resulting from such a procedure.
Read only and read/write memories
The program and certain categories of very rarely changed information are stored on a read only (off-line write)
memory. A more conventional read/write memory is used for more frequently changed data and for input/output data.
Common data base
Many programs access and alter certain types of common data, including common scratch data, common switching
network control data, and constants of the office. Moreover, a single short segment of memory is devoted to each call
in progress and this segment is also accessed by many different programs.
Pointers
For reasons of efficiency, a large number of pointers are used. One of the biggest problems comes when a pointer
is inadvertently overwritten with completely different data. Such an action permits a rapid propagation of invalid
information through the read/write memory of the system and often results in the complete denial of a telephone func-
tion.
NATO SOFTWARE ENGINEERING CONFERENCE 1969 7.15 DESIGN OF HIGH RELIABILITY SYSTEMS 119
Real time problems
The program operates on two levels—an input/output level, which must keep up with the incoming customer signals,
and a base level processing the work that results from these signals. In general, the processing of a call requires a
large number of separate and separated program actions which must be separated in real time because further action
is required by the customer or by the peripheral system before work can be continued. A call may take 14 seconds of
elapsed time but require only about 35 milliseconds of active processing time.
Scheduling algorithm
Requests for work to be performed are discovered by input/output programs which place these requests in a hopper.
Periodically these hoppers are examined and, with the single exception of the service request hopper, all hoppers are
emptied completely whenever they are examined. As a means of controlling the load, no more than a fixed number
of service requests, i.e. requests for new telephone connections, are handled each time the service request hopper is
examined. This is a very convenient way of avoiding excessive overload and responds to such overload in a very good
way, i.e. by accepting only a limited amount of new business. Hoppers also provide means for differentiating high
priority work, such as effecting the transition from a ringing to a talking connection, from low priority work, such as
disconnecting a call.
151
Need for real time efciency
The system which was designed using 1960 technology components has a 5.5 microsecond memory cycle time. The
requirements of the Bell System are such that it is important that the capacity of the system be at least 60,000 calls per
busy hour and preferably considerably more. Therefore, there is a very strong need to keep down the average number
of cycles required to process each call and there is a very high payoff for a programming scheme which minimizes
this number of cycles.
Electronic memory map control of the switching network
When new paths are to be selected in the switching network, an image of the network in the read/write memory,
containing the busy/idle status of all links, is examined in order to find a new path. Thus, new paths are selected on the
basis of a memory image, not directly on the basis of the physical status of the network.
Signal processor
In larger offices, a separate signal processor controls I/O actions. This processor communicates with the central pro-
cessor via its own memory which is accessible to the central processor. It generates the same types of hopper entries
that are generated by the central processor in the interrupt level activity in smaller offices.
Types of data
Generic program
An identical program is placed in all offices of a particular class. (At present there are only five such classes.) The
program is arranged so that the variations in features, size, types of inter-office trunk circuits, layout of memory, are
handled through a different set of tables of office characteristics. The program itself is identical in its binary form.
Ofce characteristics
The tables of office characteristics define the parameters of the particular office and allow the generic program to work
properly in the equipment and telephone feature environment of that office. Some of this data is used, for example,
to initialize memory and to indicate where various blocks of memory begin and end. Most of this data remains intact
until a major addition or major new feature offering (such as a block of memory or a frame of network equipment) is
made to the office.
Customer and inter-ofce data
This data describes the numerical data of a customer, such as his telephone number and his location on the switching
network, and gives details concerning the special services which he has been offered. Inter-office data includes an
indication of which group of inter-office trunks is associated with any given office code, the method of signalling over
these trunks, the identification of all the members of given trunk groups and the network location of all these trunks.
NATO SOFTWARE ENGINEERING CONFERENCE 1969120 7.15 DESIGN OF HIGH RELIABILITY SYSTEMS
All of this data is normally kept in the read only memory; however, small portions of it may be modified on a day-to-
day basis and are periodically put into read only memory by an off-line process.
Supervisory and per call data
This data gives the busy/idle status of all customers and trunks and details of all connections that are in the talking
state.
152
Transient data
This data includes data about calls that have not yet reached the talking state, e.g. calls in the middle of dialing, and
usually requires frequent updating.
Signal processor data
This data, all of which is kept on a read/write store with appropriate back up on the read only store, consists of instruc-
tions for the signal processor and data necessary to control I/O actions.
Scratch data
Scratch data is somewhat different in this environment since it is kept separate from the program and is frequently
shared among many different programs.
Techniques for reliability
On-line checks for data consistency
Relatively little of this is done since such checks require the expenditure of a significant number of extra program
cycles and therefore reduce the capacity of the system.
Audits
Most of memory is audited as a matter of routine to check for the consistency of most of the data. In particular, point-
ers and the memory status of all customer lines and inter-office trunks are audited. Call control segments are audited
to make sure that, in case of trouble, the customers controlled by these segments can be released so that they can re-
originate their call. The network map is audited for consistency. Tables of constants, stored for efficiency in read/write
store, are checked. Signal processor data and programs are audited.
Emergency audits
When it is apparent to the system that substantial memory mutilation has taken place, a number of audits are called
in and call processing stops until these audits have been completed. These audits attempt wherever possible to retain
calls that have already been set up and restore other customers at least to a state from which they may originate new
calls and receive terminating calls.
Problems
Difculty of discovering overload and mass memory mutilation
The indication most frequently used that mass memory mutilation has occurred is the failure to complete all required
call processing work within a reasonable time. This is also the characteristic of heavy overload. We have found it dif-
ficult to distinguish between the two.
Escalation of emergency audits
When emergency audits are called, they are called in phases such that each audit takes progressively more drastic steps
to remove the source of the memory mutilation. We have had problems in which the first phase of the emergency audit
should have cleared up the problem but created further symptoms of overload or trouble such that subsequent phases
were automatically initiated even though the cause of the memory mutilation had 153 already been cleared up. The
nal phase, which includes network initialization, is one we particularly try to avoid.
NATO SOFTWARE ENGINEERING CONFERENCE 1969 121
Recovery from emergency audit
The emergency audit leaves the system in a state resembling that of a crash overload since a number of customers have
been disconnected and are trying to re-originate and traffic has been blocked out during the audit. Originations can be
admitted slowly but there is more difficulty in limiting the response to seizures from inter-office trunks that have calls
destined for this office dialled by customers in another office.
Manual interference
The single biggest source of problems, as might be expected, has been improper actions by maintenance craftsmen
that cause the system to perform emergency audits. Furthermore, it is difficult for the craftsman to get experience so
that he can make a good judgment of whether or not to advance to a particular phase and how long he should wait for
the system to try to straighten out the problem automatically.
Overloaded ofces
There has been a strong temptation on the part of many telephone operating companies to apply more load to the
office than it is capable of handling. Under these circumstances, because of the sensitivity of the system to overload,
emergency audits are performed more frequently and recovery following an emergency audit takes longer.
Memory protection
No memory protection exists in the system and therefore the propagation of poor data arising from incorrect pointers
cannot be readily controlled except where out-of-range addresses are generated.
Results
Unsatisfactory ofces
A small number (in the order of 20 per cent) of the offices have had a significant number of emergency audits for
some weeks after they were cut over to service. In some cases, as many as a dozen separate occasions occurred during
the first month of service; however, all of these offices, including those in which too much load was applied, have
performed well after an initial bad period of as much as one week and a subsequent period of one or two months
that was less than satisfactory. In most cases the unsatisfactory offices presented some new characteristics of load
that could not be adequately simulated in the laboratory. The unsatisfactory offices are primarily offices with signal
processors that have a larger load and more complex interfaces than the offices with no signal processor and whose
programs are newer and therefore less thoroughly shaken down.
Satisfactory ofces
The large bulk of the offices installed have an emergency audit rate of about one or two per year after the first three
or four months. It is hoped that this number will decrease with time but we must recognize that new features are
constantly being added to the program so that the program is not necessarily monotonically approaching the perfectly
debugged stage.
NATO SOFTWARE ENGINEERING CONFERENCE 1969122 APPENDIX 1
APPENDIX 1
Participants in NATO Conference
on Techniques in Software Engineering,
Rome, 27th to 31st October 1969
Chairman: Professor P. ERCOLI,
Facolta di ingegneria, Prof. J. N. BUXTON,
Via Eudossiana 18, School of Computer Science,
I-00184 Rome, Italy. University of Warwick,
Coventry, CV4 7AL, England.
Co-Chairman: Prof. Dr. F. L. BAUER,
Mathematisches Institut der Technischen Hochschule, Mr. A. CARACCIOLO DI FORINO,
D-8 München 2, IEI-CNR,
Arcisstraße 21, Germany. Via S. Maria 46,
I-56100 Pisa, Italy.
Mr. J. D. ARON,
IBM Corporation, Mr. C. T. CLINGEN,
18100 Frederick Pike, General Electric Company,
Gaithersburg, Maryland 20760, USA. Cambridge Information Systems Laboratory,
575 Technology Square,
Prof. R. S. BARTON, Cambridge, Massachusetts 02139, USA.
Computer Science,
Merrill Engineering Building, Dr. E. E. DAVID, Jr.,
University of Utah, Bell Telephone Laboratories, Inc.,
Salt Lake City, Utah, USA. Murray Hill, New Jersey 07974, USA.
Dr. R. BAYER, Prof. Dr. E. W. DIJKSTRA,
Boeing Scientic Research Laboratories, Department of Mathematics,
P.O. Box 3981, Technological University,
Seattle, Washington 98124, USA. Postbox 513,
Eindhoven, The Netherlands.
Mr. R. W. BEMER,
General Electric Company, Dr. H. DONNER,
Information Systems Group, Siemens AG, Dv T SIP
13430 Black Canyon Highway, M-2, D-8000 München 25,
Phoenix, Arizona 85029, USA. Hofmannstraße 51, Germany.
Prof. L. BOLLIET, Dr. K. EBBINGHAUS,
IMAG, IBM Laboratories,
CEDEX 53, Dept. 767,
F-38 Grenoble, Gare, France. D-703 Böblingen,
Schönaicher First 10, Germany.
Mr. P. BRINCH HANSEN,
A/S Regnecentralen, Dr. M. ENGELI,
Falkoneralle 1, FIDES Trenhand-Vereinigung,
DK-2000 Copenhagen F. Bleicherweg 33,
Denmark. CH-8002 Zurich, Switzerland.
Mr. H. M. BROWN, Mr. A. D. FALKOFF,
IBM UK Laboratories, IBM Scientic Center,
Hursley, Winchester, England. T. J. Watson Research Center,
P.O. Box 218,
Dr. W. S. BROWN, Yorktown Heights, New York 10598, USA.
Bell Telephone Laboratories, Inc.,
Murray Hill, New Jersey 07974, USA. Prof. J. A. FELDMAN,
Computer Science Department,
Mr. P. BURKINSHAW, Stanford University,
ICL, Stanford, California 94305, USA.
Brandon House,
Broadway, Prof. R. W. FLOYD,
Bracknel1, Berks., England. Computer Science Department,
NATO SOFTWARE ENGINEERING CONFERENCE 1969 APPENDIX 1 123
Stanford University, Dr. B. W. LAMPSON,
Stanford, California 94305, USA. Department of Computer Science,
University of California,
Prof. B. A. GALLER, Berkeley, California 94720, USA.
Computing Center,
1000 North University Building, Mr. C. A. LANG,
University of Michigan, Ann Arbor, Michigan 48104, USA. University Mathematical Laboratory,
Corn Exchange Street,
Dr. G. GOOS, Cambridge, England.
Rechenzentrum,
Technische Hochschule, Dr. A. LEMMA,
D-8 München 2, Selenia s.p.a.,
Arcisstraße 21, Germany. Via Tiburtina Km. 12,400,
Rome, Italy.
Prof. C. C. GOTLIEB,
Institute of Computer Science, Mr. E. S. LOWRY,
Sandford Fleming Building, IBM Corporation,
University of Toronto, Systems Development Division,
Toronto, Ontario, Canada. Building 706, Department D76,
Poughkeepsie, New York 12602, USA.
Prof. J. W. GRAHAM,
University of Waterloo, Dipl. ing. P. LUCAS,
Department of Computer Science, IBM Laboratory,
Waterloo, Ontario, Canada. Parkring 10,
Vienna 4, Austria.
Dr. H. J. HELMS,
Northern Europe University Computing Center, Dr. R. M. McCLURE,
Technical University of Denmark, 3741 Alta Vista Lane,
DK-2800 Lyngby, Denmark. Dallas, Texas 75229, USA.
Prof. C. A. R. HOARE, Mr. J. M. MacGOWAN, Jr.,
Department of Computer Science, UNIVAC Data Processing Division,
Queens University, 2276 Highcrest Drive,
Belfast, BT7 INN, Northern Ireland. Roseville, Minnesota 55113, USA.
Dr. F. HOFMANN, Dr. R. M. NEEDHAM,
Siemens AG, E54, University Mathematical Laboratory,
D-852 Erlangen, Corn Exchange Street,
Günther-Scharowsky-Straße, Germany. Cambridge, CB3 2SG, England.
Mr. M. E. HOPKINS, Mr. M. D. OESTREICHER,
IBM Corporation, Computer Analysts and Programmers Ltd.,
T. J. Watson Research Center, CAP House,
P.O. Box 218, 14/15 Great James Street,
Yorktown Heights, New York 10598, USA. London, W.C.1, England.
Mr. M. ITALIANI, Prof. A. J. PERLIS,
Syntax, Department of Computer Science,
Via Camperio 3, Carnegie Mellon University,
Milan, Italy. Pittsburgh, Pennsylvania 15217, USA.
Dr. H. KANNER, Prof. B. RANDELL,
Technology Development Department, The Computing Laboratory,
Control Data Corporation, University of Newcastle upon Tyne,
3145 Porter Drive, Claremont Tower,
Palo Alto, California 94304, USA. Claremont Road,
Newcastle upon Tyne, NE1 7RU, England.
Mr. P. M. KJELDAAS,
Kjeller Computer Installation, Dr. J. C. REYNOLDS,
P.O. Box 70, N-2007 Kjeller, Norway. Applied Mathematics Division,
Argonne National Laboratory,
Dr. K. LAGALLY, Argonne, Illinois 60439, USA.
Rechenzentrum,
Technische Hochschule, Mr. D. T. ROSS,
D-8 München 2, SofTech, Inc.,
Arcisstraße 21, Germany. 391 Totten Pond Road,
Waltham, Massachusetts 02154, USA.
NATO SOFTWARE ENGINEERING CONFERENCE 1969124 APPENDIX 1
Dr. HANS-W. WIPPERMANN,
Mr. J. P. ROSSIENSKY, D-7500 Karlsruhe,
Compagnie Internationale pour l’lnformatique, Rechenzentrum der Universität,
Les Clayes/Bois 78, France. Englerstr. 2, Germany.
Mr. C. A. SCALZI, Prof. N. WIRTH,
IBM Corporation, Eidg. Technische Hochschule,
Building 705, Fachgruppe Computer-Wissenschaften,
Poughkeepsie, New York, 12602, USA. Leonhardstr. 33,
CH-8006 Zurich, Switzerland.
Dr. H. SCHORR,
IBM Corporation, Mr. M. WOODGER,
T. J. Watson Research Center, Ministry of Technology,
P.O. Box 218, National Physical Laboratory,
Yorktown Heights, New York 10598, USA. Division of Computer Science,
Teddington, Middlesex, England.
Mr. J. 1. SCHWARTZ,
c/o King Resources, Scientic Secretaries:
12011 San Vicente Blvd.,
Los Angeles, California 90049, USA. Mr. R. ELLIS,
ICL,
Dr. G. SEEGMÜLLER, 30-31 Friar Street,
IBM Laboratories, Reading, RG1 lDX, England.
Dept. 770,
D-703 Böblingen, Mr. I. HUGO,
Schönaicher First 10, Germany. Infotech Ltd.,
Nicholson House,
Mr. I. P. SHARP, High Street,
P.O. Box 71, Maidenhead, Berkshire, England.
Toronto-Dominion Centre,
Toronto 111, Canada. Observers:
Mr. T. H. SIMPSON, Mr. P. H. KENNEY,
IBM Corporation, DACOS,
11141 Georgia Avenue, ADP Division,
Wheaton, Maryland 20902, USA. SHAPE,
B-7010, Belgium.
Mr. C. STRACHEY,
Oxford University Computing Laboratory, Mr. L. CARIOU,
45 Banbury Road, Chef du Service Etudes Informatiques,
Oxford, England. Compagnie d’Etudes et de Realisations de Cybernetique Industrielle,
22 rue de Charonne,
Dr. W. TEITELMAN, Paris l1e., France.
Bolt, Beranek and Newman, Inc.,
50 Moulton Street, Dr. H. HAILER,
Cambridge, Massachusetts, USA. Deutsche Forschungsgemeinschaft,
D-53 Bonn-Bad Godesberg,
Dr. W. ULRICH, Kennedy-Allee 40, Germany.
Bell Telephone Laboratories Inc.,
Room 2C-235, Dr. H. VON ISSENDORFF,
Naperville, Illinois 60540, USA. Forschungsinst. f. Funk u. Mathematik,
Werthoven,
Prof. dr. ir. W. L. VAN DER POEL, Königstraße 2, Germany.
Delft University of Technology,
Department of Mathematics, Dr. J. KONTOS,
132 Julianalaan, Electronic Computers Division,
Delft, The Netherlands. Greek Atomic Energy Commission,
NRC “Democritus”,
Mr. S. WARSHALL, Athens, Greece.
Applied Data Research,
450 Seventh Avenue, Col. A. MPATIS,
New York, New York 10001, USA Operational Research Division,
Hellenic Armed Forces Command,
Dr. H. R. WIEHLE, Athens, Greece.
c/o AEG/Telefunken,
D-775 Konstanz, Postfach 154, Germany. Ten.Col. M. CARLA,
Istituto Geograco Militar Italiano,
NATO SOFTWARE ENGINEERING CONFERENCE 1969 125
Via Cesare Battisti 8,
Firenze, Italy.
Lt.Cdr. G. FALCIAI,
Maricensadoc Maristat,
Rome, Italy.
Dr. M. M. PACELLI,
Italsiel,
Via Abruzzi 3,
Rome, Italy.
Mr. G. M. PALERMO,
Italsiel,
Via Abruzzi 3,
Rome, Italy.
Dr. E. ROSSI,
Selenia,
Via Tiburtina Km. 12,4,
Rome, Italy.
Mr. W. LIMBURG,
Laboratory for Electronic Development of the Armed Forces,
Haarlemmerstraatweg 7,
Oegstgeest,
The Netherlands.
Dr. P. C. POOLE,
UKAEA Establishment,
Culham Laboratory,
Abingdon, Berks., England.
Secretaries:
Miss E. I. AUSTIN,
Scientic Affairs Division
NATO,
Brussels 39, Belgium.
Miss M. CHAMBERLIN,
Room S 106,
St. Clements Building,
London School of Economics,
Houghton Street,
Aldwych,
London, W.C.2, England.
Miss A. LAYBOURN,
The Computing Laboratory,
University of Newcastle upon Tyne,
Claremont Tower,
Claremont Road,
Newcastle upon Tyne, NE1 7RU, England.
Scientic Affairs Division:
Prof. G. RANDERS,
Assistant Secretary General for Scientic Affairs.
Dr. H. ARNTH-JENSEN,
Head of Operations.
Mr. F. M. BLAKE,
Consultant on Computer Science.
NATO SOFTWARE ENGINEERING CONFERENCE 1969126
APPENDIX 2
Addresses of Welcome
Translation of the telegram from Senator G. Bo, Italian Minister for Coordination of Scientic and Technological
Research.
To Prof. P. Ercoli, Chairman of NATO Conference on Techniques in Software Engineering.
Thank you for your kind invitation to the Conference on Techniques on Software Engineering to be held in Rome
from 27 to 31 October. Please convey to the participants my most cordial welcome and good wishes. I am sure that the
work of such outstanding personalities of the scientific world gathered together in Rome will lead to valuable results
in this field which is of the greatest importance for scientific research and technological progress.
Bo, Minister of Scientific Research.
Translation of the telegram from Prof. L Dadda, President of the Italian Computer Society (AICA).
To Prof. Ercoli, Chairman of NATO Conference on Techniques in Software Engineering.
On the occasion of the opening of the Conference on Techniques in Software Engineering may I ask you to extend
a hearty welcome to all participants and wish them a pleasant stay and a stimulating exchange of ideas in this most
important field of engineering.
Dadda, President of the Italian Computer Society.
NATO SOFTWARE ENGINEERING CONFERENCE 1969 127
CONTRIBUTOR INDEX
The index gives the page number of the named quotations, and in bold face, of papers reproduced in full in section 7.
The page number within square brackets indicates where the full name and address of the contributor is given.
Aron 11, 23, 43, 46, 47, 50, 52, 53, 59, 63, 68, 113, [154] Lucas 16, 21, 22, [156]
Bauer 22, 62, [154] McClure 63, [156]
Bayer 26, 36, 38, [154] MacGowan 52,106, [156]
Bemer 22, 30, [154] Needham 11, 24, 63, 111, 113, [156]
Brown, H. M. 53, 58, [154] Oestreicher 15, 23, 58, 64, [156]
Brown, W. S. 23, 29, 31, 33, 46, 80, [154] Perlis 17, 21, 22, 24, 25, 28–30, 32, 33, 52, 61, 62, 65, [156]
Burkinshaw 24, [154] Poole 33, [158]
Buxton 19, 33, 52, 53, [154] Randell 13, 17, 22, 27, 48, [156]
David 12, [154] Reynolds 22, 29, [156]
Dijkstra 13, 18, 21, 22, 23, 28, 30, 64, 84, [154] Ross 11, 24, 26, 29, 31, 33, 46, 62, [156]
Engeli 15, [155] Scalzi 15, 52, 58, [156]
Ercoli 27, 64, [154] Schorr 20, 26, 27, 37, 46, 47, 50, 66, 114, [156]
Falkoff 17, 18, 22, 47, 53, 63, 66, 88, [155] Schwartz 17, 41,122, [156]
Feldman 12, 16, 18, 21, 29, 33, 62, [155] Seegmüller 15,16, [156]
Galler 12, 22, 24, 26, 62, [155] Sharp 12, 27, [156]
Gotlieb 26, 66, 93, [155] Strachey 9, 29, 32, 65, [156]
Haller 47, [157] Teitelman 24, 25, 26, 64, 137, [156]
Hoare 21, 49, 53, [155] Thompson 46, [157]
Hopkins 20, 23, 39, 99, [155] Ulrich 12, 48, 49, 53,149, [157]
Kanner 60, [155] Warshall 34, 36, 37, [157]
Lampson 18, 23, 31, 38, 66, [155] Wirth 17, 18, 20, 24, [157]
Lang 18, 23, 46, 101, [155] Woodger 65, 66, [157]
Llewellyn 22, [156]
Lowry 16, 25, [156]
NATO SOFTWARE ENGINEERING CONFERENCE 1969128 SUBJECT INDEX
SUBJECT INDEX
This subject index is known to be decient in many respects, and it is meant merely as a supplement to the detailed
list of contents on pages 3 and 4.
Abstract data structures 86 COMMON 31
Abstract machine 15 Communication Pool 135
Acceptance 47 Communist 17
ACM SIGOPS 26 Compiler 81, 99, 114, 122
Activity networks 78 Compiler-compiler 101
Ad hoc techniques 115 Complexity 100
AED-O 29, 33, 103 Computation time clock 26
Aesthetic criteria 90 Computer Aided Design Project 29
Aircraft surveillance 41 Computer Learning and Systems Corporation 94
Airline reservations systems 122 Computer program acquisition 129
ALGOL 60 16, 24, 29, 80, 86, 101, 103, 134 Computer Program Contract End Item 129
ALGOL 68 22, 80 Computing Reviews 61
Algorithmic approach 132 Computing Science 9, 65, 113
ALTRAN-F 80 Confidence level 84
Analytical model 94 Context free syntax 90
APL 16, 18, 25, 66, 88 Continuous operation system 149
Apollo 43 Conversational technique 24
Applied computer science 62 Core dump 23
Archaeological record 100 Coupling 30
Army of ants 50 Creativity 130
Artificial Intelligence 16, 61 Critical module 29
Assembly language 101, 102 CTSS 42
Asynchronous process 36 Curtain cleaner 41
Audit 1 52 Customer relations 51
Automata theory 61
Automated analysis 25 Data approach 134
Data collection software 107
Bandwagon 60 Data consistency 152
Bar chart 78 Data definition 135
BASIC 62 Data Flow Specification 17
BBN LISP 137 Data-independent programming language 42
BCPL 29, 103 Data representation 29
Binary patch 112 Debugging 23, 117
Binding 100 Debugging time 46
Bolt, Beranek and Newman Inc. 139 Debugging tool 110
Bootstrapping 29, 31 Decision postponement 37
Break 142 Decompilation 25, 36
Bug rate 20 Decouple 25
Burroughs 10, 24 Deformable 36
Business management system 123 Demonstration Project 10
Disease structure 64
Cape Kennedy 43 Doctors of engineering 64
CASE 94 Documentation 21, 42, 80, 88, 118, 130
CASTER 54 Downtime objective 48
Catholic 17
CDC 6400/6600 82 Electric toothbrush 24
Centralized data maintenance 42 Encyclopaedia 66
Chairman of the Board 49 Envelope 38
Channel utilization 107 Environmental description 25
Chinese Army approach 88 Environmental specif ication 29
CLEAR 53, 54, 59, 60 EPL 103
CLEAR-CASTER 54, 58, 59 Error diagnostic 117
Closure 30 ESS 1 50
COBOL 11,17, 30, 77, 80, 101, 116, 122, 134 EULER 18
COBOL F compiler 116 Exec 8 52
CODASYL 30 Exhaustive testing 21
Code economization 18
Code generation 115 Fallback 11 2
Command and Control 134 Fence building 100
NATO SOFTWARE ENGINEERING CONFERENCE 1969 SUBJECT INDEX 129
File maintenance 111 Malfunction 11
FLIP 147 Management science 62
Formal design language 88 Manned Space Flight Centre 43
FORTRAN 10, 22, 25, 29, 30, 31, 36, 44, 52, 77, 80, Mathematical analysis 47
101, 116, 134 Mathematical engineer 64
FORTRAN D compiler 117 McG 101
FORTRAN E compiler 116 Medical School 63
FORTRAN G compiler 116 Memory mutilation 48
FORTRAN H compiler 116 Mercury 44
FORTRAN laundry 37 Methodology 123
Functional specification 68 Milestone schedule 131
Fundamental concept 65 Mission simulation 45
MIT 28, 29, 42, 128
Gathering 31 Mixed language system 105
GE 625/635 82 Modelling 93
Gemini 44 Modelling technique 45
Generalized Programming 31 Module 23, 24, 38, 45, 53, 87
Global optimization 40 MOL/940 18,103
Gödel numbering system 35 Multi-access system 101
GPSS 94 MULTICS 12, 42
Multiprocessor interlocking 52
Half-bootstrapping 29 Multiprocessor system 108
Hardware dependability 150
Hardware design 65 NASA 43
Hardware monitor 26, 94, 107 NATO Summer School 49
Hierarchical structure 11 Necklace 87
High-level language 74, 102 NELIAC 117
Holt, A. W. 31 New York City 51
Houston 43 Non-programmer 124
Non-standard interface 39
IBM 20, 21, 27, 45, 53, 80, 116 Numerical analysis 61
IBM Federal Systems Division 69
IBM S/360 12, 32, 39, 44, 82, 90 Octal dump 112
IBM 704 44 Off-line debugging 24
IBM 7090 39 Onion shaped 28
IBM 7094 45 On-line debugging 24, 102
ILLIAC IV 27, 32 Operating system 81, 99, 101, 107, 111
Iliffe, J. K. 24 Operations research 62
Inductive proof 21 Optimization 115
Informatik 62 Optimization technique 16
Intelligent ignoramus 24 Optimizing compiler 100
Interface 118 Orbit determination system 50
Ivory towers 33 OS/360 12, 15, 20, 39, 44, 51, 52, 58, 64, 99
Ossification 61
JCL 51, 52, 54 Oxford 29
Jet Propulsion Laboratories 43
Job mix 110 Panmunjon 14
Job scheduler 99 Parkinsonian slope 53
Job shop scheduling 94 PASCAL 20
JOVIAL 17, 134 Pathology 64
PDP10 32
KDF9 29 Pearl 87
Knuth, D. E. 66 Performance monitoring 93
PERT 45, 78, 131
Language design 1 9 Ph.D. programs 61
Library control system 59 Pidgin English 50
Linkage editor 51 PILOT 137
Linking loader 30 Pilot Plant 10
LISP 80,101.137 Pipelining 37
Logistics 99 PL/1 16, 21, 25, 50, 77, 80, 101, 117, 134
Loop flattening 37 PL/360 18.103
Loop summarization 109 Pointer 49
Portability 28
M6 82 Portable software 31
Macbeth 23 Poughkeepsie 59
Macro 29, 82 Predicate 21
Maintenance 11 8 Primitive 29, 82, 117
NATO SOFTWARE ENGINEERING CONFERENCE 1969130
Problem oriented language 80 Street-car conductor 41
Process description 16 Super programmer 50
Product test 21 Supervisory personnel 46
Professional standards 32 Support 30
Program complexity 21 Support software 33, 111
Program correctness 84 Support system 15, 42, 51
Program Logic Manual 99 Support tool 131
Program module 15 Switching system 149
Program reliability 47 System architect 70
Program testing 85 System checkout tool 135
Program verification 21 System crash 113
Programmer productivity 72 System generation routine 52
Programming laboratory 137 System overhead 107
Programming Project Management Course 69 System performance 106
Programming systems management 52 System programming tool 60
Proofs of equivalence 89 System test 77
Protection ring 28 System testing 46, 123
Pun 32 System test tool 134
Puritans 49
Technical writer 56
Real time clock 26 Technology transfer 13
Real time simulation 47 Telephone central office 49
Real time system 44 Test case 21
Recursion 9 Testing 23
Register allocation 116 Testing by sampling 21
Release 20 Test specification 42, 132
Representational commitment 34 TEXT/360 58
Reprogramming 42 Text book 65
Resource estimating 71 Time sharing system 42, 94, 124
RTOS 44 Top-down approach 130
Run-time system 102 Transferability 117
Translator writing system 114
S3 94 Tranportability of data 29
SABRE 39 Turanski. W. J. 31
SABRE PL/1 39
SAGE 41, 122 Undertaker 41
SAL 103 Units of work 73
Scaffolding 116 UNIVAC 1108 82, 106
Schedule 124 U.S. Air Force 41, 129
Schedule control procedure 45 U.S. Air Force 375 Management concepts 129
Scheduling 116 U.S. Department of Defense 129
School teacher 41
Second Conference on Applications of Simulation 94 Vanguard 43
Semantics 89 Vienna definition method 15, 21
Shakespeare 23
Sheriff 40 Warm start mechanism 113
Sift 37 T. J. Watson Research Center 101
Side effect 23 Worst Case approach 22
SIMSCRIPT 94
SIMULA 17
Simulation 106
Snapshot 23, 25
SNOBOL 80
Software architecture 12
Software dependability 150
Software engineer 111
Software engineering 61, 114
Software engineering tool 60
Software instrumentation 107
Software monitor 94
Software performance 109
Software specification language 15
Source text 111
Specification 44, 123
State description 16
Statistics gathering system 45
NATO SOFTWARE ENGINEERING CONFERENCE 1969
